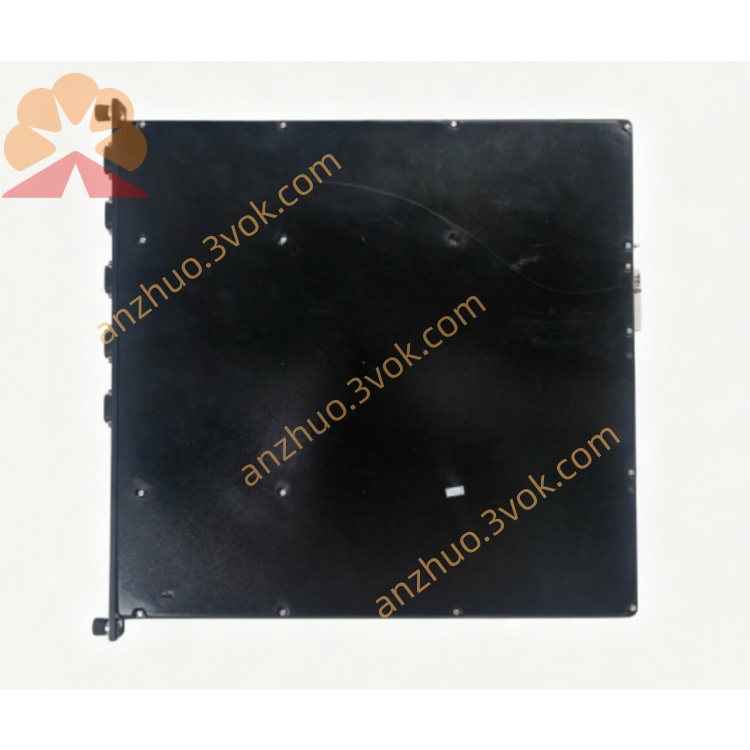

TRICONEX 4119 / 4119A Enhanced Intelligent Communication Module

TRICONEX 4119 and upgraded 4119A are Enhanced Intelligent Communication Modules, abbreviated EICM, belonging to the Tricon TMR triple modular redundant safety instrument system product line under Schneider Electric. They serve as multi-channel serial communication expansion gateways for Tricon safety racks, responsible for bidirectional data interaction between Tricon main processors and external serial industrial equipment. The base model 4119 is the original standard EICM with basic serial transmission capacity; 4119A is the fully upgraded enhanced version with reinforced port isolation, expanded fault diagnosis storage, optimized anti-interference circuits and standardized unified port layout, becoming the mainstream replacement model for engineering projects. Both modules adopt full triple redundant internal communication circuit architecture to eliminate single-point communication failure risks in SIL 3 safety loops. They integrate multi-standard serial interfaces, dedicated printer parallel port, complete electrical isolation and full-link self-diagnosis functions, and cannot support online hot-swap operation, requiring rack power-off for disassembly and replacement. The modules run stably 24/7 in wide-temperature, high-vibration and strong electromagnetic interference industrial environments, and support docking with HMI, third-party PLC, serial printers, sequence-of-event recorders and remote monitoring terminals without occupying network communication module resources.

Description


1. Product Introduction

The base model 4119 is the original standard EICM with basic serial transmission capacity; 4119A is the fully upgraded enhanced version with reinforced port isolation, expanded fault diagnosis storage, optimized anti-interference circuits and standardized unified port layout, becoming the mainstream replacement model for engineering projects. Both modules adopt full triple redundant internal communication circuit architecture to eliminate single-point communication failure risks in SIL 3 safety loops. They integrate multi-standard serial interfaces, dedicated printer parallel port, complete electrical isolation and full-link self-diagnosis functions, and cannot support online hot-swap operation, requiring rack power-off for disassembly and replacement. The modules run stably 24/7 in wide-temperature, high-vibration and strong electromagnetic interference industrial environments, and support docking with HMI, third-party PLC, serial printers, sequence-of-event recorders and remote monitoring terminals without occupying network communication module resources.

2. Model Definition Explanation

The complete model TRICONEX 4119 / 4119A consists of brand identifier, core function coding and version suffix marking:

Prefix TRICONEX: Brand identity, representing Tricon TMR safety control hardware series, separated from general non-safety control modules of other product lines.
Four-digit core number 4119: Internal hardware classification coding of rack-mounted serial communication expansion modules. The first digit "4" stands for auxiliary serial communication interface category; the middle digit "1" marks multi-channel serial signal processing circuit layout; the last two digits "19" represent EICM intelligent serial gateway base hardware platform.
Letter suffix "A": Distinguishes upgraded enhanced version from original base version 4119. The 4119A optimizes isolation withstand voltage, baud rate compatibility and fault log storage capacity, unifies front panel indicator definition and adds intrinsic safety matching circuit design compared with 4119.
Optional configuration suffixes attached after the model number:

No extra suffix: Standard control room cabinet version, suitable for non-hazardous indoor installation.
-E: Full English firmware variant, all front panel alarm prompts, diagnostic codes and parameter menus displayed in English for overseas international projects.
-IS: Intrinsically safe enhanced variant with reinforced port isolation barriers, applicable to Class I hazardous area control cabinet installation.
-HT: High-temperature extended operating variant, expanding stable operating upper temperature limit to +70°C.

3. Technical Specifications

Electrical Performance

The modules draw 24VDC operating power from Tricon rack backplane, rated power consumption controlled below 5W, normal input voltage range 20VDC to 30VDC. The upgraded 4119A supports 500VDC galvanic isolation between each external communication port and internal TMR safety circuits, while the original 4119 carries 300VDC isolation withstand voltage. Both versions integrate four configurable multi-standard serial ports and one isolated Centronics parallel printer port. Serial ports support switchable RS232, RS422 and RS485 signal modes, with adjustable baud rates covering 1200bps, 2400bps, 9600bps and 19200bps. Internal three redundant backplane channels synchronously transmit safety variable data, full channel data refresh cycle controlled within 25ms, each communication frame carries independent millisecond timestamp to guarantee SOE recording precision. Every serial channel is equipped with independent overcurrent and short-circuit protection; single-port wiring fault only cuts off signal transmission of the corresponding channel without interfering with other serial ports and main system safety logic operation.

Functional Safety & Reliability Index

Both 4119 and 4119A fully comply with IEC 61508 SIL 3 and IEC 61511 process safety standards, and have passed UL, CE and ATEX industrial safety certifications. Three internal redundant communication circuits execute two-out-of-three hardware voting logic; distorted or abnormal serial data generated by any single redundant channel will be automatically filtered to avoid false interlock triggering caused by external serial equipment signal anomalies. Hardware mean time to safe failure of 4119 exceeds 280,000 hours, and the upgraded 4119A reaches 330,000 hours; mean time to repair is controlled within 30 minutes due to mandatory rack power-off replacement requirements. The two modules have complete single-fault masking capability; disconnection of partial serial ports or damage to one internal redundant circuit will not cause overall communication function failure of the module. All fault alarm records are latched and stored in non-volatile memory, and the 4119A expands log storage capacity to support longer-term safety audit data retention.

Environmental & Mechanical Parameters

Standard model operating ambient temperature range covers -40°C to +65°C; HT high-temperature variant extends upper limit to +70°C. Storage temperature range for spare modules spans -40°C to +85°C, suitable for long-term warehouse storage. Tolerable relative humidity ranges from 5% to 95% without condensation. Both versions pass complete industrial EMC anti-interference tests including electrostatic discharge, radiated radio frequency interference, surge impact and fast transient pulse interference. Designed for standard horizontal single-slot installation of Tricon safety I/O rack, no forced air cooling required under full rated load. Mechanical vibration resistance meets offshore oil platform, petrochemical plant and thermal power plant industrial standards; long-term low-frequency continuous vibration will not lead to serial communication packet loss, signal distortion or port link disconnection.

4. Interface and Communication Configuration

Hardware Interface Layout

Each module integrates two categories of independent hardware interfaces: rear internal backplane system interface and front external communication wiring interface.

The rear gold finger dedicated connector is the proprietary Tricon TMR backplane bus interface, responsible for redundant power supply access, three-way isolated data exchange between the module and three redundant main CPU boards, and real-time uploading of hardware fault signals to the rack mainframe.

The front panel of both models is equipped with four groups of screw-type serial terminal blocks, one Centronics parallel printer port, and multi-color LED diagnostic indicator lights. Indicators separately display module overall normal PASS status, global hardware FAULT alarm, independent TX transmit and RX receive signal lights for each serial port, supporting quick on-site visual inspection. The 4119A optimizes terminal block wiring spacing and adds dust-proof baffles for ports compared with the original 4119. All serial wiring terminals support compression connection of shielded twisted-pair cables, and the parallel printer port is dedicated to hard-copy alarm and report output only.

Internal Backplane Communication Mechanism

Data interaction between 4119/4119A and triple redundant main processors relies on three completely isolated proprietary high-speed backplane buses, corresponding one-to-one with the three internal communication circuits of the module. Each redundant bus independently transmits safety interlock logic states, real-time process variables, serial communication mapping parameters and channel fault diagnostic information from each CPU to the EICM module. Before forwarding data to external serial equipment, the module executes two-out-of-three hardware voting on three groups of synchronous data to eliminate data inconsistency caused by single CPU deviation. Faults such as backplane link disconnection, communication timeout and data parity errors will trigger the front panel fault light and upload detailed fault codes to TriStation configuration software and central HMI.

External Serial Communication Protocol Support

The modules do not carry Ethernet or fiber optical ports, and all external data exchange relies on four configurable serial channels and one parallel printer channel. Supported mainstream serial communication protocols include Modbus RTU, Modbus ASCII, exclusive Tricon TriStation serial protocol, and general industrial terminal communication protocol. Multiple independent serial channels can operate in parallel with different baud rates and signal modes simultaneously, realizing simultaneous docking with multiple types of external serial equipment. The parallel Centronics port only supports text printing of system alarm logs, event records and parameter reports, without bidirectional data input function. All serial port working modes, baud rate settings, Modbus variable mapping tables and fault threshold parameters are downloaded and stored in the redundant memory of Tricon main processors, and automatically synchronized to the EICM module after rack power restart.

5. Core Functions

Multi-Channel Redundant Serial Data Forwarding
Three internal redundant communication circuits run synchronously to forward bidirectional safety data between Tricon mainframe and multiple external serial devices. The two-out-of-three voting mechanism automatically rejects abnormal serial signals caused by long cable interference, terminal wiring looseness or single internal circuit failure, avoiding false emergency shutdown triggered by distorted external equipment signals. Fault or disconnection of a single serial port only affects the corresponding connected device, and other serial channels maintain full-load normal data transmission without loss of critical safety interlock signals. The upgraded 4119A improves signal filtering algorithms to reduce packet loss probability under strong electromagnetic interference.
Multi-Mode Serial Interface Adaptive Conversion
Four serial ports support free switching among RS232, RS422 and RS485 signal levels through TriStation configuration software, eliminating the need for additional external signal converters. Users can independently set transmission baud rate, parity check bit and data bit length for each channel to match different brand HMI, PLC and serial recorder equipment. Built-in signal conditioning circuits compensate attenuation of long-distance shielded twisted-pair cables, ensuring consistent communication accuracy of serial signals within 1000-meter transmission range.
Full-Link Serial Channel Comprehensive Self-Diagnosis
Continuous background diagnosis covers all communication links: connection status of three-way redundant backplane buses, damage of internal serial processing chips, serial cable open circuit and short circuit, external serial equipment offline, signal overvoltage, port isolation barrier breakdown and terminal block wiring looseness. All detected faults trigger the front panel red fault indicator alarm, and upload fault location, occurrence timestamp and detailed fault codes to the system monitoring platform. Single serial channel fault will not stop the overall communication function of the module, and the 4119A stores more historical fault records for factory safety compliance audit.
Isolated Parallel Port Alarm Hard-Copy Printing
The independent galvanically isolated Centronics parallel port supports direct connection to industrial serial printers, realizing automatic printing of real-time safety alarms, sequence-of-event records, module fault logs and system parameter reports. Printing tasks do not occupy serial channel bandwidth, and electrical isolation design prevents printer power supply surge from interfering with safety loop serial communication signals. Printing trigger conditions and report content formats can be customized through system configuration software.
Multi-Layer Electrical Isolation and Anti-Interference Protection
Each external serial port and parallel port is equipped with independent isolation barriers to limit cross-transmission of abnormal energy between external field equipment and internal TMR safety circuits, preventing lightning surges, static electricity and overvoltage from damaging core safety rack hardware. All serial cable shielding layers must implement single-point grounding at the control room cabinet side to eliminate ground loop interference generated by long-distance wiring. Internal circuit partitioning separates different serial channel signal processing areas to avoid mutual crosstalk and signal distortion, and the 4119A upgrades isolation circuit withstand voltage and surge protection capacity compared with the original 4119.
Multi-Device Parallel Serial Docking Management
A single 4119 or 4119A module can connect up to four groups of independent serial external equipment simultaneously, realizing centralized serial communication expansion without occupying the rack’s dedicated network communication module slots. Operators can uniformly view the online status and real-time data of all connected serial equipment on the central HMI, and configure independent communication priority for each serial channel, assigning the highest priority to fire and gas alarm, emergency shutdown interlock serial signals to guarantee ultra-low delay transmission.

6. Applicable Scenarios

Petrochemical Refining ESD and F&G Safety Systems
Used as serial communication expansion gateway for crude oil distillation, catalytic cracking and hydrogenation unit safety racks, realizing serial docking between Tricon SIS and local serial HMI, flammable gas detectors and event sequence recorders, and supporting hard-copy printing of accident alarm logs through the parallel printer port.
Offshore Oil & Gas Platform Fire Protection Systems
Adapted to offshore high humidity, salt fog and vibration environments, connecting platform local serial monitoring terminals, fire alarm control panels and wellhead serial signal collectors through multi-channel serial ports, adopting the -IS intrinsically safe variant for control cabinets installed in Class I hazardous areas.
Natural Gas Transmission Pipeline Compressor Stations
Serves station safety interlock racks, realizing serial data exchange between Tricon safety system and compressor unit local serial controllers, uploading pipeline pressure and flow safety variables to station serial monitoring terminals, and printing daily safety operation reports automatically.
Thermal Power Plant Boiler Protection Systems
Applied in boiler SIS racks, docking with boiler serial flame detectors, turbine protection serial controllers and local operation panels, supporting real-time transmission of boiler overtemperature and overpressure pre-alarm signals and offline storage printing of fault records.
Fine Chemical and Pharmaceutical Hazardous Production Workshops
Deployed in Class I explosive hazardous area control rooms with -IS intrinsically safe configuration, connecting workshop reactor serial temperature and pressure recorders and local emergency stop serial panels, using multi-channel isolated serial ports to avoid interference between different workshop signal loops.
Small and Medium-Sized Safety Instrument System Retrofit Projects
Suitable for old factory SIS rack expansion without extra network communication slots, using 4119A multi-serial expansion function to add serial monitoring equipment without replacing original rack network modules, reducing project transformation cost and construction cycle.

7. Operation and Maintenance Instructions

Installation Requirements

TRICONEX 4119 and 4119A must only be installed in dedicated auxiliary communication single slots of standard Tricon TMR safety I/O rack, and the whole rack power supply must be cut off before plugging and disassembly, online hot-swap is strictly forbidden. Insert the module horizontally into the card slot, and fully lock the front panel fastening screws to ensure reliable contact between the rear backplane gold finger connector and the rack bus. All serial communication cables must adopt double-shielded twisted-pair industrial cables; cable shielding layers must be single-point grounded at the control room cabinet ground bar, and multi-point grounding on field equipment side is prohibited to prevent ground loop induced interference. The parallel printer port wiring uses dedicated shielded parallel cables, and long-distance extension is not recommended. For intrinsically safe hazardous area cabinet installation, certified safety isolation barriers must be added between module serial terminals and field serial equipment, strictly complying with intrinsic safety circuit parameter matching specifications. A ventilation gap of at least 15 centimeters must be reserved around the rack card slot; high-power heat-generating modules cannot be stacked beside the EICM module to avoid overheating exceeding the rated operating temperature and triggering serial communication protection faults.

Daily Routine Inspection Standards

Conduct daily visual inspection to confirm that the PASS indicator light on the front panel of the module remains steady green, the FAULT alarm light is off, and TX/RX signal lights of each serial port flash normally with data transmission. Log in to TriStation configuration software or system central HMI every day to check all serial channel link status, and confirm that there are no records of serial cable disconnection, communication timeout, port overvoltage or internal hardware faults. Every week, compare serial transmission safety variable data with local serial equipment display values to judge abnormal communication delay or signal distortion. Every month, clean the dust accumulated on the front panel serial terminals and parallel port of the module and the ventilation slits of the rack, check the operating status of the cabinet cooling fan, and ensure that the ambient temperature around the module is maintained within the specified operating range of -40°C to +65°C.

Regular Inspection and Calibration Cycle

Under standard indoor control room operating conditions, full serial port function test, baud rate parameter verification and communication signal calibration shall be carried out every 12 months; for offshore platforms, coastal salt fog workshops and high-temperature chemical production areas, the inspection cycle is shortened to 6 months. Before inspection, back up all serial port mode settings, baud rate configurations and Modbus variable mapping data stored in the redundant memory of Tricon main processor. Use professional serial signal simulators to inject test signals into each serial channel one by one, verify data receiving and forwarding accuracy, adjust communication timeout threshold and signal filtering parameters in configuration software if packet loss or communication delay occurs. After completing all channel tests, save the updated configuration data to redundant system memory, and retain written inspection records including inspection date, operator name and fault test data for factory safety compliance audit.

Common Fault Handling Procedures

When the TX/RX indicator light of a single serial port stops flashing and a communication interruption alarm is triggered, first check whether the serial cable is broken, the terminal wiring is loose or the shielding layer is damaged, then confirm whether the connected external serial equipment is powered off or faulty; eliminate external wiring and equipment faults first before judging module hardware damage. If the global FAULT red light on the front panel is always on and all serial channels cannot transmit data, cut off the whole rack power supply first, then check the 24VDC power supply voltage of the rack and whether the backplane connector has dust accumulation, corrosion or poor contact. If the system diagnosis displays internal serial circuit hardware failure of the module, planned shutdown maintenance must be arranged: cut off rack power, unlock front fastening screws, steadily pull out the faulty module, insert a spare module of the same model and suffix version, lock the screws tightly, restore rack power supply, wait for the mainframe to complete automatic synchronization of serial communication parameters, then verify that all serial channels resume normal transmission and clear the historical fault alarm logs. On-site disassembly of internal circuit components of the module is forbidden; damaged modules must be returned to official authorized service centers for repair or scrapping. Unauthorized disassembly will invalidate all SIL3 safety certifications of the hardware.

Spare Module Storage and Long-Term Service Management

Offline spare 4119 and 4119A modules shall be stored in a constant temperature dry warehouse with ambient temperature maintained at 0°C to 40°C and relative humidity controlled below 70%. The modules must be sealed in original anti-static packaging bags to prevent static electricity from damaging internal serial communication chips, and avoid direct sunlight, corrosive gas and heavy dust accumulation environments. Every six months of shelf storage, take out the spare module for a 30-minute power-on aging test to activate internal circuit capacitors and prevent component performance degradation caused by long-term power-off state. The design service life of both modules under rated normal operating conditions is 15 years; all on-site installed EICM modules shall be replaced in batches when reaching the service life to maintain the overall SIL3 safety integrity level of the entire SIS system.

Maintenance Safety Prohibitions

Unauthorized modification of internal serial processing chips, independent firmware burning or hardware wiring transformation of 4119 and 4119A is strictly prohibited. Any modification will void functional safety certification and related industrial safety qualification certificates. Do not connect serial cables with overvoltage exceeding the module’s rated isolation withstand voltage to front terminals; excessive voltage will permanently burn internal isolation circuits and triple redundant backplane bus interfaces. All maintenance operations involving module plugging, serial cable replacement or communication parameter modification must be operated by certified SIS safety instrument maintenance personnel, and the whole rack power supply must be cut off before disassembly. Safety isolation measures for production safety loops must be implemented before operation to avoid accidental triggering of emergency shutdown interlock logic during maintenance. Any disassembly or replacement of the module is forbidden during critical production startup, shutdown or emergency accident handling stages; all maintenance work must be arranged during planned equipment shutdown maintenance windows.
