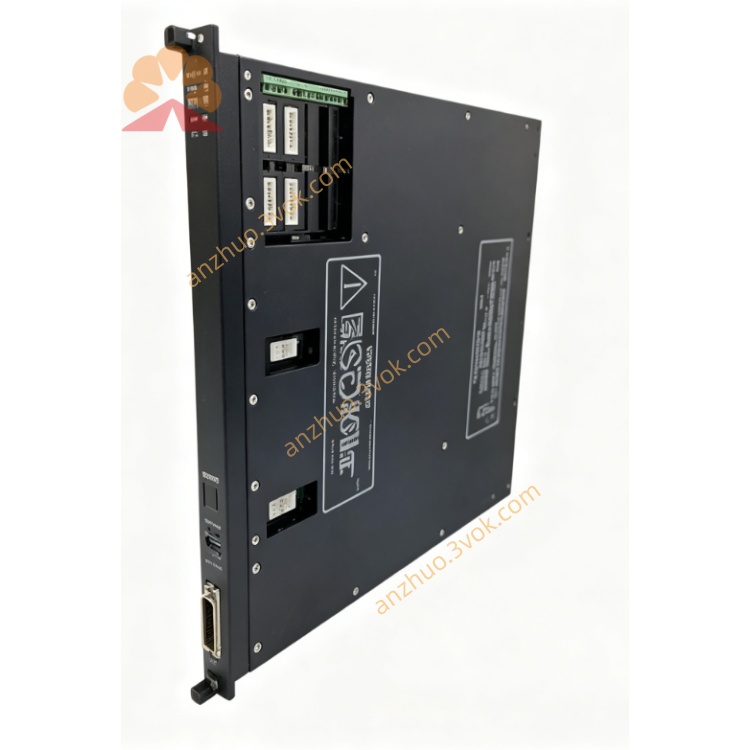

TRICONEX 3002

Pulse Input Terminal Board / Digital Output Module (TMR, SIL3)

Official English Specification (consistent format: 2651/2652/2658/2700/2750/2755)

1. General Description

2. Model Information

• Model: 3002

• Type: Pulse Input Terminal Board / Digital Output Module (TMR)

• System Series: Triconex Tricon / Trident SIS

• Safety Level: SIL3 (IEC 61508)

• Certification: TÜV, FM, CSA, ATEX, IECEx

• Part Number: 3002‑010

• Status: Active / In production

3. Main Features

• TMR Architecture: Designed for triple‑modular‑redundant system integration

• Dual Function: Configurable as 8‑channel pulse input or 8‑channel relay output

• High Isolation: 1500VAC channel‑to‑channel; 2500VAC channel‑to‑backplane

• Relay Output (DO): Form C (SPDT) contacts, 5A @ 250VAC resistive

• Pulse Input (PI): 24VDC binary, dry contact, pulse counting up to 10kHz

• Contact Feedback Monitoring: Verifies relay state for diagnostics

• Hot‑Swappable: Online replacement without shutdown

• Compact Size: Standard Trident half‑size module

4. Technical Parameters

4.1 Digital Output (DO) Mode

• Number of Channels: 8 (isolated Form C)

• Contact Rating: 5A @ 30VDC / 250VAC (resistive); 2A inductive

• Switching Time: ≤10ms (on/off)

• Isolation: 1500VAC (channel‑channel); 2500VAC (channel‑backplane)

• Max Frequency: 10Hz (inductive loads)

4.2 Pulse Input (PI) Mode

• Number of Channels: 8

• Input Type: 24VDC binary, dry contact, pulse (0–10kHz)

• Input Voltage: 24VDC ±20%

• Isolation: 1500VAC channel‑to‑backplane

4.3 Redundancy & Safety

• Architecture: TMR‑ready (works with 2750 CPU)

• Diagnostic Coverage: >99%

• System Availability: 99.999%

4.4 Environmental

• Operating Temperature: −20°C to +60°C

• Storage Temperature: −40°C to +85°C

• Humidity: 5%–95% non‑condensing

• Protection: IP20

4.5 Power & Physical

• Backplane Power: 5VDC

• Power Consumption: ≤2.5W

• Dimensions: 150mm × 130mm × 35mm

• Weight: ~0.5kg

5. Function Overview

• DO Mode: Drives solenoid valves, motor starters, alarms, and ESD trip relays; feedback monitors relay status

• PI Mode: Counts pulses from flow meters, speed sensors, and incremental encoders; 1ms SOE timestamps

• TMR compatibility ensures 2oo3 voting for safety logic

• Integrates with Trident CPU (2750) and analog modules (2755)

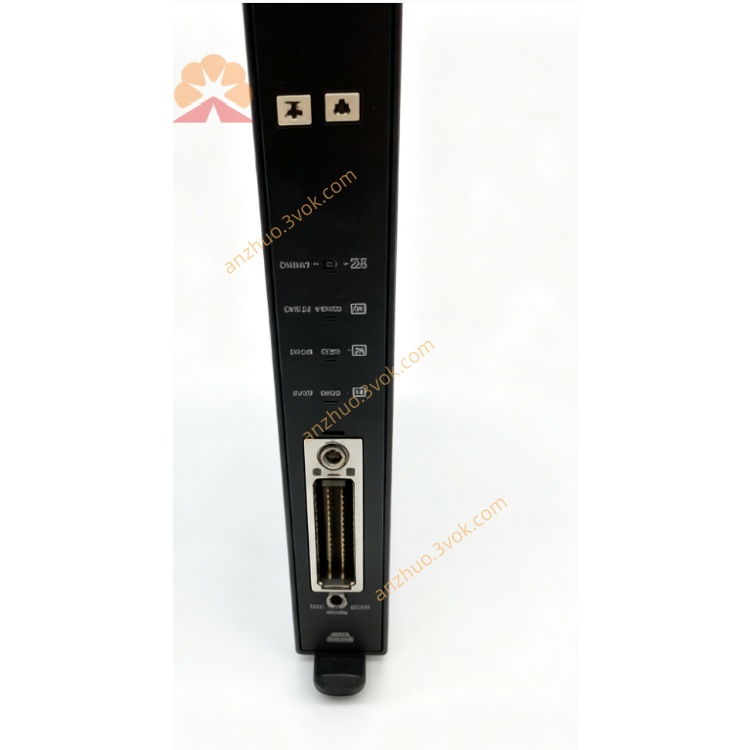

6. LED Indicators

• PWR (Green): 5VDC backplane power OK

• RUN (Green): Module active, TMR sync normal

• FAULT (Red): Channel fault, voting mismatch, or relay feedback error

• CH1–8 (Yellow): Per‑channel status (ON/OFF or pulse activity)

7. Installation & Configuration

1. Insert 3002 into Trident baseplate half‑size slot

2. Wire field devices (valves, meters) to FTA terminal block

3. Use TriStation 1131 to set mode (DO/PI), channel logic, and diagnostics

4. Verify: PWR+RUN green; no FAULT red; CH LEDs reflect activity

8. Typical Applications

• ESD: Solenoid valve control, trip relay actuation

• BMS: Fuel gas valve control, flame alarm outputs

• FGS: Gas detector alarm outputs, deluge valve control

• Turbine: Speed pulse input, trip relay output

• Process: Flow meter pulse counting, on/off valve control

9. Maintenance

• Hot‑swap faulty 3002 without downtime

• Check relay contacts for wear (DO mode)

• Verify pulse signal integrity (PI mode)

• Review fault logs via TriStation

10. Compatibility

• Compatible Systems: Triconex Tricon, Trident SIS

• Configuration Software: TriStation 1131 (v4.0+)

• Matching CPU: 2750 (TMR Controller)

• Matching I/O: 2700 (DI), 2755 (AI)

• Model: 3002

• Description: 8‑Channel Pulse Input / Digital Output Module, TMR, SIL3
