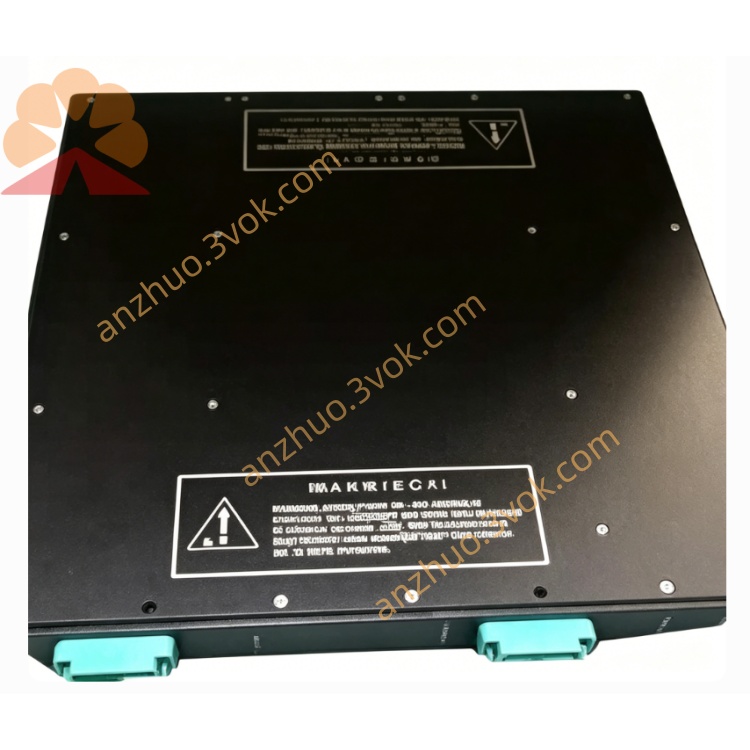

TRICONEX 2551

Analog Input Module (8‑Channel, TMR, 4–20 mA / 0–10 VDC, SIL 3)

Official Specification & User Manual (English)

1. General Description

2. Part Number & Type

• Model: 2551

• Type: Analog Input Module (AI), TMR

• Series: Trident (Triconex / Schneider Electric)

• Safety Level: SIL 3 (IEC 61508)

• Approvals: TÜV Rheinland, FM, CSA

3. Key Features

• 8 Isolated Analog Input Channels

  Configurable for 4–20 mA or 0–10 VDC transmitters/sensors.

• Triple Modular Redundancy (TMR)

  2oo3 voting; three independent measurement paths per channel.

• High Accuracy & Stability

  ±0.02% F.S., 1000 samples/sec, low drift over temperature.

• Per‑Channel Isolation

  2500 V RMS channel‑to‑backplane isolation.

• Advanced Diagnostics

  Open circuit, short circuit, out‑of‑range, over‑temperature, drift alarm.

• Hot‑Swappable

  Replace online without system shutdown.

• SIL 3 Fault Coverage

  99% diagnostic coverage for safe and dangerous faults.

4. Technical Specifications

4.1 Input Channels

• Number: 8 channels, isolated, single‑ended

• Signal Types: 4–20 mA (default), 0–10 VDC (configurable)

• Resolution: 16‑bit

• Accuracy: ±0.02% F.S. @ 25°C

• Repeatability: ±0.005% F.S.

• Sampling Rate: 1000 Hz per channel

• Input Impedance:

  • 4–20 mA: 100 Ω

  • 0–10 VDC: >1 MΩ

4.2 Safety & Redundancy

• Architecture: TMR, 2oo3 voting

• Safety Integrity Level: SIL 3

• Fault Coverage: > 99%

• System Availability: 99.999%

4.3 Environmental

• Operating Temperature: 0°C to +60°C

• Storage Temperature: −40°C to +85°C

• Humidity: 5%–95% non‑condensing

• Vibration: 5–200 Hz, 1g

4.4 Power

• Backplane: 5 VDC / 1.2 A

4.5 Physical

• Dimensions: 133 mm × 114 mm × 32 mm (5.25” × 4.50” × 1.25”)

• Weight: ~0.38 kg

• Mounting: Trident baseplate, 19” rack

5. Functional Overview

• TMR Analog Measurement

  Three independent A/D converters per channel; 2oo3 voted result.

• Signal Conditioning

  Over‑voltage, over‑current, and ESD protection on each input.

• Diagnostics & Alarms

  Open/short circuit, out‑of‑range, sensor drift, module temperature fault; reported via TriStation.

• SOE Logging

  Time‑stamps fault/state changes (≤ 40 ms).

6. LED Indicators

• PWR (Green): Module power OK

• RUN (Green): Active, communicating

• FAULT (Red): Channel/module fault

• CH 1–8 (Yellow): Channel active / fault

7. Installation & Configuration

1. Insert 2551 into an empty Trident baseplate slot.

2. Connect field transmitters/sensors to the AI terminal base.

3. Use TriStation 1131 to:

   • Set input type (4–20 mA / 0–10 VDC)

   • Configure range, scaling, and filtering

   • Enable diagnostics (open/short, out‑of‑range)

4. Verify: PWR + RUN green, no FAULT red.

8. Typical Applications

• Pressure, temperature, flow, level transmitters (4–20 mA)

• 0–10 VDC analog sensors

• ESD/BMS process variable monitoring

• SIL 3 safety loops in oil & gas, power, chemical

• Fire & gas system analog sensors

9. Maintenance

• Hot‑swap faulty 2551 without shutdown.

• Inspect field wiring and terminal base connections.

• Review fault/SOE logs via TriStation.

10. Ordering Information

• Model: 2551

• Description: Triconex Trident 8‑Channel TMR Analog Input Module (4–20 mA / 0–10 VDC, SIL 3)

• Compatible with: Trident Chassis, 2101/3700A MP Modules, TriStation 1131
