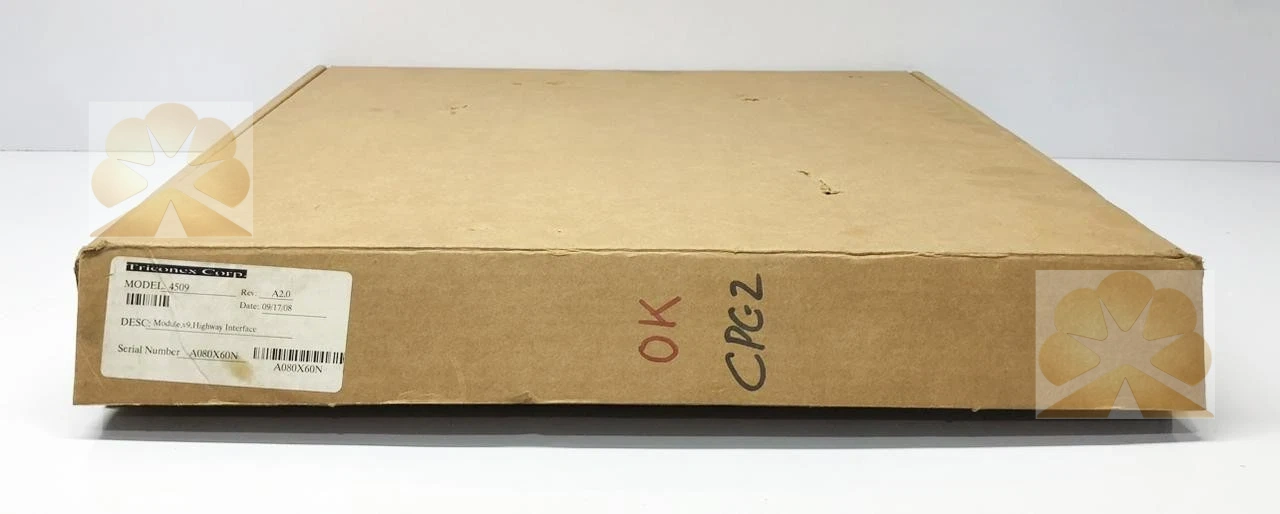

Triconex 4509 HIM Hiway Interface Module Product Description

Overview

Triconex 4509 HIM is a Hiway interface communication module for the Tricon TMR safety instrumented system (SIS). This Triconex module realizes data interconnection between the Tricon safety controller and Honeywell TDC2000 / TDC3000 DCS via Honeywell Data Hiway / Hiway Gateway. 4509 HIM is a legacy hot-swappable rack module, widely used for petrochemical, power plant SIS cabinet maintenance, system renovation and spare‑part replacement of old Tricon-Honeywell interconnection links.

Features

Triconex 4509 HIM supports dual isolated Data Hiway channels and redundant hot standby configuration, which can be online replaced without system shutdown. This Triconex communication module provides 8 Hiway logical addresses, equivalent to four extended DHP ports, with a communication baud rate of 250 kbps and data refresh cycle less than 0.5s. 4509 HIM integrates multi-status LED indicators for module pass, fault, active, channel running and transmission status diagnosis. The Triconex HIM module adopts 500 VDC isolation design to suppress field electromagnetic interference. This module supports bidirectional read and write of process variables, alarm information and diagnostic data between Tricon SIS and Honeywell DCS.

Specs

Triconex 4509 HIM Hiway interface module

• Brand: Triconex (Schneider Electric)

• Series: Tricon SIS

• Model: 4509 HIM

• Full name: Hiway Interface Module

• Channel: 2 isolated Data Hiway channels

• Baud rate: 250 kbps

• Logical address: 8 Hiway addresses

• Redundancy: Hot standby support

• Isolation: 500 VDC

• Power consumption: Less than 10 W

• Mounting: Tricon rack slot

• Compatible system: Tricon controller, Honeywell TDC2000 / TDC3000

Principle

Triconex 4509 HIM Hiway interface module is installed in the Tricon backplane rack and communicates with the Tricon main processor via the backplane bus. The module converts the internal Tricon protocol into Honeywell Data Hiway protocol, and transmits process data and setpoints to the TDC DCS. It also receives operation commands and set values sent by the DCS operator station and forwards them to the Tricon safety controller. When the working channel fails, the hot standby HIM automatically switches to take over communication without interrupting data exchange. Built‑in self‑diagnosis continuously monitors link quality and module hardware health, and triggers fault alarm once abnormality is detected.

Applications

Triconex 4509 HIM is deployed in petrochemical plants, refineries, power stations and chemical production lines equipped with Tricon SIS and Honeywell TDC series DCS. This Triconex HIM module serves as the dedicated gateway for Tricon safety system and Honeywell legacy DCS. 4509 HIM fits SIS cabinet overhaul, DCS/SIS communication link modification and spare replacement of legacy Tricon Hiway interface modules.

Installation & Maintenance Notes

Follow official Triconex Tricon hardware and service manuals during installation of Triconex 4509 HIM module. Confirm BNC cable shielding and terminal matching for Data Hiway wiring. After replacement, verify communication address allocation and redundant switchover function. Back up SIS interlock logic and DCS mapping configuration before module replacement. Check LED status and communication link quality regularly in high‑EMI industrial environments. Confirm exact model 4509 HIM before spare‑part swap‑out to verify channel quantity, protocol and Tricon rack firmware compatibility.
