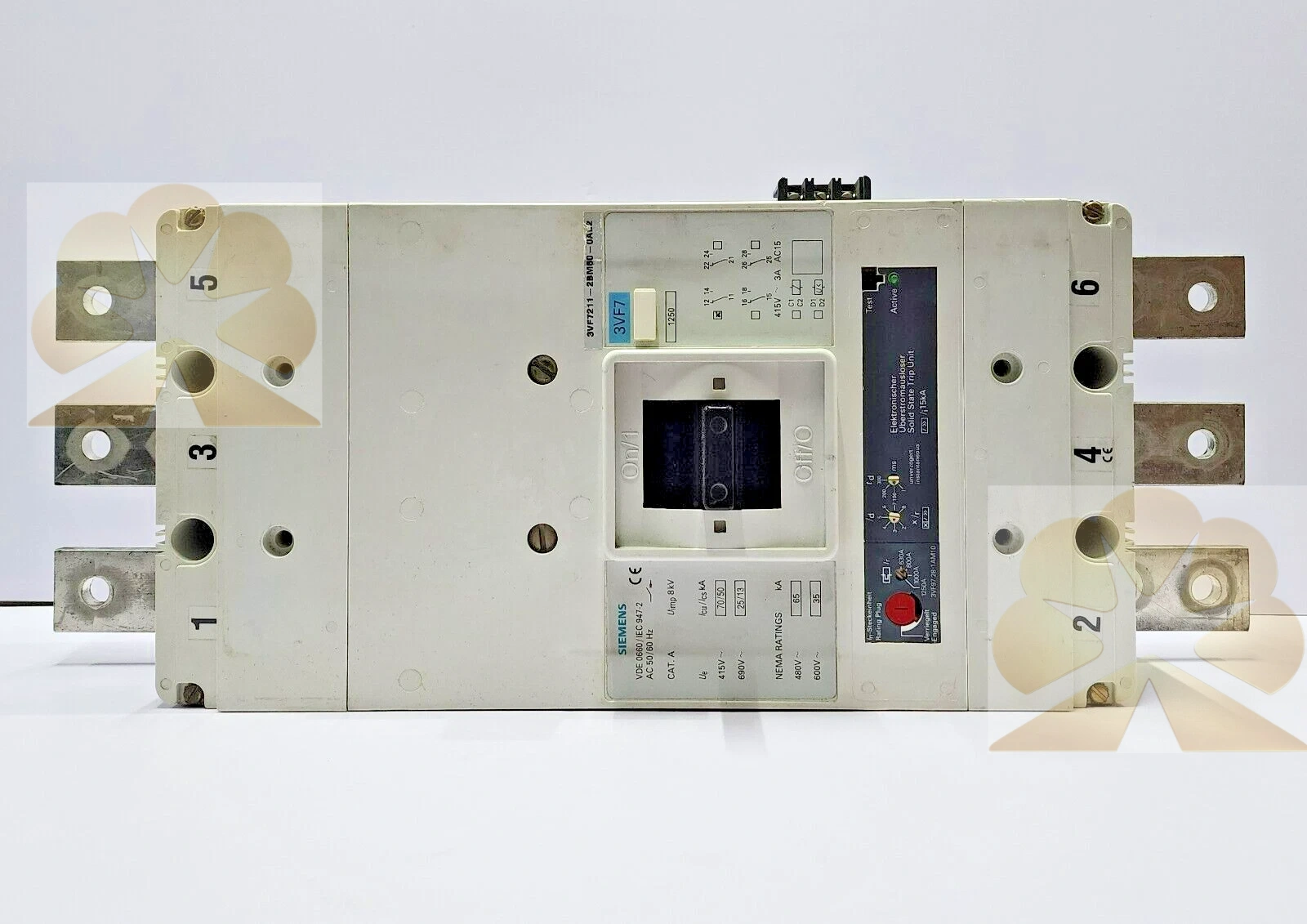

Siemens 3VF7211‑2BM60‑0AB2 Moulded Case Circuit Breaker Product Description

Overview

Siemens 3VF7211‑2BM60‑0AB2 is a heavy‑duty moulded case circuit breaker from the Siemens 3VF series, designed for low‑voltage power distribution protection. This Siemens moulded case circuit breaker provides reliable overload and short‑circuit protection for power circuits, motors and distribution branches inside industrial switch cabinets. The Siemens 3VF7211‑2BM60‑0AB2 moulded case circuit breaker adopts compact moulded housing construction, supporting fixed mounting and cable or busbar connection. As a mature Siemens protection component, 3VF7211‑2BM60‑0AB2 complies with IEC standards and is commonly used for new cabinet assembly, equipment upgrade and spare‑part replacement of existing 3VF series breakers.

Features

Siemens 3VF7211‑2BM60‑0AB2 moulded case circuit breaker integrates thermal‑magnetic trip unit for combined overload and instantaneous short‑circuit protection. This Siemens moulded case circuit breaker supports stable continuous operation under normal load conditions and fast fault isolation when abnormal current occurs. Siemens 3VF7211‑2BM60‑0AB2 moulded case circuit breaker is equipped with a clear operating handle for local manual closing and opening, and handle position directly indicates ON/OFF/trip status. The Siemens 3VF7211‑2BM60‑0AB2 moulded case circuit breaker reserves interfaces for optional auxiliary contacts, alarm contacts and shunt release accessories to expand remote signal feedback and remote tripping functions. This Siemens moulded case circuit breaker offers good dielectric performance and arc quenching capacity to limit fault energy during short‑circuit events.

Specs

Siemens 3VF7211‑2BM60‑0AB2 moulded case circuit breaker is a 3‑pole unit for three‑phase AC distribution systems. It is rated for 400V AC service voltage and built with thermal‑magnetic protection characteristic. The moulded case structure provides solid mechanical protection for internal contact and trip components. It supports standard front wiring and can be fitted with optional accessories according to project requirements. The breaker is designed for cabinet installation and suitable for general industrial ambient conditions.

Principle

Siemens 3VF7211‑2BM60‑0AB2 moulded case circuit breaker relies on thermal bimetallic element to respond to long‑term overload current, which generates heat and deforms to trigger the trip mechanism. When a severe short‑circuit fault occurs, the magnetic trip element instantly generates electromagnetic force to release the latch and separate the main contacts. The built‑in arc chute rapidly cools and extinguishes the electric arc during contact separation, completing safe isolation of the fault circuit. After tripping, the handle locks in the trip position and requires manual reset before reclosing.

Applications

Siemens 3VF7211‑2BM60‑0AB2 moulded case circuit breaker is widely applied in industrial power distribution panels, pump and fan control cabinets, and general machinery power feed circuits. This Siemens moulded case circuit breaker serves as branch protection for production lines, workshop power supply systems and OEM electrical assemblies. Siemens 3VF7211‑2BM60‑0AB2 moulded case circuit breaker fits renovation projects and spare replacement for legacy 3VF installations. It protects downstream cables, motors and loads from damage caused by overload and short‑circuit faults.

Installation & Maintenance Notes

Follow official Siemens operation manuals during installation of Siemens 3VF7211‑2BM60‑0AB2 moulded case circuit breaker. Apply correct tightening torque for terminals to avoid overheating at connection points. Check the operating handle and contact status regularly, especially in dusty or high‑vibration plant environments. Verify the part number 3VF7211‑2BM60‑0AB2 before replacement to ensure matching pole count, trip characteristic and installation dimensions. Confirm accessory compatibility if auxiliary contacts or releases are required. Keep proper cabinet ventilation to prevent excessive ambient temperature from affecting protection accuracy.
