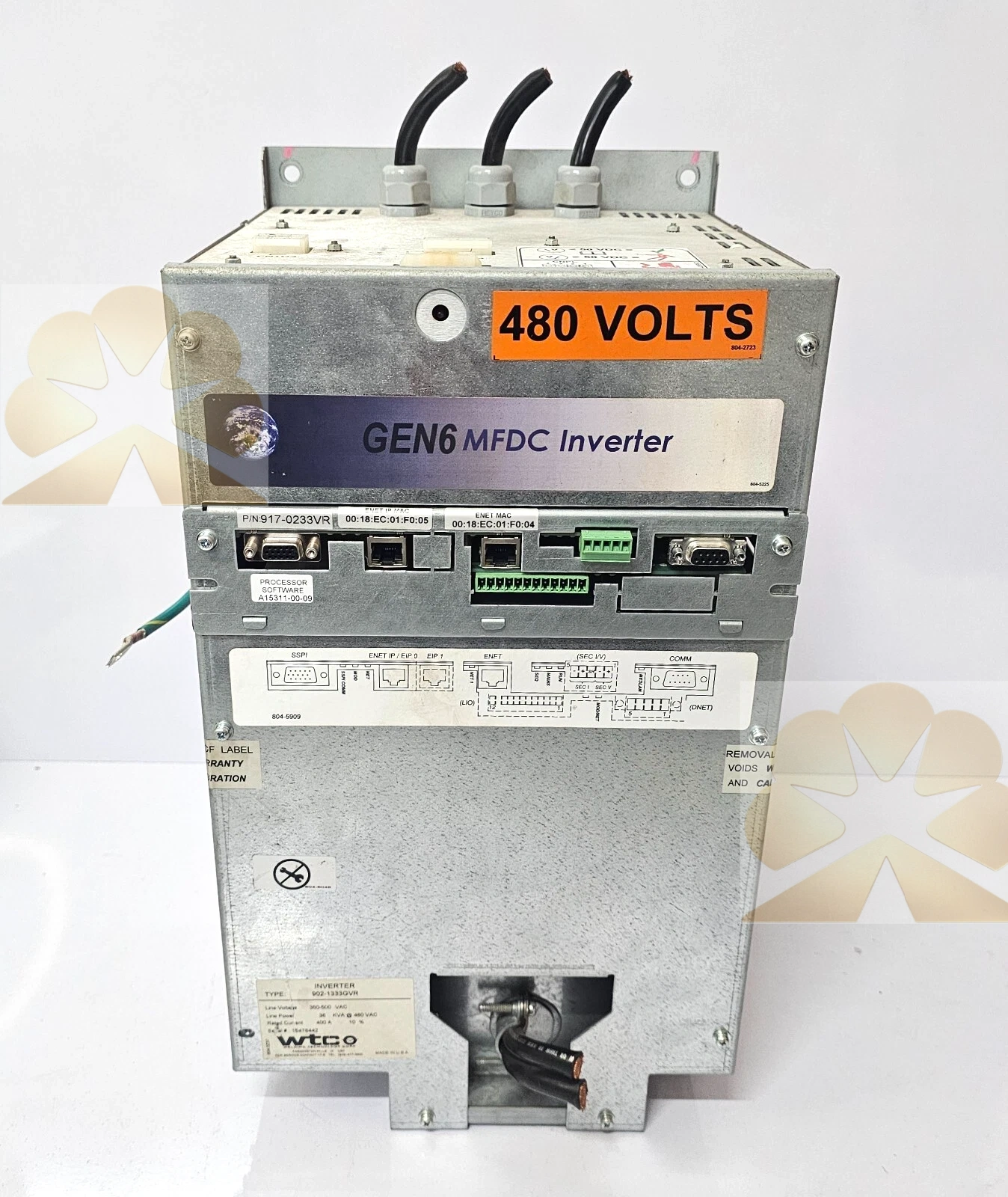

WTC 902‑1333GVR GEN6 MFDC Inverter Product Description

Overview

WTC 902‑1333GVR is a GEN6 MFDC medium-frequency DC inverter for WTC resistance welding control systems. This WTC MFDC inverter converts three‑phase AC input into high‑frequency medium‑frequency DC output for welding transformers, widely used for automotive body welding lines, automated welding stations and resistance spot welding equipment. 902‑1333GVR is rated at 36 kVA, and it must be paired with matching WTC welding controllers and MFDC transformers to complete precise welding current closed‑loop control. It is a common spare part for production line overhaul and replacement of legacy WTC GEN6 welding inverters.

Features

WTC 902‑1333GVR GEN6 MFDC inverter adopts IGBT high‑frequency switching topology for fast current response and stable welding energy output. This WTC welding inverter supports precise current regulation and adaptive welding curve control for spot, projection and seam welding processes. 902‑1333GVR integrates overcurrent, overvoltage, overtemperature and short‑circuit fault detection circuits for power device protection. The WTC MFDC inverter communicates with the welding controller via dedicated links to receive weld schedule, trigger and feedback signals. This inverter supports high‑duty cyclic welding operation, with built‑in cooling system designed for workshop high-cycle welding environments.

Specs

WTC 902‑1333GVR GEN6 MFDC inverter

• Brand: WTC (Welding Technology Corp)

• Series: GEN6 MFDC

• Model: 902‑1333GVR

• Rated power: 36 kVA

• Input voltage: 350–500 VAC three‑phase

• Output type: Medium frequency DC for welding transformer

• Matching accessories: WTC welding controller, MFDC welding transformer

• Cooling: Forced air cooling

• Application: Resistance spot / projection welding

Principle

WTC 902‑1333GVR GEN6 MFDC inverter rectifies the three‑phase AC input into DC bus voltage. The internal IGBT bridge chops DC into high‑frequency AC to drive the welding transformer; the transformer secondary side is rectified to obtain low‑voltage high‑current DC for welding. The inverter samples the welding current in real time and feeds back to the controller to form a closed current loop, ensuring consistent welding energy for each weld cycle. When fault conditions such as overcurrent or overheat are detected, the inverter blocks IGBT drive and sends fault status to the welding controller to stop the weld sequence.

Applications

WTC 902‑1333GVR GEN6 MFDC inverter is mainly deployed on automotive assembly welding lines, robotic spot welding cells and heavy‑duty projection welding stations. This WTC MFDC inverter delivers stable, repeatable welding quality for steel and aluminum sheet joining. 902‑1333GVR fits welding cell maintenance, production line retrofitting and spare replacement of existing GEN6 MFDC welding power modules.

Installation & Maintenance Notes

Follow official WTC GEN6 service manuals during installation of WTC 902‑1333GVR MFDC inverter. Confirm input power phase sequence, transformer wiring and shielded control wiring; incorrect wiring will cause unstable welding or device damage. Inspect cooling fan, power terminals and cable insulation periodically, especially in environments with welding spatter and dust. Back up welding schedules and calibration parameters before inverter replacement. Confirm exact part number 902‑1333GVR before spare‑part swap‑out to verify kVA rating, voltage class and controller compatibility.
