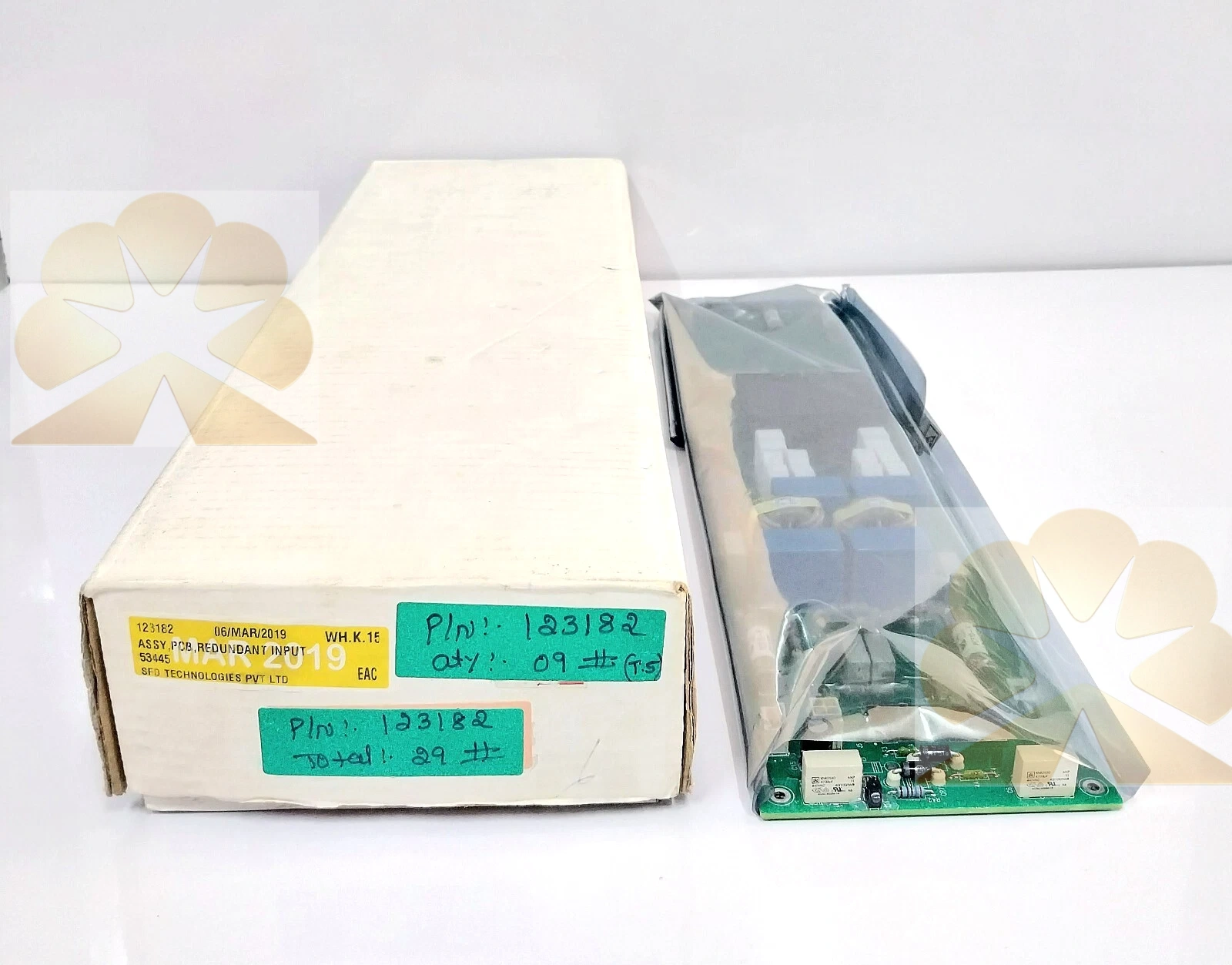

123182 N1231820A190700525 Custom OEM Assembly Product Description

Overview

123182 is the base item code, N1231820A190700525 is the full OEM drawing / serial / configuration number. This is a non‑standard catalog custom spare assembly, most commonly a signal conditioning PCB, interface board, wiring harness or sub‑module for safety, genset, turbine or welding control cabinets. There is no public standard datasheet for this exact part number. It exists as a direct replacement spare on the original production equipment.

Features

This assembly includes signal conditioning circuits, isolation components and dedicated pin headers defined by drawing N1231820A190700525. It converts raw analog or discrete field signals into standardized levels for the main controller. 123182 N1231820A190700525 carries built‑in hardware diagnostics for signal loss, overvoltage and communication faults. It requires shielded cabling to resist EMI interference in industrial cabinet environments. Hot‑swap capability is determined by the original rack design. Firmware revision and connector pinout are locked to this full reference number.

Specs

• Base code: 123182

• Full reference part number: N1231820A190700525

• Type: Custom OEM subassembly / interface PCB

• Power rating, input/output definition: Refer to OEM machine drawing

• Installation: Backplane / cabinet slot mount

• Status: Legacy project spare, no generic datasheet

• Replacement rule: Full part number and drawing revision must match exactly

Principle

123182 N1231820A190700525 receives field sensor signals or backplane bus commands. Onboard circuits perform filtering, isolation and level conversion, then forward processed signals to the main processor. If signal deviation or hardware damage is detected, the assembly sends a fault flag to the host controller to trigger alarm or safe shutdown sequence.

Applications

It appears as spare parts on turbine monitoring racks, safety instrumented systems, diesel generator control cabinets and automated welding control cabinets. This part can only be used to replace the identical unit on the original machine.

Installation & Maintenance Notes

Follow the OEM service drawing N1231820A190700525 during replacement. Use ESD protection before handling the board. Record all wiring mapping before disassembly. After replacement, run signal loop test and communication verification. Back up controller logic and parameters before swap. Confirm both 123182 and N1231820A190700525 fully match; different revision numbers may have different pin assignments and are not interchangeable.
