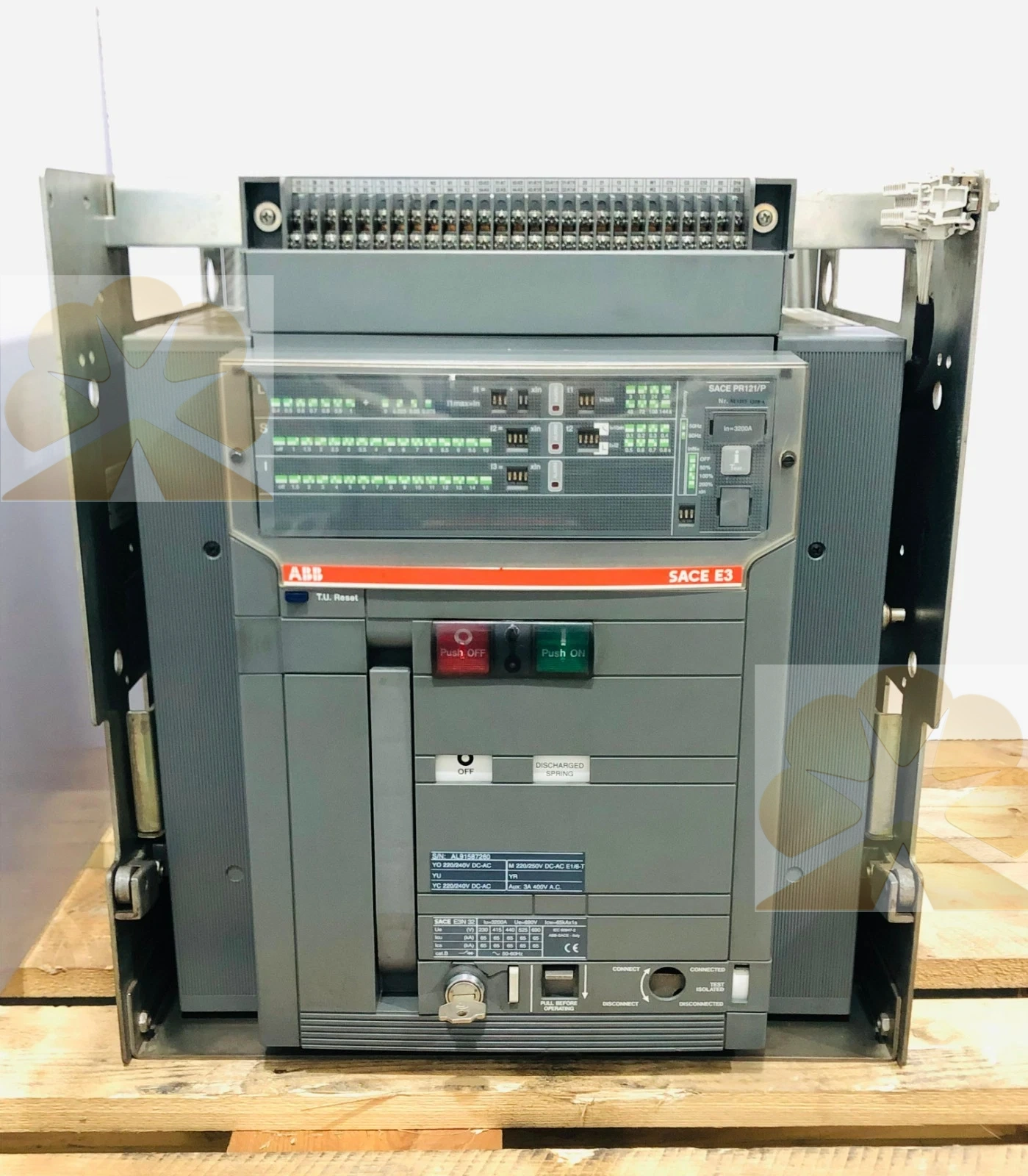

ABB SACE E3N‑32 Air Circuit Breaker Product Description

Product Overview

ABB SACE E3N‑32 is a robust air circuit breaker from the ABB SACE Emax series, designed for heavy‑duty low‑voltage power distribution systemsABB Group. This ABB air circuit breaker delivers reliable fault protection for main incoming and outgoing circuits in industrial and commercial power facilities. The ABB SACE E3N‑32 air circuit breaker supports 3200A rated uninterrupted current with maximum operating voltage up to 690V ACABB Group. Available in both fixed and withdrawable versions, ABB SACE E3N‑32 simplifies inspection, maintenance and spare‑part replacement inside low‑voltage switchgear cabinets. As a core ABB air circuit breaker unit, ABB SACE E3N‑32 meets IEC international standards for global power distribution projects.

Core Technical Characteristics

ABB SACE E3N‑32 air circuit breaker adopts high‑strength mechanical construction for long‑term continuous operation in demanding power distribution environments. This ABB air circuit breaker achieves 20000 mechanical operating cycles and solid electrical durability for frequent switching dutiesABB Group. ABB SACE E3N‑32 air circuit breaker can be fitted with PR121/P or PR122/P electronic trip units, allowing flexible adjustment of overload, short‑time delay and instantaneous protection parameters according to site load conditions. The ABB SACE E3N‑32 air circuit breaker features rated impulse withstand voltage of 12 kV and insulation voltage of 1000 V to resist voltage surges and electromagnetic interferenceABB Group. Its short‑time withstand current performance ensures stable power distribution even under severe short‑circuit stress.

Main Functional Features

ABB SACE E3N‑32 air circuit breaker provides multi‑level electrical protection to safeguard power distribution infrastructure against common electrical faults. Long‑time overload protection prevents equipment damage caused by sustained over‑loading. Short‑time delay function avoids unwanted tripping during motor starting current surges. Instantaneous short‑circuit protection cuts high‑fault current rapidly once short‑circuit incidents occur. The ABB SACE E3N‑32 air circuit breaker supports optional ground‑fault protection modules for enhanced safety at critical power sites. This ABB air circuit breaker offers comprehensive status feedback signals, enabling remote monitoring and seamless connection with plant DCS and PLC control systems.

Typical Application Scenarios

ABB SACE E3N‑32 air circuit breaker is widely used as main protection device for large‑capacity low‑voltage power distribution cabinets. This ABB air circuit breaker fits power plants, manufacturing factories, data centers, large shopping complexes and utility switch‑rooms. ABB SACE E3N‑32 air circuit breaker is suitable for new power distribution system construction, cabinet retrofitting and replacement of aging Emax‑series breaker units. In high‑current busbar systems, the ABB SACE E3N‑32 air circuit breaker maintains power supply continuity for vital production and business loads. Its withdrawable variant is highly preferred for sites requiring quick breaker swap‑out with minimal power‑off duration.

Installation & Maintenance Notes

Operators must follow official ABB hardware manuals while installing ABB SACE E3N‑32 air circuit breaker. Set correct wiring torque and trip‑unit parameters to guarantee stable performance of this ABB air circuit breaker. Conduct regular visual inspection and mechanical operation tests for ABB SACE E3N‑32 air circuit breaker under heavy‑load or high‑vibration working conditions. For withdrawable‑type ABB SACE E3N‑32, technicians can extract the breaker main body without disconnecting primary busbars, effectively shortening maintenance downtime. Always confirm part designation SACE E3N‑32 before replacement to ensure full compatibility with existing power distribution rack systems.
