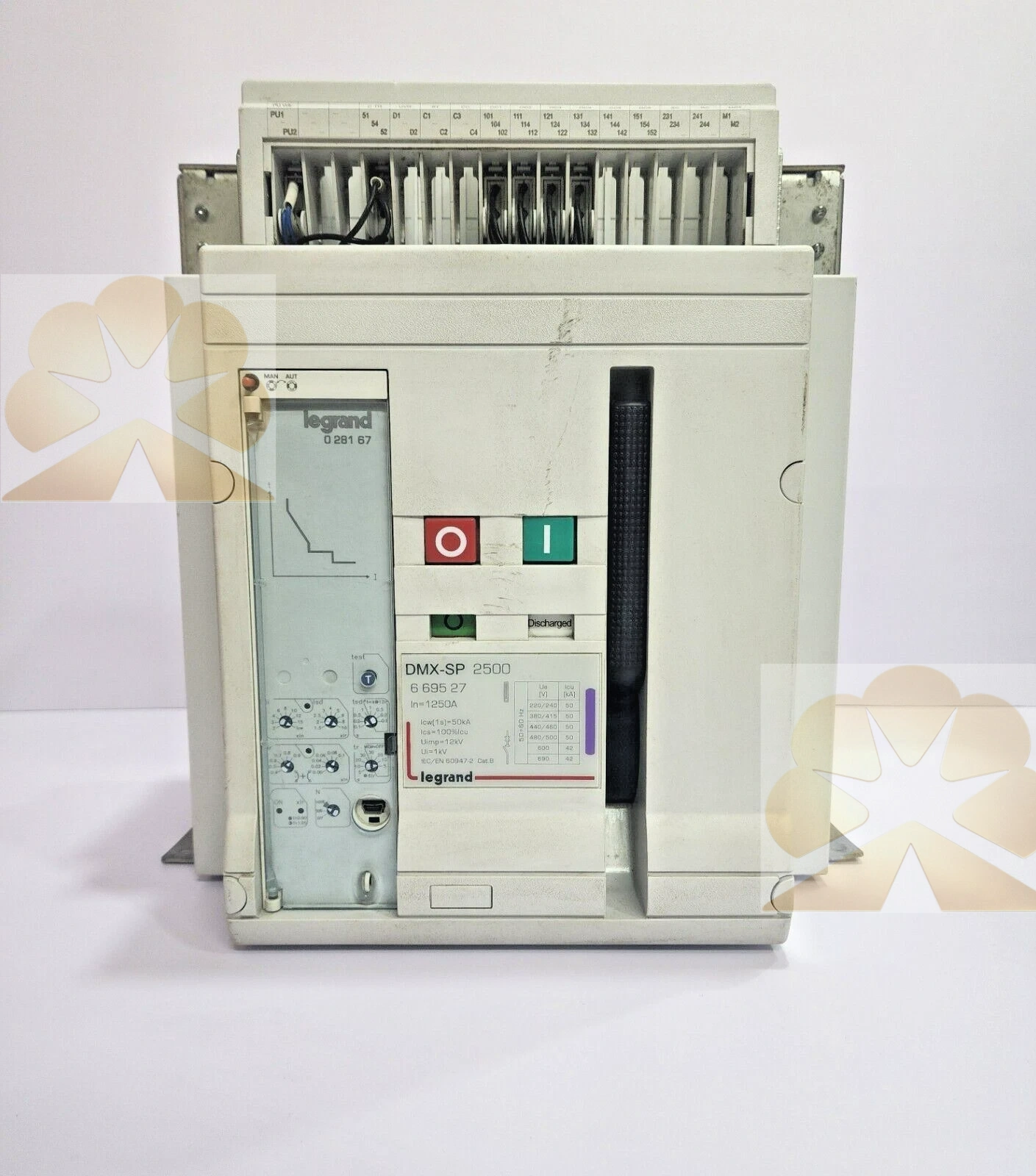

Legrand DMX‑SP 2500 Air Circuit Breaker Product Description

Overview

Legrand DMX‑SP 2500 is an air circuit breaker from Legrand DMX‑SP series, 2500 A frame size, for low‑voltage AC distribution. This Legrand ACB supports fixed or withdrawable draw‑out construction, equipped with MP2 or MP4 electronic protection trip units for selective protection and metering. DMX‑SP 2500 is widely used for main incoming, bus tie and heavy feeder protection in commercial, industrial and infrastructure switchboards, commonly used for cabinet upgrade and spare‑part replacement of existing Legrand DMX‑SP systemsassets.leg....

Features

Legrand DMX‑SP 2500 adopts high‑performance arc quenching chamber for handling high short‑circuit fault current. This Legrand air circuit breaker provides two electronic trip options: MP2 with rotary switch setting and MP4 with LCD touch screen, supporting LSI / LSIG protection including earth fault protection. DMX‑SP 2500 integrates built‑in current transformers. When paired with MP4 trip unit, it can measure three‑phase voltage, current, power, energy and power factor. The breaker supports optional motor operator, shunt release, undervoltage release, auxiliary and alarm contacts for remote control and status feedback. It supports communication for data upload to BMS and SCADA systems, and complies with IEC 60947‑2 standardLegrand.

Specs

Legrand DMX‑SP 2500 air circuit breaker

• Brand: Legrand (罗格朗)

• Series: DMX‑SP

• Model: DMX‑SP 2500

• Frame rated current: 2500 A

• Rated operational voltage Ue: 230–690 V AC

• Icu at 400 V: 42 kA / 50 kA variant

• Poles: 3P / 4P

• Mounting: Fixed / Draw‑out withdrawable

• Trip unit: MP2 (rotary setting) / MP4 (LCD touch)

• Insulation voltage Ui: 1000 V

• Impulse withstand Uimp: 12 kV

• Standard: IEC 60947‑2

Principle

Legrand DMX‑SP 2500 collects secondary current signals from internal CTs and transmits them to the MP2 / MP4 trip unit. The electronic trip unit compares measured values with preset thresholds. Overload triggers long‑time delayed trip; selective short‑circuit faults trigger short‑time delay trip; severe short‑circuit triggers instantaneous trip. When contacts separate during fault breaking, the arc chamber cools and extinguishes the arc safely. MP4 trip unit records fault logs and electrical measurements for diagnosis and energy management.

Applications

Legrand DMX‑SP 2500 is deployed in commercial buildings, factory main distribution rooms, water treatment plants and public infrastructure low‑voltage switchgear. This Legrand ACB serves as transformer secondary incoming protection, bus coupler protection and heavy load feeder protection. DMX‑SP 2500 fits switchboard overhaul and spare replacement of Legrand DMX‑SP series air breakers.

Installation & Maintenance Notes

Follow official Legrand DMX‑SP hardware manual during installation of DMX‑SP 2500. Torque busbar terminals to specified value to avoid overheating. Back up all protection settings before breaker or trip unit replacement. After replacement, perform protection test and communication verification. Check operating mechanism, contact condition and auxiliary wiring regularly, especially in high‑humidity and vibration environments. Confirm exact model DMX‑SP 2500, pole count, breaking capacity and trip unit type before spare‑part swap‑out.
