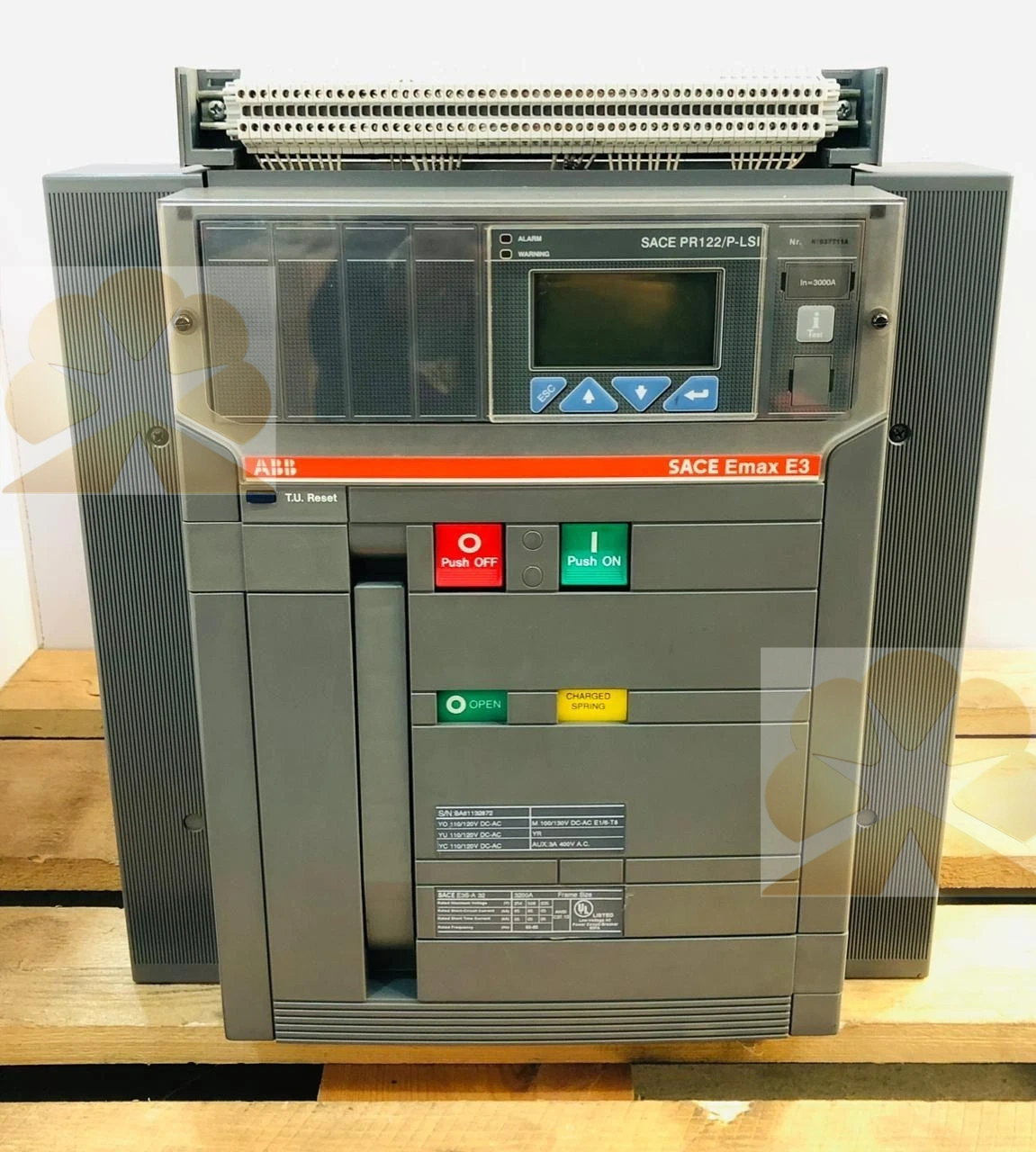

ABB SACE E3S‑A32 Air Circuit Breaker Product Description

Product Overview

ABB SACE E3S‑A32 is a premium air circuit breaker from the ABB SACE Emax series, built for heavy‑duty low‑voltage power distribution systemsABB Group. This ABB air circuit breaker delivers dependable fault isolation for industrial and commercial power infrastructure. The ABB SACE E3S‑A32 features 3200A rated current and works under up to 690V AC operating voltage, supporting both fixed and withdrawable installation options. As a core ABB air circuit breaker unit, ABB SACE E3S‑A32 simplifies cabinet inspection, component replacement and on‑site commissioning for electrical contractors.

Core Technical Characteristics

The ABB SACE E3S‑A32 air circuit breaker adopts high‑strength mechanical structures to secure stable long‑term operation in harsh power distribution environments. This ABB air circuit breaker achieves solid mechanical and electrical durability to cope with frequent switching cycles in main incoming panels. ABB SACE E3S‑A32 is compatible with PR122/P electronic trip unit, allowing flexible adjustment of overload, short‑time delay and instantaneous protection parameters according to real‑site load conditionsABB Group. The ABB SACE E3S‑A32 air circuit breaker meets IEC international standards, offering high impulse withstand capacity to defend power distribution networks against voltage surges and transient disturbances.

Protection Function

ABB SACE E3S‑A32 air circuit breaker integrates multi‑level protective logic to shield power distribution facilities from common electrical hazards. Long‑time overload protection prevents equipment damage triggered by continuous overloading. Short‑time delay protection avoids unwanted tripping during motor startup current surges. Instantaneous short‑circuit protection cuts high fault current within milliseconds once severe short‑circuit faults occur. Users can add optional ground‑fault protection modules on the ABB SACE E3S‑A32 air circuit breaker, further improving safety for critical power distribution applications such as data centers and manufacturing plants.

Typical Application Scenarios

ABB SACE E3S‑A32 air circuit breaker serves as main incoming or outgoing protection device inside low‑voltage switchgear cabinets. This ABB air circuit breaker is widely deployed in factories, data centers, large‑scale shopping complexes and utility power rooms. In high‑current busbar systems, ABB SACE E3S‑A32 guarantees power continuity for key production and business loads. Thanks to verified performance and global certification, the ABB SACE E3S‑A32 air circuit breaker fits standard power distribution projects across different regions worldwide.

Installation & Maintenance Notes

Strictly follow ABB official operation manuals during installation of the ABB SACE E3S‑A32 air circuit breaker. Correct wiring torque and trip‑unit parameter configuration are essential to maintain reliable power distribution performance. Periodic visual inspection and mechanical operation tests are recommended for this ABB air circuit breaker under heavy‑load working conditions. For the withdrawable variant of ABB SACE E3S‑A32, technicians can extract the breaker main body without disconnecting primary busbars, effectively lowering power‑off duration and boosting on‑site operator safety.
