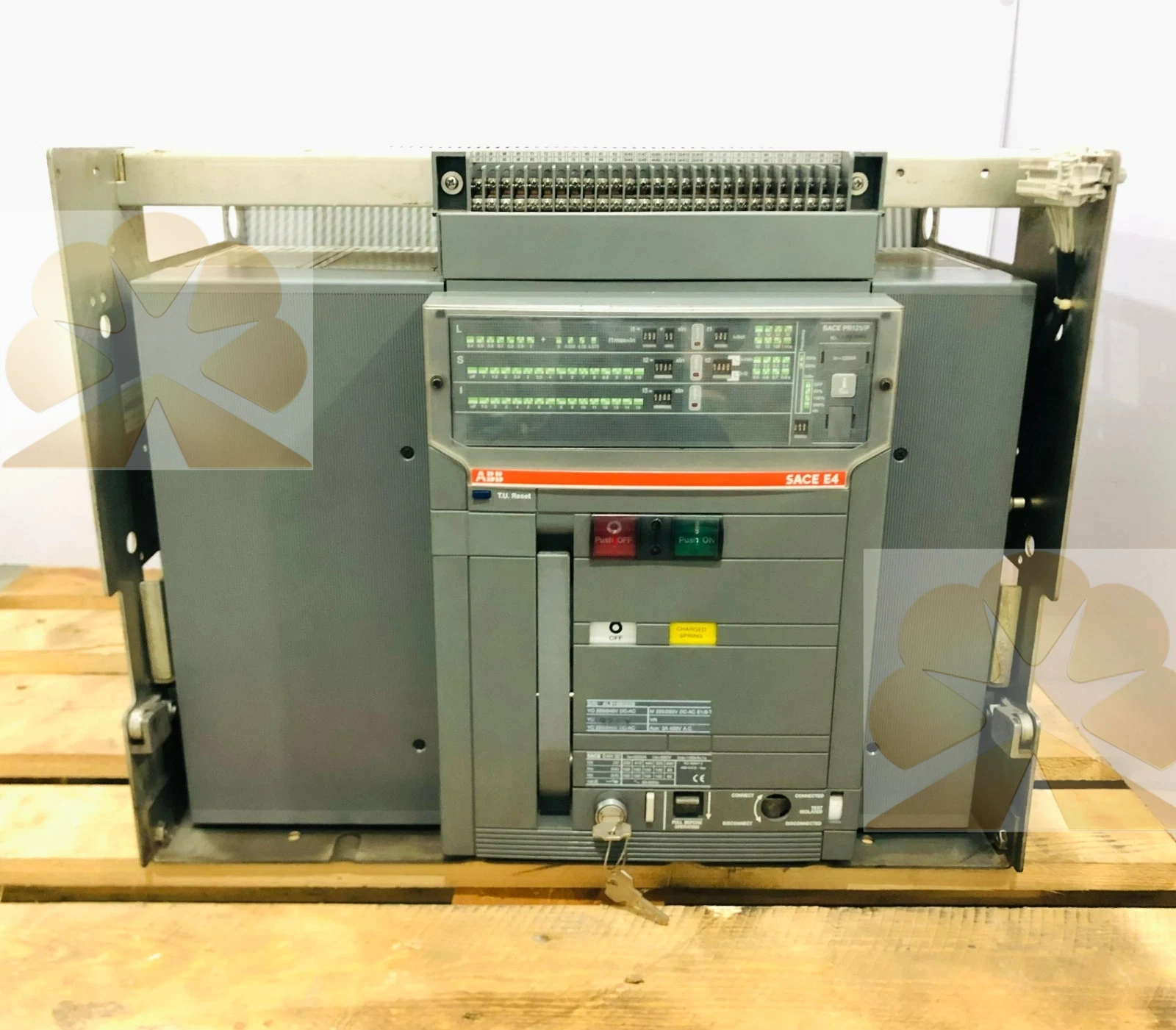

ABB SACE E4H 32 Air Circuit Breaker

Overview

The ABB SACE E4H 32 is a high-performance air circuit breaker belonging to the ABB SACE Emax series, designed for low-voltage power distribution systems. This ABB SACE E4H 32 provides reliable switching and comprehensive fault protection for high-current main feeders and heavy power loads. The ABB SACE E4H 32 supports fixed or withdrawable mounting configurations and can be fitted with various electronic release units to achieve customized protection logic. It is widely installed in industrial power plants, data centers and large commercial distribution panels to maintain stable power supply and quickly isolate electrical faults.

Features

This air circuit breaker adopts a sturdy spring-charged operating mechanism, supporting local manual operation and remote electrical control. Multi-protection functions including overload, short-circuit and earth fault protection protect the ABB SACE E4H 32 and downstream electrical equipment. The ABB SACE E4H 32 can be equipped with intelligent release modules and communication interfaces for real-time power monitoring and fault data transmission. Auxiliary and alarm contacts are available to send status feedback signals to PLC and SCADA systems. It delivers high short-circuit breaking capacity to safely interrupt severe fault currents, and its modular structure simplifies on-site maintenance and part replacement.

Specs

The ABB SACE E4H 32 has a rated current of 3200A with H-level short-circuit performance. It is available in 3-pole or 4-pole versions and adapts to standard AC low-voltage distribution networks. The breaker complies with IEC and UL international standards, and supports multiple terminal connection directions for flexible cabinet layout. Users can select LSI or LSIG protection curves on the electronic release to match different load characteristics. Its mechanical and electrical endurance is engineered to handle frequent switching cycles under continuous operating conditions.

Principle

The ABB SACE E4H 32 acts as a switching and protection component in low-voltage main circuits. Under normal working conditions, the ABB SACE E4H 32 conducts rated load current to deliver power to downstream circuits. When abnormal current such as overload or short circuit occurs, the electronic release captures fault signals and triggers the contact system to open rapidly. The internal arc extinguishing chamber of the ABB SACE E4H 32 efficiently suppresses electric arcs to complete safe fault current interruption. It can also accept remote opening and closing commands from upper automation platforms for centralized power management.

Applications

The ABB SACE E4H 32 is used for main incoming feeders, bus tie connections and large motor distribution circuits. Typical application scenarios include factory power distribution rooms, water treatment stations, mining power systems, building power supply and data center low-voltage switchgear cabinets. With intelligent communication support, the ABB SACE E4H 32 can connect to power monitoring networks for energy management and predictive maintenance. It is a preferred selection for new power distribution projects and cabinet renovation that require dependable high-current air circuit breakers.
