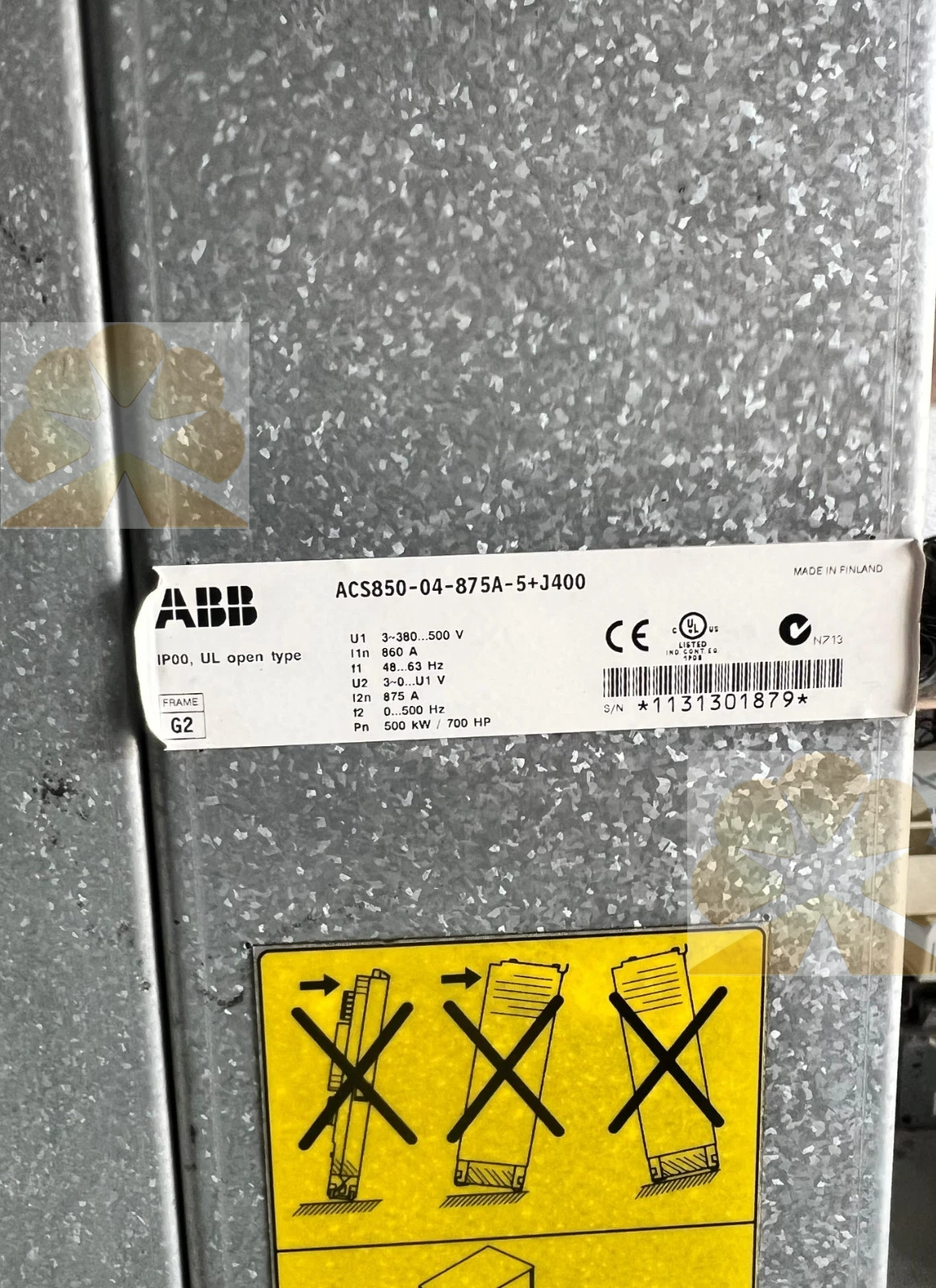

ABB ACS850-04-875A-5+J400 Variable Frequency Drive

Overview

The ABB ACS850-04-875A-5+J400 is a robust industrial variable frequency drive built for demanding process and machinery control applications. This ABB ACS850-04-875A-5+J400 belongs to the ABB ACS850 series, engineered to deliver stable torque regulation and reliable speed adjustment across continuous duty cycles. The ABB ACS850-04-875A-5+J400 supports flexible configuration with the J400 option integrated, expanding its compatibility for specialized communication and system interconnection needs. It is designed to work with three-phase power networks, offering consistent output performance for heavy-load industrial equipment in factories, material handling lines, and processing plants. The drive adopts a compact frame structure while maintaining high overload capacity, which helps users simplify cabinet layout and reduce overall installation workload.

Features

This variable frequency drive provides high-precision motor control including direct torque control to maintain steady operation even under sudden load changes. The built-in protection functions cover overcurrent, overvoltage, undervoltage, overheating and motor thermal protection to guard both the ABB ACS850-04-875A-5+J400 and the connected motor. The J400 option adds extended interface capabilities, making the ABB ACS850-04-875A-5+J400 easy to link with PLCs, HMI and other automation devices. Parameter settings can be adjusted locally or remotely, supporting quick commissioning and routine maintenance. It features low harmonic emission and efficient power conversion, helping cut energy consumption for long-running motors. Cooling design is optimized for continuous heavy-load operation, adapting to indoor industrial environments with moderate dust and temperature variation.

Specs

The ABB ACS850-04-875A-5+J400 runs on 380–500 V three-phase AC supply, with a rated output current of 875 A. It is a frame-type drive unit of the ACS850-04 cabinetless module style. The J400 suffix denotes the additional option package for enhanced communication and auxiliary connection functions. It supports both asynchronous induction motors and suitable synchronous motors within its power range. The drive carries standard industrial protection ratings and follows ABB global quality test standards to secure long service life. The switching frequency can be configured within the allowed range to balance noise level and control response as required by the application.

Principle

The ABB ACS850-04-875A-5+J400 converts fixed-frequency grid AC power into adjustable-frequency AC power to regulate motor speed and torque. Internal power semiconductors adjust output voltage and frequency in real time based on control commands. The core control algorithm continuously samples motor operating data and corrects output signals to keep torque stable. The J400 option board transmits and receives control signals between the drive and upper automation systems, enabling centralized monitoring and automatic operation. Closed-loop or open-loop control modes are selectable to match different motor feedback setups.

Applications

The ABB ACS850-04-875A-5+J400 fits a wide range of heavy-duty industrial driving scenarios. Common uses include large fans, water pumps, extruders, mixers, conveyor systems and processing machinery in mining, chemical, pulp and paper industries. It is suitable for applications that require stable speed control and occasional overload tolerance. With the J400 option, the ABB ACS850-04-875A-5+J400 can join distributed automation networks for plant-wide control. Users rely on this drive for energy saving retrofits and new production line builds that demand dependable variable speed control.
