Siemens 3WL9211-2AE21-2BA1Z

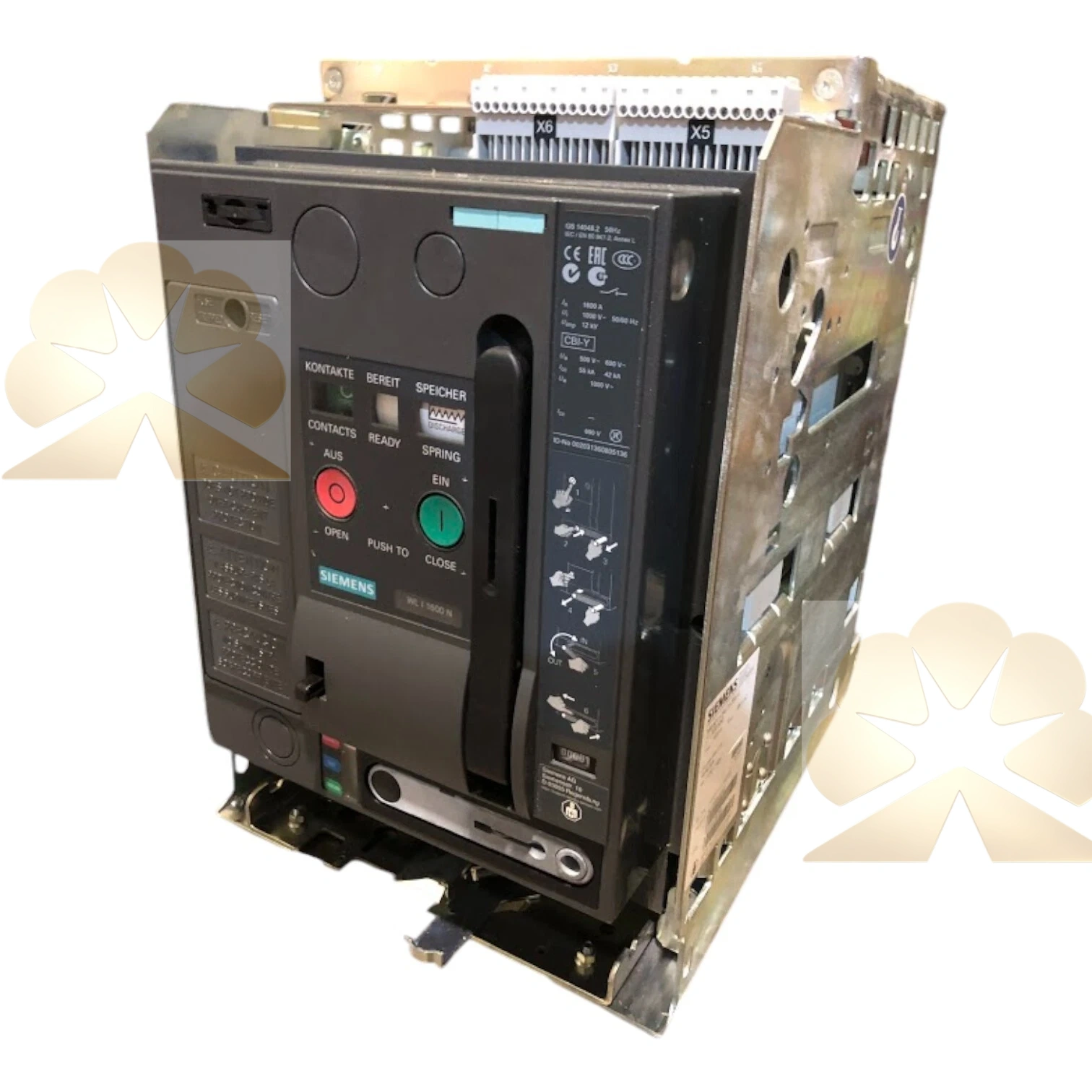

The 3WL9211-2AE21-2BA1Z is a withdrawable guide frame accessory built for Siemens SENTRON 3WL air circuit breaker, rated for 1600A and 690V AC low voltage distribution applications. This 3WL9211-2AE21-2BA1Z serves as the mounting cradle for the 3WL breaker, enabling rack-in, rack-out and test position operation for safe maintenance without fully de-energizing the upstream busbar. The 3WL9211-2AE21-2BA1Z comes with integrated shutters and isolation interlock structure, which blocks live busbar contacts automatically when the breaker is withdrawn for operator protection.

This 3WL9211-2AE21-2BA1Z supports rear horizontal connection layout and matches the mechanical interface of 1600A frame size 3WL breakers. The 3WL9211-2AE21-2BA1Z includes pre-installed auxiliary plug connectors for signal wiring of auxiliary contacts, trip units and communication modules. Panel builders fit this 3WL9211-2AE21-2BA1Z inside main incoming cabinets, motor control centers and power distribution switchboards for industrial substations and process plants. The mechanical interlock of the 3WL9211-2AE21-2BA1Z prevents racking movement when the breaker is closed, following IEC 60947-2 safety standards.

The 3WL9211-2AE21-2BA1Z is part of the legacy 3WL accessory portfolio, and the 3WL platform has been superseded by the newer 3WA series. Most available 3WL9211-2AE21-2BA1Z units on the market are surplus spare parts for cabinet retrofit and replacement of existing 3WL withdrawable switchgear. Its robust metal structure maintains stable alignment and connection performance during repeated racking cycles over long service periods.
