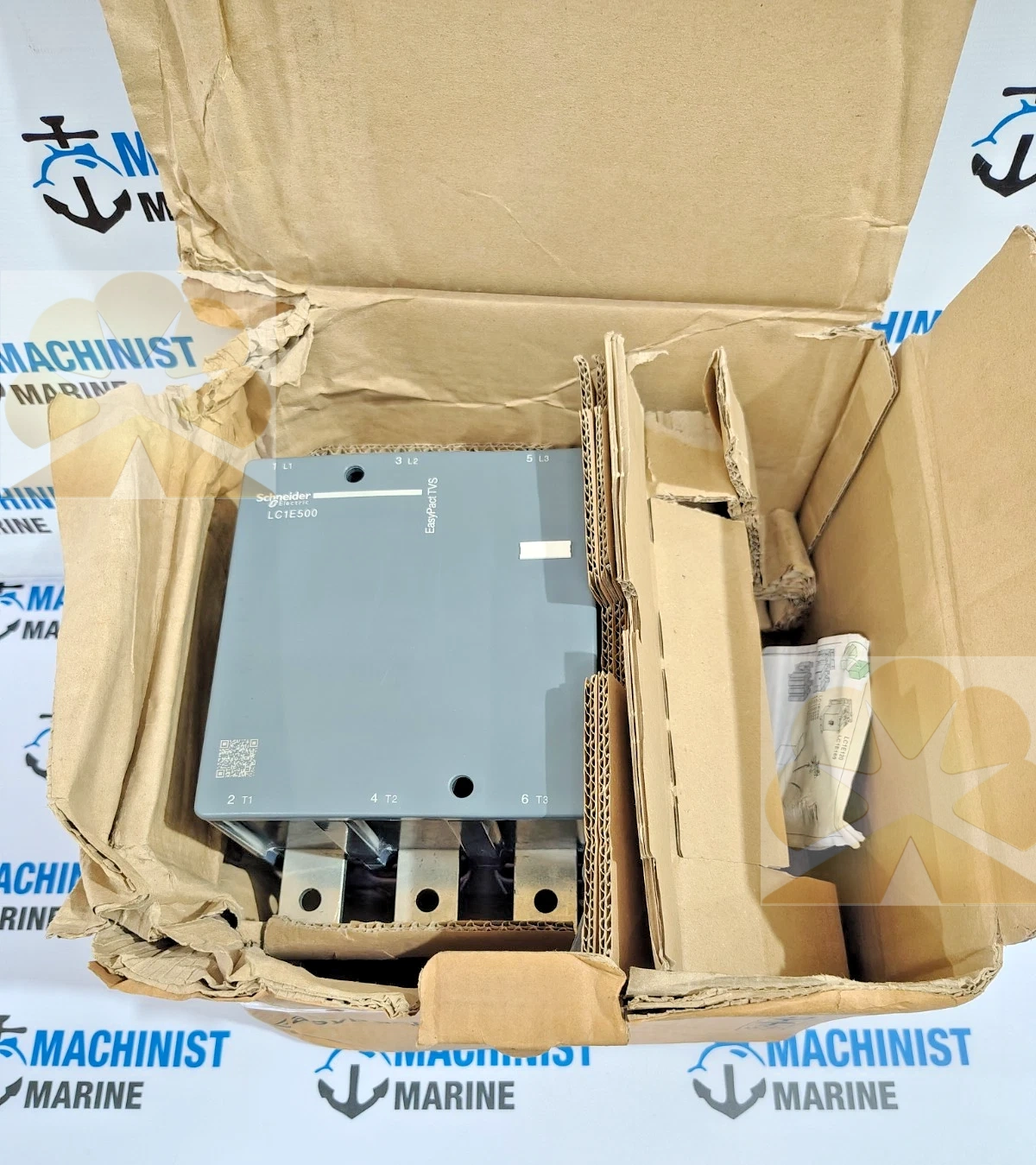

SCHNEIDER ELECTRIC EASYPAC TVS LC1E500 3-POLE POWER CONTACTOR

SCHNEIDER ELECTRIC LC1E500 is a 3-pole (3NO) heavy-duty AC power contactor from EasyPact TVS (Easy TeSys) series, rated operational current 500A under AC‑3 duty, suitable for low voltage motor and power circuit control in marine, industrial and offshore switchboard systems. The power contactor is designed to switch large three-phase motor loads, ballast pumps, fans and auxiliary machinery, controlled by AC coil with multiple optional coil voltage (24V,110V,220V,415V AC 50/60Hz). The power contactor can be fitted with optional auxiliary contacts (1NO+1NC) to feed back contactor ON/OFF status and fault events to PLC, marine alarm and HMI monitoring systems. The power contactor adopts silver alloy main contact material, low contact resistance, high arc extinguishing capacity to handle frequent motor start-stop cycles. The power contactor supports add-on accessories including surge suppressor, mechanical interlock and terminal shields for safety enhancement.

SCHNEIDER ELECTRIC LC1E500 uses robust flame-retardant plastic housing, IP20 protection rating for main body. The motor control contactor unit complies with IEC 60947‑4‑1 standard, Ith=700A thermal current at 40°C ambient, make capacity 5000A and breaking capacity 4000A at 440V AC. The motor control contactor unit uses multi-standard screw busbar terminals for convenient cable/busbar connection. The motor control contactor unit is engineered to withstand vibration and temperature variation, and marine approved versions are available for shipboard power panel installation. The motor control contactor unit is a cost-effective large contactor for heavy motor starter circuits.

SCHNEIDER ELECTRIC LC1E500 is widely installed on cargo ships, tankers and offshore platforms for remote control of large ballast pumps, fire pumps, ventilation fans and other high-power marine auxiliary motors. The industrial spare part can replace defective contactors to restore three-phase motor switching, contact status feedback and reliable load control rapidly. The industrial spare part matches original busbar mounting and coil wiring specifications for direct cabinet replacement. The industrial spare part has clear part marking for fast identification and stock management. The industrial spare part reduces vessel downtime during motor control cabinet overhaul and marine survey inspection.
