1. Basic Product Information

• Product Model：IS220PPROH1A (Spare Part No.: 336A4940CSP19)

• Manufacturer：General Electric (GE)

• Product Series：Speedtronic Mark VIe Turbine Control System

• Product Type：Turbine-Specific Protection I/O Module (Backup Turbine Protection I/O Pack)

• Core Positioning：As a key component of the Mark VIe platform's safety protection system, it is responsible for turbine emergency trip, overspeed protection, condition monitoring and master control redundancy verification, ensuring the safe and stable operation of gas/steam turbines throughout their life cycle.

2. Product Overview

3. Core Functions & Technical Features

1. Hardware-Level Overspeed Protection

   Built-in independent overspeed detection logic, independent of the master control program, monitors speed signals in real time through hardware circuits, and directly triggers an emergency trip (Trip) when the threshold is reached. It prevents turbine overspeed risks from a physical level and acts as the final line of defense for unit safety.

2. Dual Ethernet Redundant Communication

   Equipped with 2 independent 10/100Mbps Ethernet ports (ENET1/ENET2), supporting dual-channel communication link redundancy, with high reliability and low latency data transmission. It ensures real-time data interaction between the module and the Mark VIe master controller without interruption, adapting to GE's dedicated communication protocol.

3. Rich Signal Processing Capability

   Supports multi-type signal acquisition including analog, digital and speed pulses. It can directly connect on-site equipment such as LVDT/RVDT, pressure sensors, temperature transmitters, and vibration sensors without additional intermediate conversion devices, simplifying wiring and improving signal transmission stability.

4. Safety Redundancy Design

   Supports TMR (Triple Modular Redundancy) or simplex backup protection mode. It can cooperate with SPRO/TPRO series terminal boards to build a high-availability protection system; built-in watchdog timer (WDOG) and hardware reset circuit monitor its own operating status in real time, and automatically reset or trigger protection when abnormal.

5. Comprehensive Status Diagnosis

   The front panel is equipped with multiple sets of LED status indicators, covering power/attention (PWR/ATTN), Ethernet connection/transmission (LINK/TXRX, ENET1/ENET2), operating status, etc. It intuitively displays the module's working status for quick on-site fault troubleshooting.

6. Industrial-Grade Environmental Adaptability

   Operating temperature range: -20℃~+60℃, vibration resistance, electromagnetic interference resistance, meeting the usage requirements of industrial sites with pollution level 2; surface-mounted design, compatible with standard control cabinets, high integration, compact size, and no additional installation space occupation.

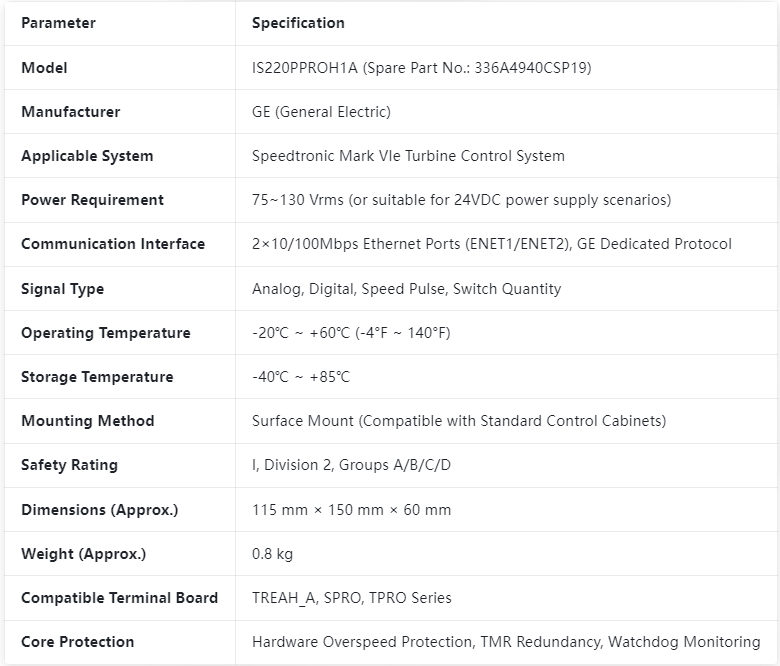

4. Key Technical Specifications

5. Typical Application Fields

1. Power Industry：Emergency trip protection, overspeed protection, and grid synchronization verification for gas/steam turbine generator sets, a core guarantee module for safe unit operation in power plants.

2. Oil & Gas Industry：Safety control of offshore platform compressors and gas turbine drive systems, as well as large fans and pump sets in refineries, adapting to high-humidity, high-interference marine/chemical environments.

3. Aeroderivative Turbines：Emergency trip and condition monitoring of aeroderivative turbines, meeting aviation-level high-reliability and high-response control requirements.

4. Industrial Automation：Linking with the Bently Nevada 3500 vibration monitoring system to build a complete rotating machinery protection system, suitable for scenarios requiring high-precision control such as metallurgy, chemical industry, and manufacturing.

6. Product Advantages

1. Original-Equipment Compatibility：Designed exclusively for the Mark VIe system, it is seamlessly compatible with the GE turbine control platform with no compatibility risks and no additional debugging or retrofitting required.

2. Maximized Safety Redundancy：Hardware-level overspeed protection + TMR redundant architecture far exceed the safety level of ordinary I/O modules, meeting industrial safety standard requirements.

3. High Reliability & Low Maintenance：High integration, simplified wiring, strong anti-interference capability, long-term operational stability, reducing on-site maintenance costs and shutdown risks.

4. Convenient Diagnosis：Front-panel LED status indicators + comprehensive fault feedback mechanism support quick problem location and shorten fault troubleshooting time.
