1. Product Brief

2. Model Code Definition

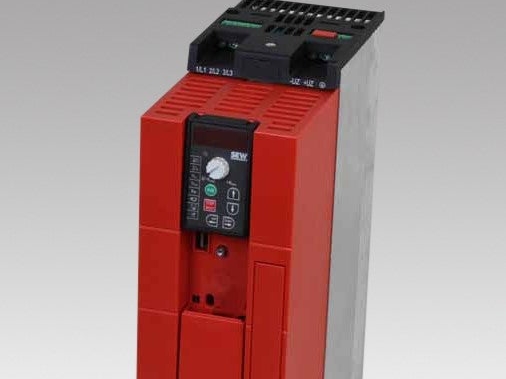

• MDX60A: MOVIDRIVE® MDX60A series drive uniteero

• 0074: Rated output power 7.5 kW (at 400 V)

• 5: 3‑phase input 380–500 V ACeero

• A3: Standard version, no built‑in EMC filtereero

• 4: With integrated brake chopper (4‑quadrant operation)eero

• 00: Standard hardware configurationeero

3. Core Electrical Data

Mains Input

• Voltage: 3×380 V (‑10%) … 3×500 V (+10%)

• Frequency: 50/60 Hz ±5%

• Rated input current: 15.5 A (at 400 V)

Motor Output

• Rated power: 7.5 kW (10 HP)

• Rated current: 16.0 A (4 kHz PWM)

• Apparent power: 11.2 kVA

• Output voltage: 0 … input voltage

• Output frequency: 0–180 Hz (VFC); 0–500 Hz (vector)

• Overload capability: 125% for 60 s, 150% for 3 s

• PWM frequency: 4/8/16 kHz (adjustable)

• Brake chopper: Integrated, handles regenerative energy

4. Control & Performance

• Control modes:

  • VFC: Sensorless V/Hz control (general applications)

  • CFC: Encoder‑based vector control (high‑precision tasks)

• Speed range: ‑6000 … +6000 rpm; resolution 0.2 rpm

• Flying restart: Smooth restart onto rotating motors

• Auto motor identification: Offline autotune for accurate parameter matching

• Energy‑saving mode: Optimizes efficiency at light loads

5. I/O & Communication

• Analog input: 0–10 V / ±10 V (speed reference)

• Digital I/O: 8 programmable 24 V DC inputs, 6 relay outputs

• Motor thermistor interface: For thermal protection

• Communication: SBus (system bus); optional Profibus DP, CANopen, Modbus RTU, EtherCAT

6. Mechanical & Environmental

• Protection class: IP20 (panel‑mount)

• Dimensions (W×H×D): 130 × 335 × 294 mm

• Weight: 6.2 kg

• Ambient temperature: 0 … +40 °C (derate 2%/°C above 40 °C)

• Storage temperature: ‑25 … +70 °C

• Cooling: Forced ventilation with temperature‑controlled fan

7. Protection Functions

• Overcurrent, overvoltage, undervoltage, overtemperature

• Ground fault, motor overheat, short‑circuit protection

• Fault alarm & safe stop on trip

8. Typical Applications

• Conveyor systems (logistics, food, automotive)

• Cranes & hoists (frequent start/stop, regenerative loads)

• Pumps & fans (HVAC, water treatment)

• Packaging & processing machinery

9. Certifications

• CE (EN 61800‑3, EN 60204‑1)

• UL 508C, CSA

• RoHS compliant
