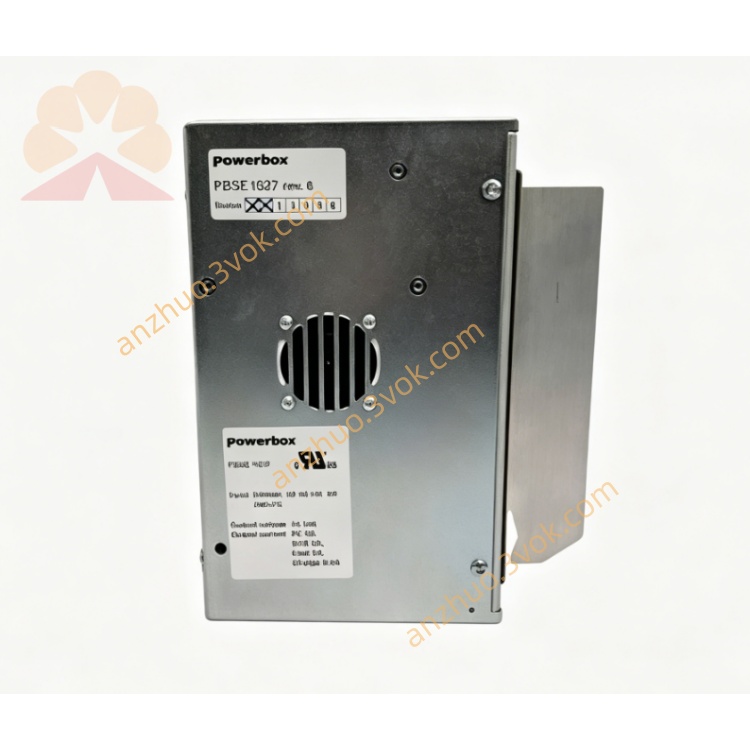

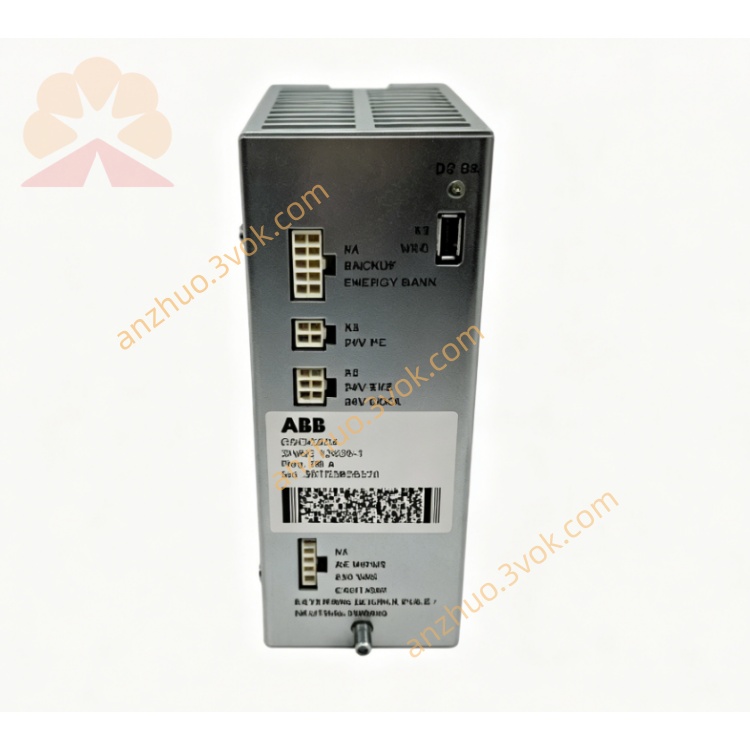

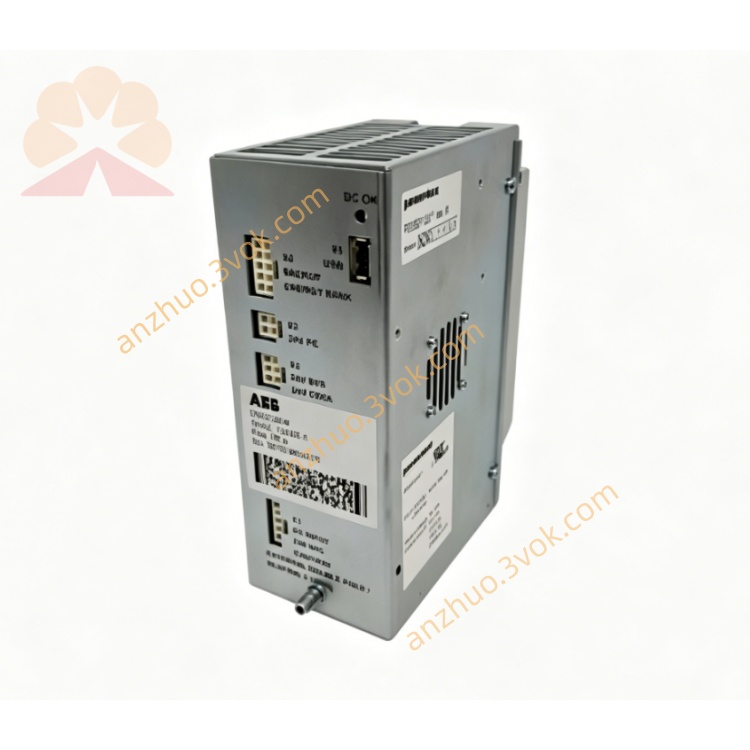

ABB DSQC604 / 3HAC12928-1 (English Version)

Basic Identification

Model: DSQC604

Part Number: 3HAC12928-1

Manufacturer: ABB Robotics

Product Type: Power Supply Unit

Applicable System: ABB IRC5 Robot Controller

General Description

DSQC604 is an internal switching power supply module dedicated for ABB IRC5 industrial robot controller. It provides stable DC power output for the robot control cabinet, supplying power to main CPU, drive unit, I/O modules and communication boards. It features overvoltage, overcurrent and short-circuit protection, with high stability and strong anti-interference for continuous industrial operation.

Technical Specifications

• Input Voltage: AC 200–240 V

• Output Voltage: 24 VDC standard

• Output Power: Industrial rated power for IRC5 cabinet

• Protection: Over voltage, over current, short circuit, over temperature

• Cooling: Natural convection / air cooling

• Operating Temperature: 0 °C ~ +55 °C

• Storage Temperature: −20 °C ~ +70 °C

• Relative Humidity: 5% ~ 95% RH, non-condensing

• Protection Class: IP20

• Mounting: Built-in installation inside IRC5 controller cabinet

Key Features

1. Original dedicated power supply for ABB IRC5 robot controller.

2. Multiple built-in protection functions ensure equipment safety.

3. Stable voltage output, suitable for long-time continuous operation.

4. Compact structure, easy replacement and maintenance.

5. Industrial EMC design, anti-interference for factory harsh environment.
