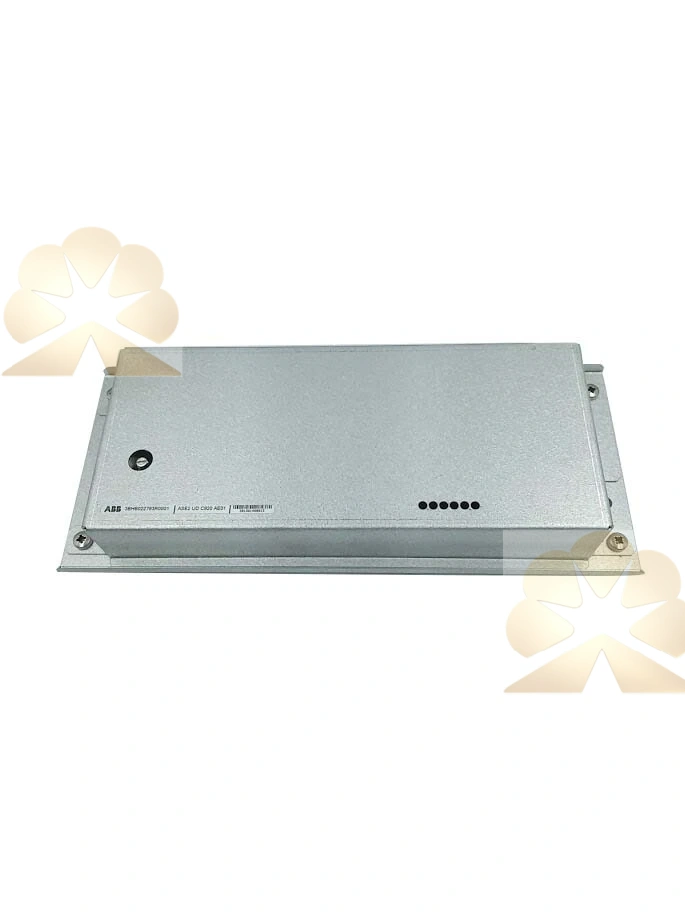

ABB 3BHB022793R0001 ASE2 UD C920 AE01 Gate Interface Board

The ABB 3BHB022793R0001 is a high-speed gate interface board developed for ABB medium voltage drive and power conversion platforms, also marked as ASE2 UD C920 AE01. This ABB 3BHB022793R0001 serves as an optical link interface between the main control unit and power semiconductor stacks, transmitting firing pulses and returning device status feedback for rectifier and inverter sections. The ABB 3BHB022793R0001 is a critical spare part for maintenance and retrofit of ABB PCS6000 and ACS6000 medium voltage converters.

The ABB 3BHB022793R0001 adopts fiber optic communication to achieve galvanic isolation between low-voltage control circuits and high-power power circuits, effectively suppressing electromagnetic interference in high-voltage converter cabinets. The optical ports on the ABB 3BHB022793R0001 ensure fast and stable signal transmission, which is essential for accurate timing of thyristor or IGBT firing sequences. It runs on 24V DC internal logic power supply and fits the original rack slot layout of the converter frame, supporting direct replacement without major mechanical modification.

This ABB 3BHB022793R0001 is designed for continuous heavy-duty operation in industrial power conversion systems. Status indicators on the ABB 3BHB022793R0001 provide visual diagnosis for optical link loss, power fault and communication timeout, helping field technicians quickly locate abnormal points during troubleshooting. It follows ABB’s industrial EMC and quality specifications to match the timing and protection logic of the original medium voltage drive system.

The ABB 3BHB022793R0001 is widely used in large variable speed applications including mine hoists, rolling mills, pipeline compressors and fan drives that use ABB medium voltage converters. Replacing a faulty interface board with the ABB 3BHB022793R0001 restores pulse control and power conversion functions, reducing unplanned downtime of high-value production assets. Static protection must be observed during handling of the ABB 3BHB022793R0001 to avoid damage to sensitive optical and electronic components.
