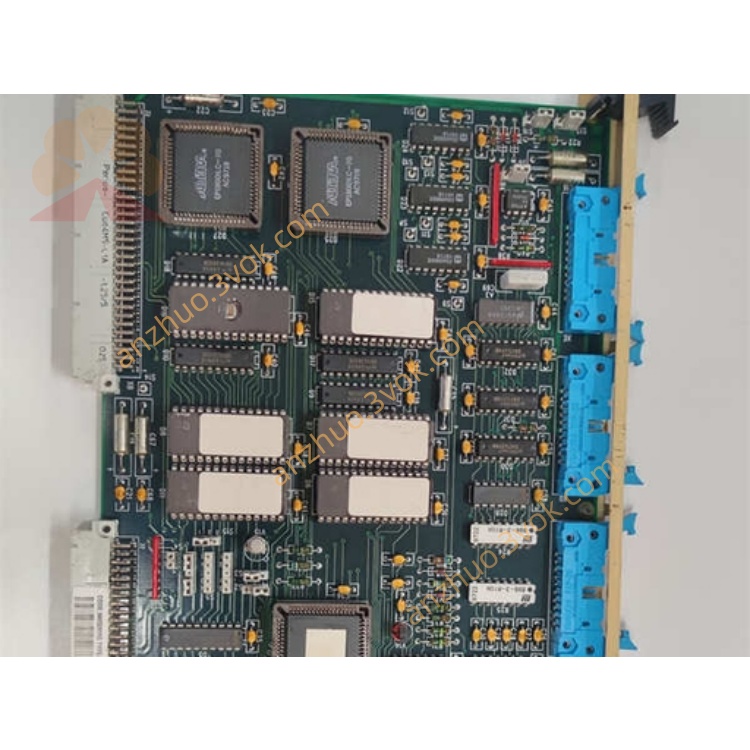

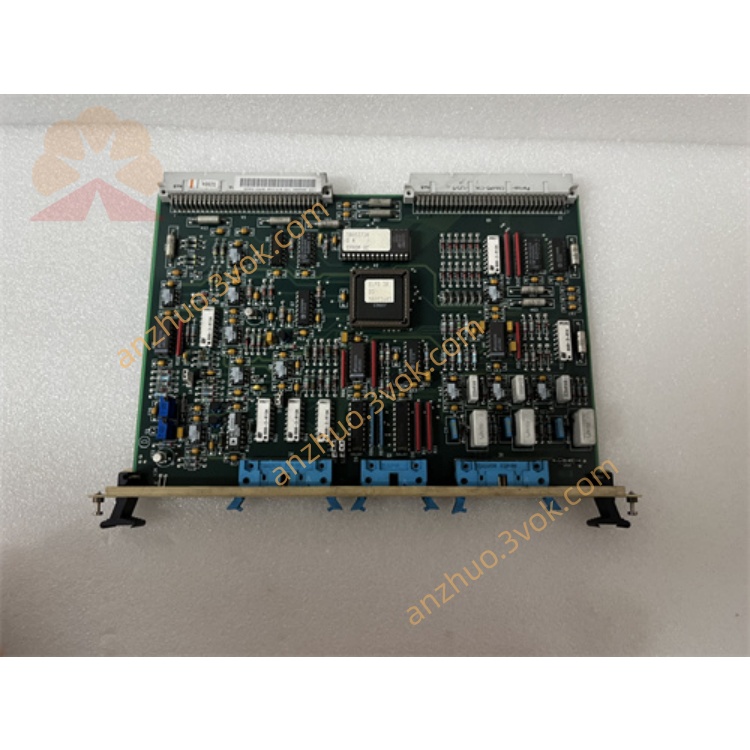

ABB SCYC51010 (58052515G)

Basic Identification

Model: SCYC51010

Alternate Part No: 58052515G

Manufacturer: ABB

Product Type: Pulse Output Board / Digital Control Module

Applicable System: ABB System 800xA, Advant OCS, Excitation & Rectifier Control, S100 I/O Rack

General Description

SCYC51010 is a 6‑channel high‑precision trigger pulse board in the ABB SCYC series (including SCYC51020:12‑channel, SCYC51030:24‑channel). It generates accurate trigger pulses for thyristor rectifier bridges in generator excitation systems and industrial drives, also providing isolated digital I/O for interlock and sequence control.

Technical Specifications

Electrical

Supply Voltage: 24 VDC (±10%)

Power Consumption: ≤ 15 W

Isolation Voltage: 1000 VDC (I/O isolation)

Pulse & I/O

Pulse Channels: 6 independent output channels

Pulse Frequency: 1 Hz – 50 kHz configurable

Pulse Width: 10 μs – 10 ms adjustable

Digital I/O: 8DI / 8DO (opto‑isolated)

Input Response Time: < 2 μs

Communication

Onboard Bus: ABB dedicated backplane bus

Protocols: Modbus RTU, RS‑485, Ethernet (optional)

Environmental

Operating Temp: −20 °C … +70 °C

Storage Temp: −40 °C … +85 °C

Humidity: 5%–95% RH, non‑condensing

Protection Class: IP20

Mechanical

Dimensions (H×W×D): 120 × 80 × 25 mm

Weight: ~0.4 kg

Mounting: Standard ABB rack / DIN rail, hot‑swappable

Key Features

6‑channel Precision Pulses: Optimized for three‑phase rectifier excitation control。

High Isolation & EMC: 1000 V isolation and industrial EMC for power plant environments。

Fast Response: <2 μs input response for high‑speed interlock and pulse capture。

Modular & Scalable: SCYC series offers 6/12/24‑channel options for different power ratings。

Hot Swap & Redundancy: Online replacement and redundant operation for zero downtime。

Application Scope

Generator excitation systems, thyristor rectifier units, power plants, metallurgy, chemical, and process automation industries。
