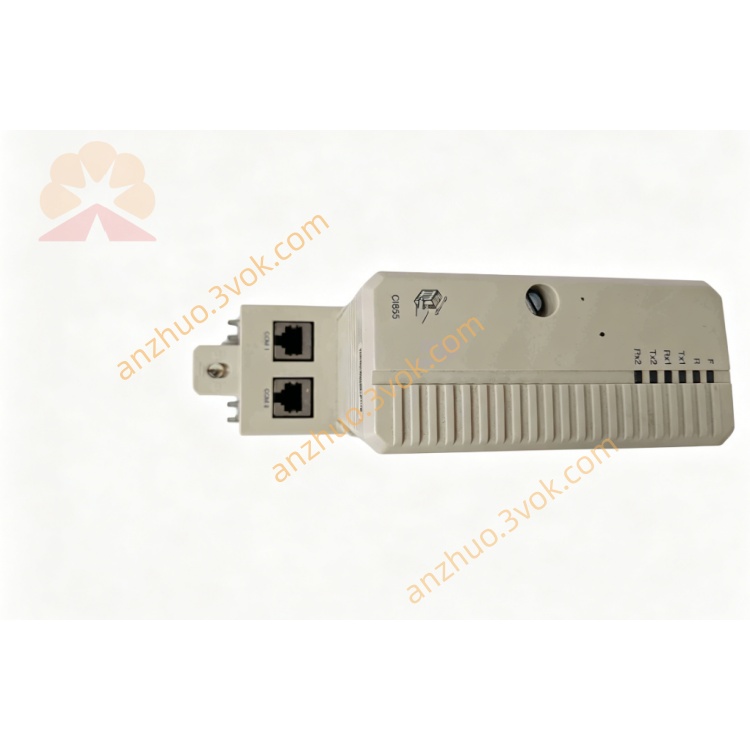

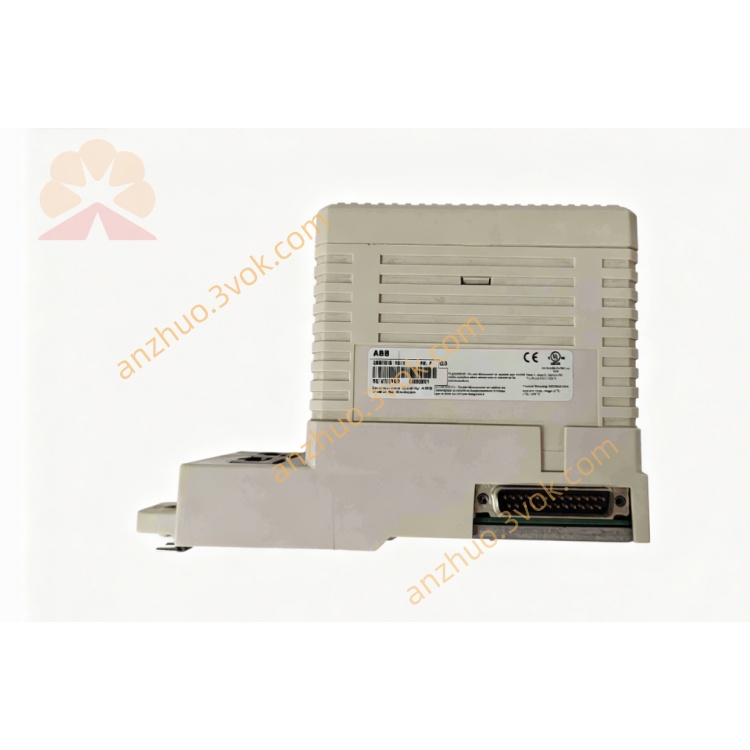

ABB CI855K01 3BSE018106R1 | English Datasheet

General Information

Model: CI855K01

Part Number: 3BSE018106R1

Manufacturer: ABB

Product Type: MB300 MasterBus Ethernet Communication Interface Kit

Kit Contents: CI855 Interface Module + TP853 Base Plate

Applicable System: AC800M Controller / 800xA DCS / Advant OCS

Communication Specifications

Protocol: ABB proprietary MasterBus 300 (MB300) Industrial Ethernet

Port: Dual RJ45 Ethernet ports

Baud Rate: 10 Mbit/s

Cycle Rate: 200 datasets/s

CEX Bus Max Nodes: 12 units

Slave Station Capacity: Up to 31 MB300 slave devices

Communication Mode: Master station, deterministic real-time fieldbus

Electrical Data

Supply Voltage: 24 VDC

Typical Current: 150 mA @ 24 VDC

Power Consumption: Low power industrial grade

Electrical Isolation: Interface & backplane isolation

Environmental Specifications

Operating Temperature: +5 °C ~ +55 °C

Storage Temperature: −40 °C ~ +70 °C

Humidity: 5% ~ 95% RH, non-condensing

Protection Class: IP20 (EN60529 / IEC 529)

Corrosion Grade: G3 (ISA 71.04)

Certifications: CE, DNV-GL, BV, LR, RoHS Compliant

Mechanical Data

Dimensions (H×W×D): 186 × 59 × 127.5 mm

Net Weight: 0.7 kg

Shipping Weight: 1.5 kg

Mounting: Standard ABB rack mounting, matched with TP853 base

Key Features

High-speed stable MB300 fieldbus communication for AC800M

Dual Ethernet ports support network redundancy topology

Hot pluggable & online fault diagnosis

Suitable for power, chemical, metallurgy process control

Long-term stable operation in harsh industrial environments

Compatibility

Controller: ABB AC800M series

Platform: System 800xA, Advant Master OCS

Engineering Software: Control Builder M
