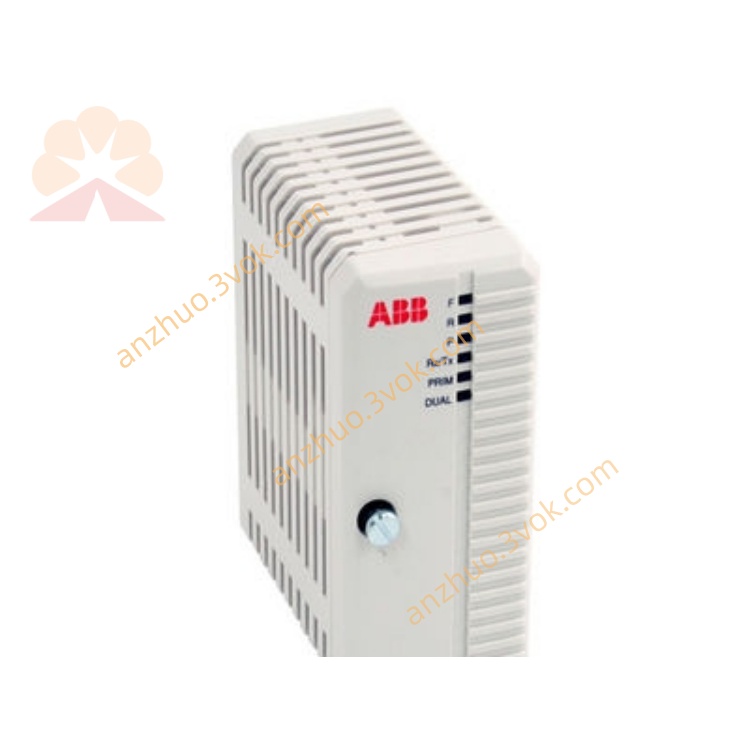

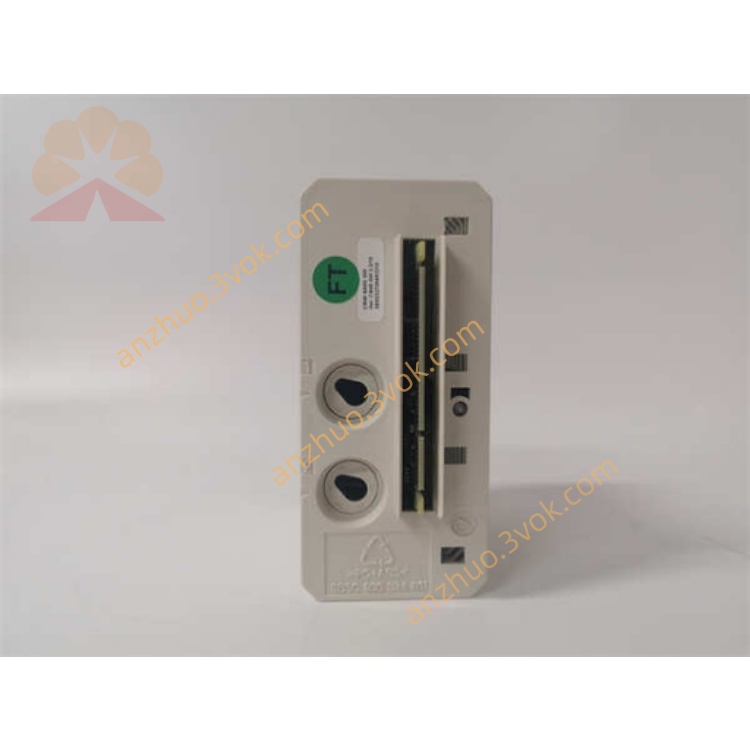

Model: CI840A

Part No.: 3BSE041882R1

Type: PROFIBUS DP‑V1 Slave Interface Module (S800 I/O, AC 800M/800xA)

Manufacturer: ABB

Protocol: PROFIBUS DP‑V1 (IEC 61158/EN 50170), Slave

Baud rate: 9.6 kbps – 12 Mbps (auto‑detect)

Connector: 9‑pin D‑Sub (PROFIBUS)

Node address: 1–127

Supply: 24 VDC (19.2–31.2 VDC)

Current: 190 mA (typical)

Power: ~5 W

Isolation: Interface ↔ backplane

Operating temp: −20 °C to +60 °C

Storage temp: −40 °C to +70 °C

Humidity: 5–95 %RH (non‑condensing)

Protection: IP20

Certifications: CE, UL, ATEX, DNV‑GL, RoHS

Dimensions (H×W×D): 119 × 54 × 96 mm

Weight: ~0.2 kg

Mounting: S800 rack (TU846 standard / TU847 redundant base)

PROFIBUS DP‑V1 slave, HART pass‑through

Redundancy: Line + module (2×CI840A + TU847)

Hot swap & Hot Configuration In Run (HCIR)

I/O ModuleBus supervision, isolated I/O power
