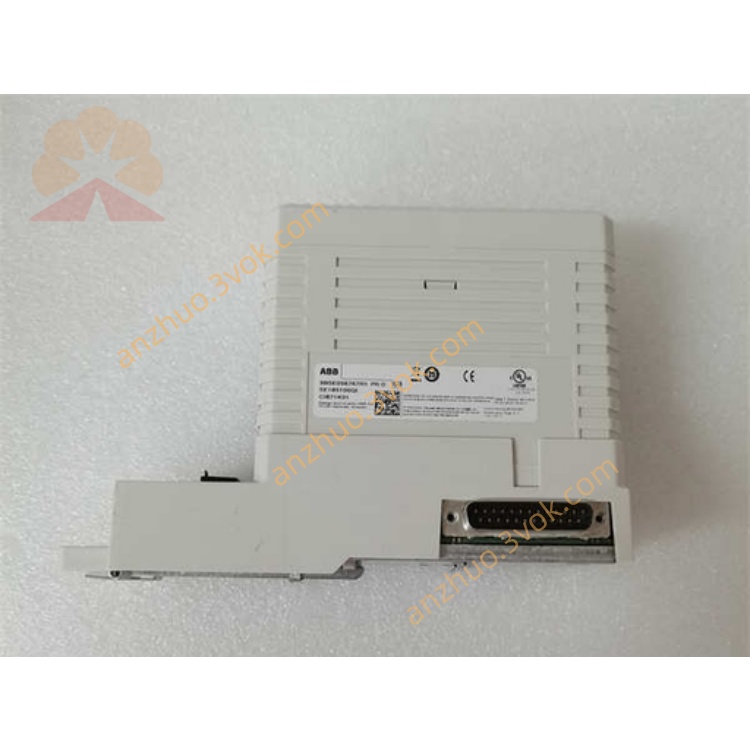

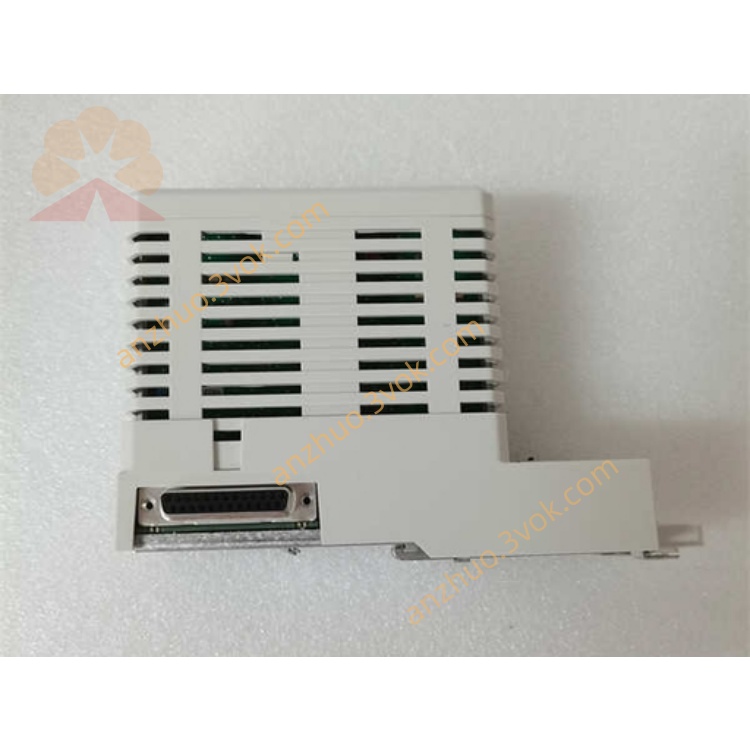

ABB CI871K01 (3BSE056767R1) – PROFINET IO Communication Interface

Brand: ABB

Model: CI871K01

Material No.: 3BSE056767R1

Type: PROFINET IO Controller Interface Module (for AC 800M)

Kit includes: CI871 module + TP867 baseplate

1. General Description

CI871K01 is a high-performance PROFINET IO controller for the ABB AC 800M controller (800xA system). It connects the controller to PROFINET IO field devices (I/O, drives, etc.) via 10/100 Mbps Ethernet, supporting real-time RT Class 1 communication (PROFINET V2.2).

2. Key Specifications

Communication

Protocol: PROFINET IO (Controller, RT Class 1, V2.2)

Ports: 2 × RJ45 (10/100 Mbps, switch integrated)

Topology: Star/line (integrated switch, no external switch needed)

Cycle time: 4–10 ms (typical)

Devices: Up to 128 PROFINET IO devices

Electrical

Supply: 24 VDC (±10%)

Current: ~160 mA

Power: ≤ 3.8–5 W

Environmental

Operating temp: −25 °C to +70 °C

Storage temp: −40 °C to +85 °C

Humidity: 5–95 %RH, non‑condensing

Protection: IP20

Certifications: CE, UL, cUL, CSA, RoHS

Mechanical

Dimensions (H×W×D): 186 × 59 × 127.5 mm

Weight: 0.7 kg

3. Main Features

Dual RJ45 with integrated switch: Daisy‑line topology without external switches.

Real‑time RT Class 1: Deterministic I/O for process automation.

Hot swap: Online replacement without system shutdown.

GSDML: Standard device description for easy engineering.

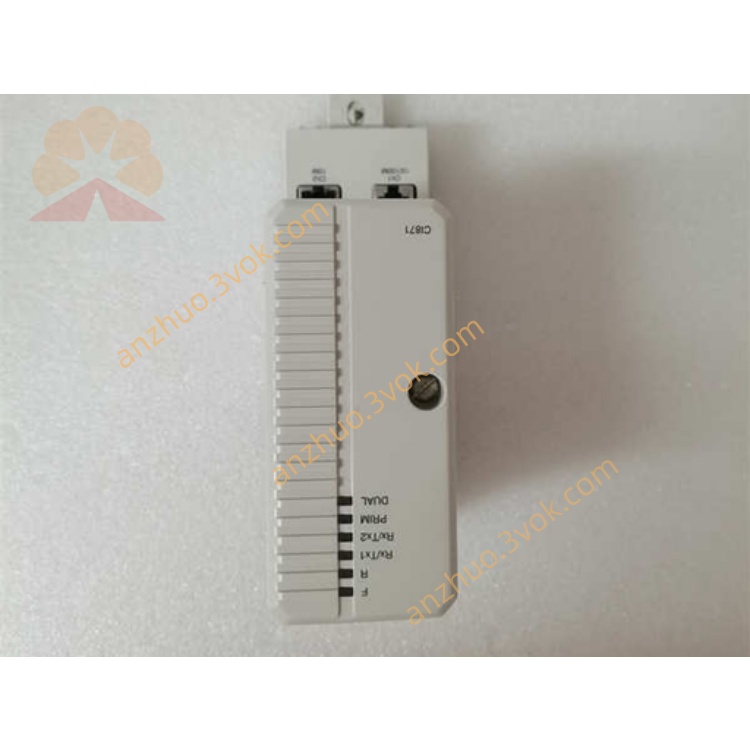

Diagnostics: LEDs for RUN, COM, ERR; full bus/device diagnostics in 800xA.

Redundancy support: Works with AC 800M redundant controllers.

4. Compatibility

Controller: AC 800M (all PM85x/PM86x models)

System: 800xA, Compact Product Suite

Engineering: Control Builder M / Automation Builder

Devices: Any PROFINET IO V2.2 slave (S800 I/O, drives, third‑party)

5. Installation & Wiring

Mount on AC 800M rack (DIN rail).

Connect 24 VDC to TP867 baseplate.

Connect PROFINET cables to RJ45 ports; use CAT5e/CAT6.

Configure IP address/device name via Control Builder M.

Enable diagnostics and redundancy as needed.

6. Ordering Information

Order no.: 3BSE056767R1

Description: CI871K01 PROFINET IO Interface, AC 800M (incl. TP867)
