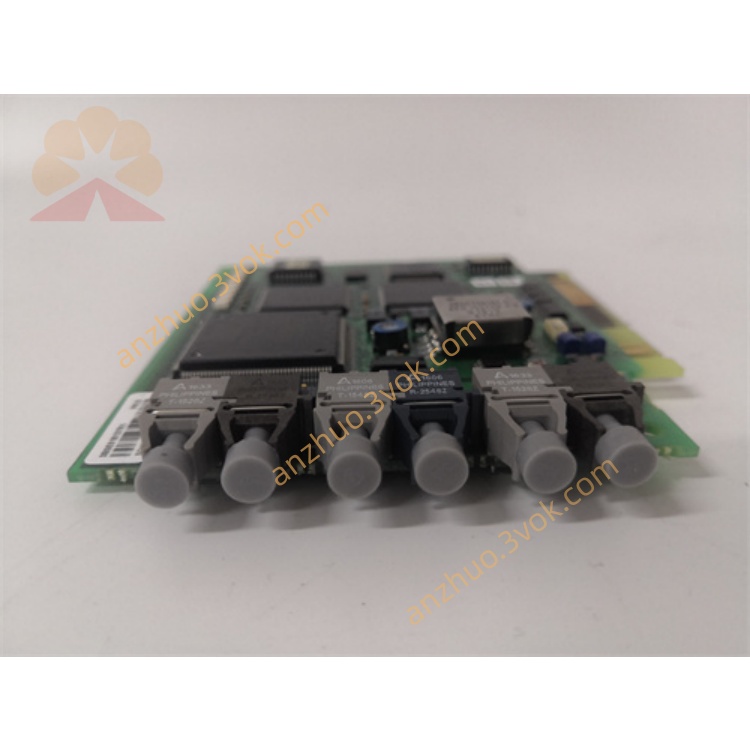

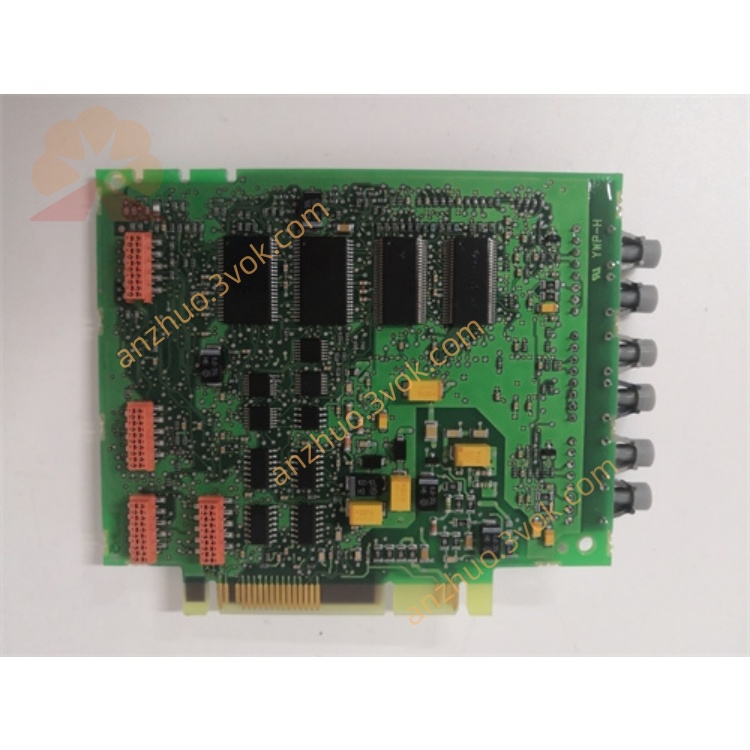

CI858-1 3BSE018137R1

Basic Info

Model: CI858-1

Part No: 3BSE018137R1

Brand: ABB

Type: AF100 Fieldbus Communication Interface Module

Applicable system: ABB AC800M / 800xA Control System

General Description

CI858-1 is an AF100 communication interface module used for connecting AC800M controller to AF100 industrial fieldbus. It realizes data interconnection between controllers, I/O stations and other AF100 compliant devices, widely used in process industry DCS and automation control.

Technical Specifications

Communication Protocol: AF100 Fieldbus

Interface: Special AF100 bus terminal interface

Working Voltage: 24 VDC

Operating Temperature: 0 °C ~ +55 °C

Storage Temperature: -40 °C ~ +70 °C

Protection Grade: IP20

Support function: Hot swap, online configuration, bus redundancy matching, system expansion communication

Main Features

Dedicated for AF100 bus networking of AC800M system

Support system internal controller interconnection and remote I/O communication

Hot swappable, can be replaced online without stopping production

Stable anti-interference performance, suitable for chemical, power, metallurgy, water treatment and other industrial occasions

Match ABB original base plate, standard rack installation

Compatibility

Controller: AC800M Series

System Platform: 800xA, Advant OCS

Matching base: Supporting dedicated backplane base for CI858 series
