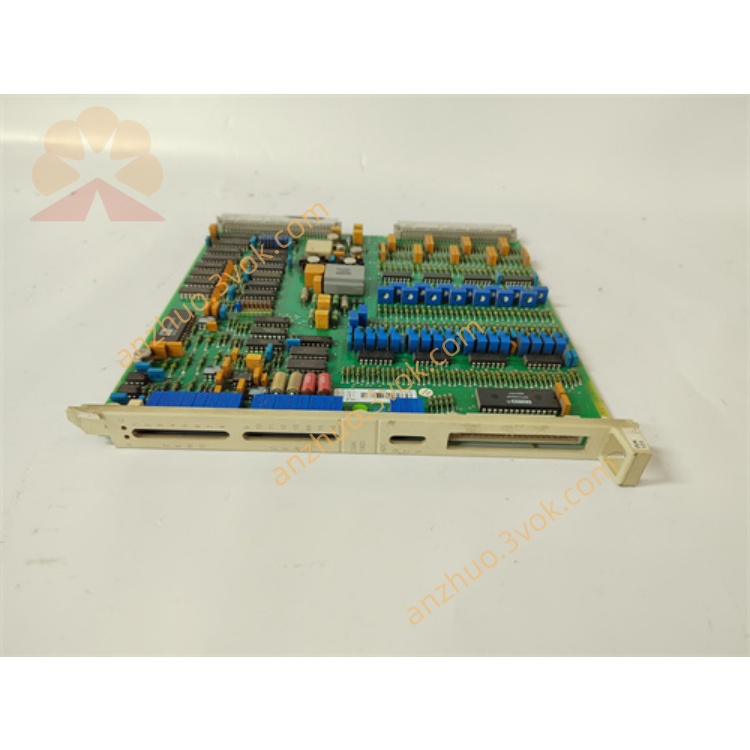

DSAI130D 3BSE003127R1v
DSAI130D / 3BSE003127R1 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Enhanced Analog Input Module (Advant OCS Series)
Part Number Combination: DSAI130D (Module Assembly), 3BSE003127R1 (Official Factory Part Number)
Application: ABB Advant OCS DCS system, power plant process monitoring, steam turbine auxiliary system, high-stability analog signal acquisition, industrial pressure and flow signal collection
Description
DSAI130D / 3BSE003127R1 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Enhanced Analog Input Module (Advant OCS Series)
Part Number Combination: DSAI130D (Module Assembly), 3BSE003127R1 (Official Factory Part Number)
Application: ABB Advant OCS DCS system, power plant process monitoring, steam turbine auxiliary system, high-stability analog signal acquisition, industrial pressure and flow signal collection
1. DSAI130D Technical Parameters
Channel Configuration: 8 Galvanic Isolated Analog Input Channels
Input Signal Type: 4~20 mA DC Standard Current Signal
Resolution: 14-bit High-precision Analog Conversion (Upgraded Version)
Sampling Frequency: 120 Hz Adjustable Sampling Rate
Supply Voltage: 24 VDC Auxiliary Power Supply
Current Consumption: ≤ 0.58 A @24VDC
Total Power Dissipation: ≤ 3.45 W
Bus Interface: Backplane High-speed Parallel Bus
Isolation Voltage: 2500 Vrms Galvanic Isolation
Working Temperature: -25℃ ~ +70℃
Storage Temperature: -40℃ ~ +85℃
Ambient Humidity: 5%~95% RH (Non-condensing)
Protection Grade: IP20
2. Internal Circuit & Function Description
Core Function: Industrial analog current signal acquisition, high-precision analog-to-digital conversion, signal conditioning and backplane high-speed data transmission
Signal Processing: Multi-stage hardware filtering, harmonic noise suppression, intelligent temperature drift compensation and nonlinear error calibration
Isolation Design: Each channel independent reinforced electrical isolation, effectively eliminate crosstalk between adjacent analog signals
Anti-interference: Industrial EMI&EMC anti-surge, low-frequency and high-frequency composite interference suppression circuit
Protection Mode: Overvoltage, overcurrent, reverse polarity, surge transient and electrostatic protection
Structure: Upgraded old-generation rack module, industrial enhanced PCB, conformal coating anti-corrosion and moisture-proof treatment
3. Usage Instructions
Installation: Fixed rack slot installation; keep horizontal and stable arrangement in Advant OCS controller cabinet.
Wiring: Use high-quality shielded twisted-pair cables; single channel independent wiring, strictly separate analog cables and power cables.
Debugging: Complete precision range calibration, zero offset and span correction via dedicated system configuration software.
Operation: Observe multi-channel status indicators; monitor real-time analog acquisition precision and data stability.
Maintenance: Regularly clean surface dust and moisture; check terminal fastening strength and shielding grounding condition every six months.
4. Important Precautions
Do not install in humid, condensed water, dusty and corrosive gas environments.
Keep away from high-power cables and frequency converters to avoid analog signal induction interference.
Cut off all power supply before wiring, disassembly and module replacement operations.
Prohibit over-range voltage and current input to prevent internal operational amplifier and sampling chip damage.
Avoid severe vibration and mechanical impact during transportation and installation.
Ensure cabinet ventilation and heat dissipation to prevent signal drift caused by high temperature.
Unauthorized disassembly and modification of internal components is strictly prohibited.
5. General Technical Characteristics
Certification: CE, UL, RoHS
Installation Method: Rack Slot Mount
