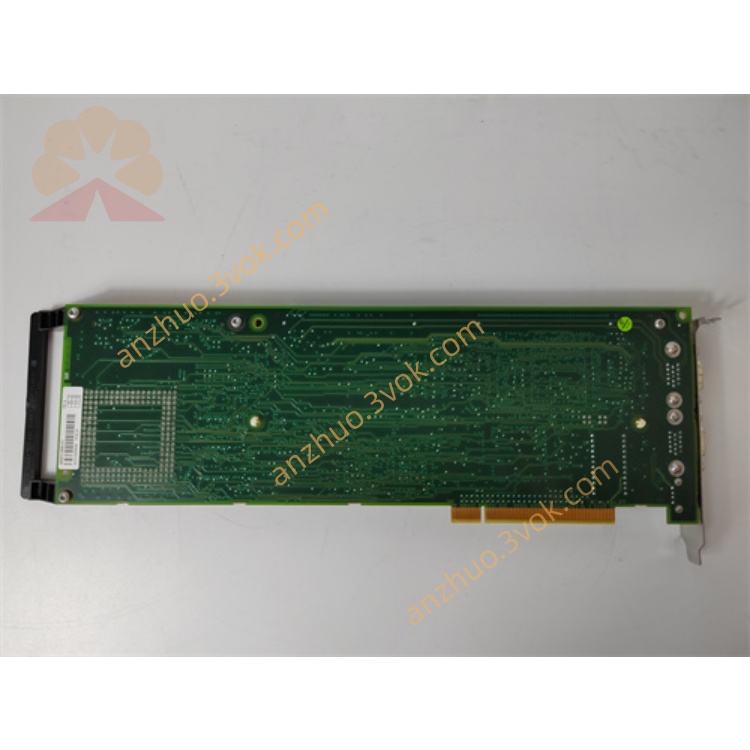

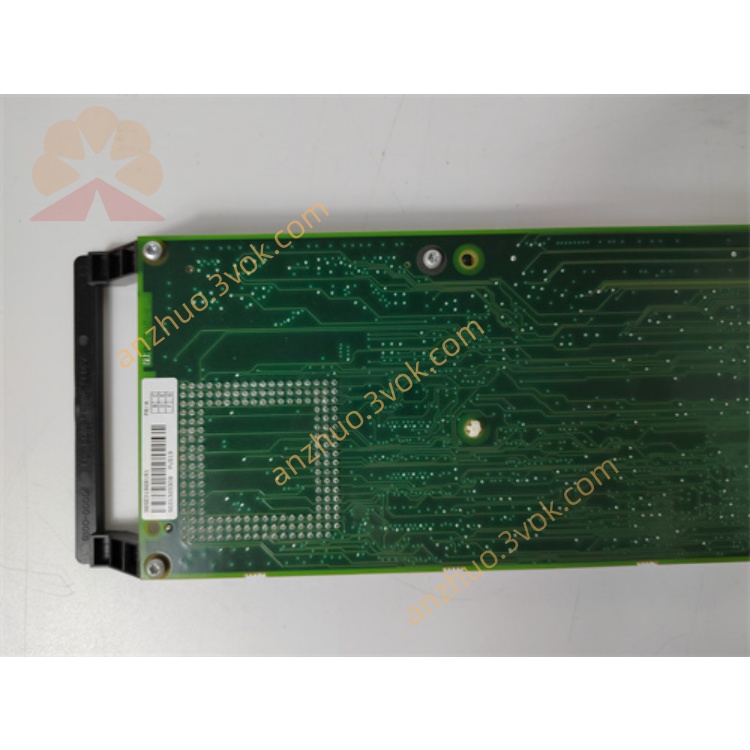

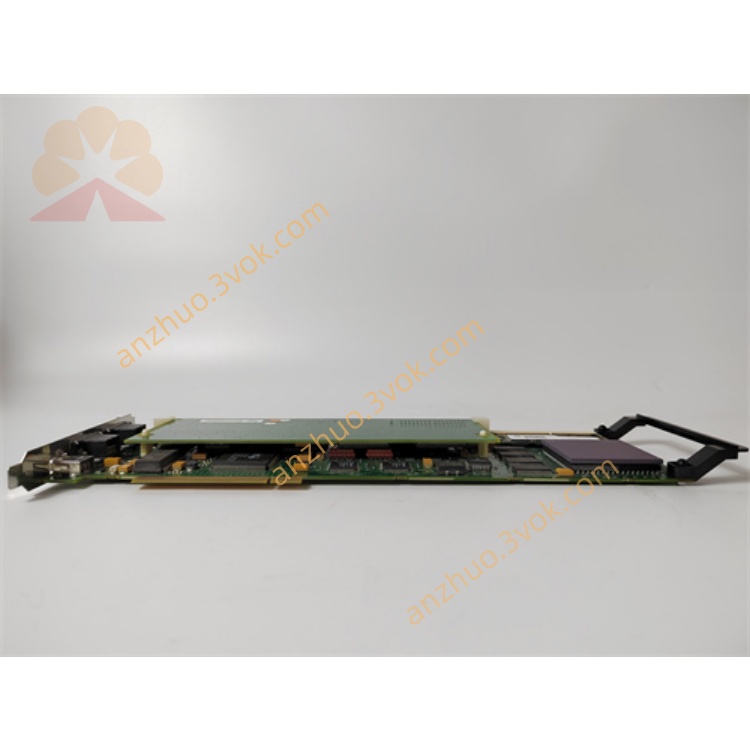

PU519 3BSE018681R1
Basic Information
Manufacturer: ABB
Product Type: High-performance Real Time Accelerator PCI Board (AC 800M Series)
Part Number Combination: PU519 (Module Assembly), 3BSE018681R1 (Official Factory Part Number)
Application: ABB AC800M control system, dual MB300 bus communication, high-speed engineering debugging, redundant controller connection, large-scale DCS real-time data monitoring
Description
Basic Information
Manufacturer: ABB
Product Type: High-performance Real Time Accelerator PCI Board (AC 800M Series)
Part Number Combination: PU519 (Module Assembly), 3BSE018681R1 (Official Factory Part Number)
Application: ABB AC800M control system, dual MB300 bus communication, high-speed engineering debugging, redundant controller connection, large-scale DCS real-time data monitoring
1. PU519 Technical Parameters
Bus Standard: 32-bit PCI Bus, 33 MHz Clock Frequency
Onboard Memory: 32 MB High-speed Data Cache Memory
Communication Interface: 2 × MB300 Dual Channel Port + 1 × RS232 Serial Port
Bus Transmission Rate: Max 2.0 Mbps MB300 Bus Speed
Supply Voltage: 5 VDC PCI Slot Power Supply
Current Consumption: ≤ 0.38 A @5VDC
Total Power Dissipation: ≤ 1.90 W
Compatible Controller: PM150V08, CI547, Redundant AC800M Rack
Isolation Voltage: 1500 Vrms Galvanic Isolation
Working Temperature: -20℃ ~ +70℃
Storage Temperature: -40℃ ~ +85℃
Ambient Humidity: 5%~95% RH (Non-condensing)
Protection Grade: IP20
2. Internal Circuit & Function Description
Core Function: Dual MB300 bus signal acquisition, real-time data acceleration processing, redundant rack synchronous debugging, high-speed program downloading
Data Processing: Onboard high-speed accelerator chip, low-delay signal parsing, large-capacity data caching
Compatibility Design: Upgraded replacement model of PU516, support single and redundant MB300 bus system
Anti-interference: Industrial EMI&EMC anti-surge and high-frequency interference suppression circuit
Protection Mode: Overvoltage, overcurrent, static electricity and reverse connection protection
Structure: Standard PCI slot board, reinforced industrial PCB, conformal coating anti-corrosion treatment
3. Usage Instructions
Installation: Install into industrial computer PCI slot; fasten locking screws to prevent vibration looseness.
Wiring: Use dedicated MB300 shielded twisted-pair cable; dual channels support redundant rack wiring.
Debugging: Install matched dedicated driver; set dual-bus station address and communication logic.
Operation: High-speed real-time data transmission; support multi-controller online monitoring and program modification.
Maintenance: Regularly clean gold finger oxidation and dust; check cable shielding grounding every six months.
4. Important Precautions
Do not install in humid, condensed water, dusty and corrosive gas environments.
Keep away from high-power frequency converters to avoid dual-channel bus interference.
Cut off computer power before plugging and unplugging the PCI board.
Prohibit miswiring of dual MB300 ports to prevent internal accelerator chip damage.
Avoid severe vibration and mechanical impact during transportation and installation.
Ensure industrial computer ventilation to prevent high-temperature communication delay.
Unauthorized disassembly of internal components is strictly prohibited.
5. General Technical Characteristics
Certification: CE, UL, RoHS
Installation Method: Industrial Computer PCI Slot Mount
