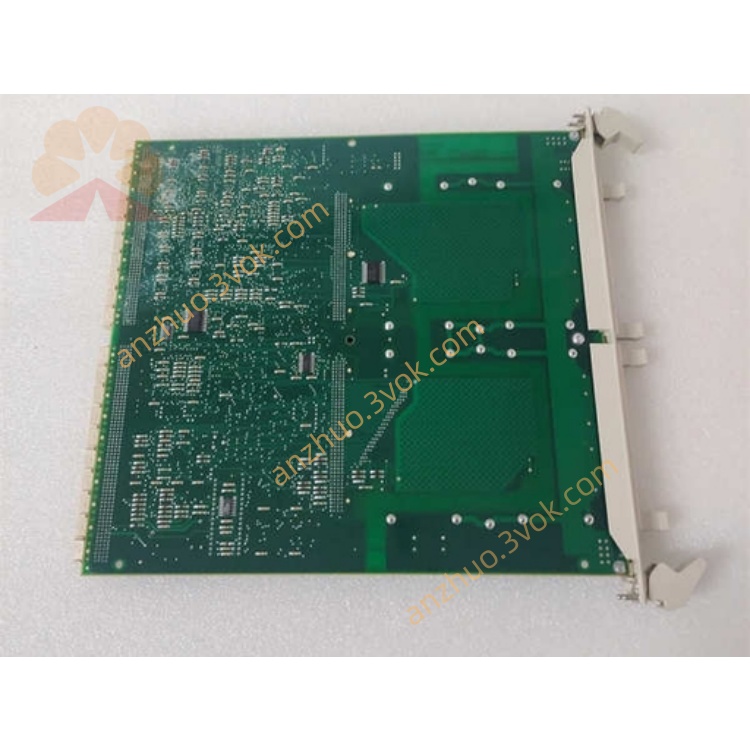

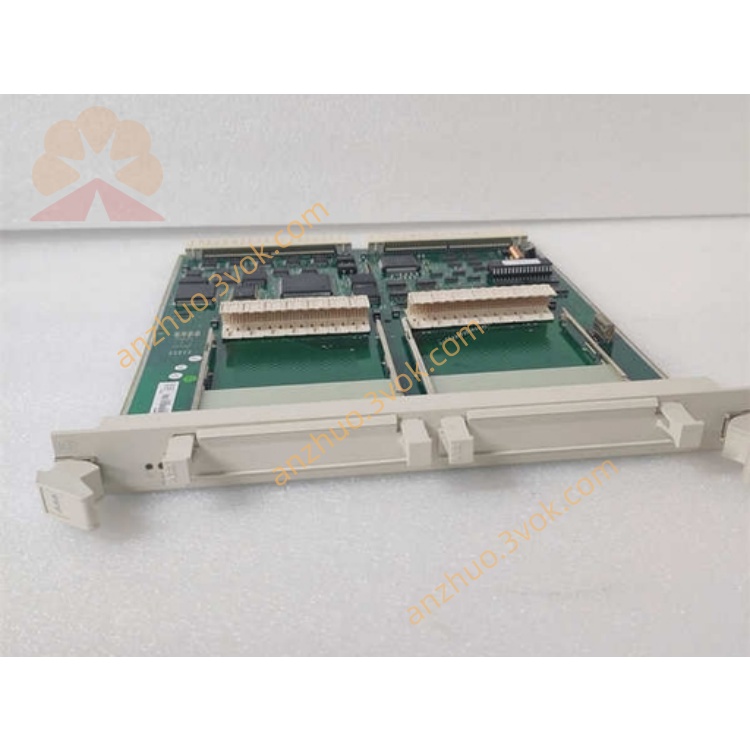

SC510 3BSE003832R1
SC510 / 3BSE003832R1 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Submodule Carrier Board (AC 800M Series)
Part Number Combination: SC510 (Module Assembly), 3BSE003832R1 (Official Factory Part Number)
Application: ABB AC800M Controller Rack, DCS distributed control system, auxiliary signal expansion, backplane bus signal distribution
Description
SC510 / 3BSE003832R1 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Submodule Carrier Board (AC 800M Series)
Part Number Combination: SC510 (Module Assembly), 3BSE003832R1 (Official Factory Part Number)
Application: ABB AC800M Controller Rack, DCS distributed control system, auxiliary signal expansion, backplane bus signal distribution
1. SC510 Technical Parameters
CPU Configuration: Without Local CPU (Pure Expansion Carrier Board)
Operating Voltage: 5 VDC & 24 VDC Dual Power Supply
Current Consumption: 1.2 A @5VDC, 0.005 A @24VDC
Total Power Dissipation: ≤ 0.6 W Ultra Low Power Consumption
Expansion Slot: Multi Sub-module Expansion Interface
Communication Bus: Backplane Internal Control Bus
Isolation Voltage: 2000 Vrms Galvanic Isolation
Working Temperature: -25℃ ~ +70℃
Storage Temperature: -40℃ ~ +85℃
Ambient Humidity: 5%~95% RH (Non-condensing)
Protection Grade: IP20
2. Internal Circuit & Function Description
Core Function: Submodule carrier mounting, signal distribution, bus signal transmission and auxiliary expansion
Signal Processing: Internal bus signal buffering, filtering and stable transmission
Expansion Design: Compatible with various AC800M auxiliary sub-modules for function expansion
Anti-interference: Industrial EMI&EMC anti-surge and anti-electromagnetic interference circuit
Protection Mode: Overvoltage, overcurrent, short circuit and reverse polarity protection
Structure: Standard rack card, compact PCB layout, conformal coating anti-corrosion treatment
3. Usage Instructions
Installation: Standard controller rack slot mounting; keep horizontal installation inside control cabinet.
Wiring: Follow standard rack wiring specification; separate power lines and signal lines strictly.
Debugging: Check backplane bus communication status after installation; confirm signal transmission stability.
Operation: Observe module status indicators; ensure normal data interaction of expansion sub-modules.
Maintenance: Regularly clean surface dust; check card slot fastening condition every six months.
4. Important Precautions
Do not install in humid, condensed water, dusty and corrosive gas environments.
Keep away from strong electromagnetic interference sources to avoid bus communication failure.
Cut off all power supply before insertion, removal and maintenance operations.
Prohibit overvoltage input to prevent internal circuit damage.
Avoid severe vibration and mechanical impact during transportation and installation.
Ensure cabinet ventilation to prevent high temperature aging of electronic components.
Unauthorized disassembly of internal components is strictly prohibited.
5. General Technical Characteristics
Certification: CE, UL, RoHS
Installation Method: Controller Rack Slot Mount
