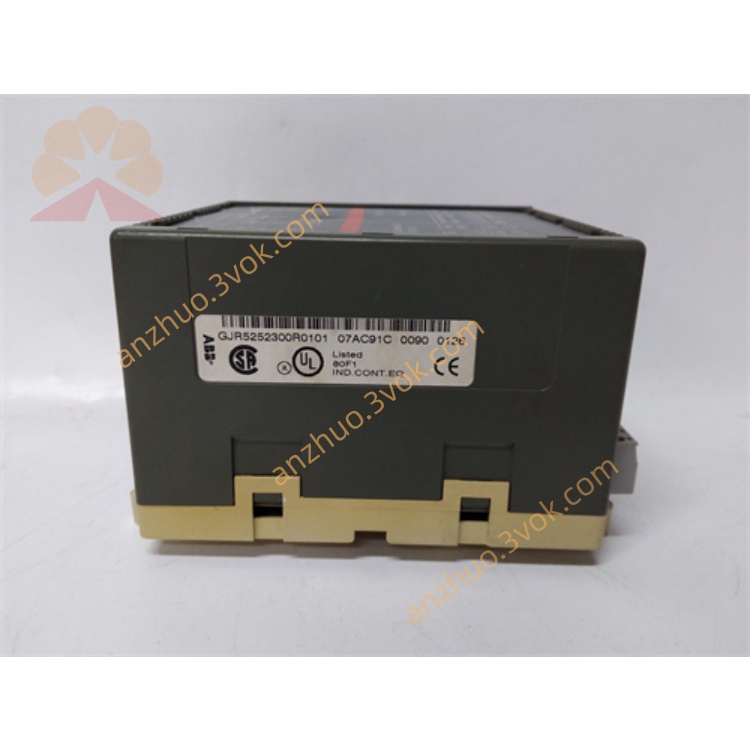

07AC91B GJR5252300R0101
Basic Information
Manufacturer: ABB
Product Type: Analog I/O Module (Advant Controller 31 Series)
Part Number Combination: 07AC91B (Module Assembly), GJR5252300R0101 (Official Part Number)
Application: ABB Advant OCS DCS system, process industry analog signal collection, temperature & pressure monitoring, flow control unit
Description
Basic Information
Manufacturer: ABB
Product Type: Analog I/O Module (Advant Controller 31 Series)
Part Number Combination: 07AC91B (Module Assembly), GJR5252300R0101 (Official Part Number)
Application: ABB Advant OCS DCS system, process industry analog signal collection, temperature & pressure monitoring, flow control unit
1. 07AC91B Analog Control Unit
Channel Configuration: 8 Analog Input + 4 Analog Output Mixed Channels
Input Signal Range: 4~20 mA / 0~10 VDC Selectable
Output Signal Range: 4~20 mA / 0~10 VDC Programmable
Resolution: 12 Bit High Precision Acquisition Resolution
Conversion Time: ≤ 200 μs Single Channel Conversion
Input Voltage: 24 VDC Auxiliary Power Supply
Rated Power Consumption: ≤ 8 W
Communication Interface: Backplane Internal Bus
Transmission Protocol: ABB Proprietary Industrial Bus Protocol
Isolation Voltage: 1500 Vrms Galvanic Isolation
Working Temperature: -20℃ ~ +60℃
Storage Temperature: -40℃ ~ +85℃
Ambient Humidity: 5%~95% RH (Non-condensing)
Protection Grade: IP20
2. GJR5252300R0101 Main Circuit Board
Function: Analog signal sampling, amplification, filtering, data conversion and bus transmission
Anti-interference: Built-in low-pass filter, industrial EMI&EMC anti-interference circuit
Protection Mode: Overvoltage, Overcurrent, Surge and Reverse Polarity Protection
Structure: Compact modular PCB layout, conformal coating anti-corrosion treatment
3. Usage Instructions
Installation: Standard cabinet slot mounting; keep horizontal installation inside the control cabinet.
Wiring: Use shielded twisted-pair cables for analog signal lines; separate analog lines and power lines strictly.
Debugging: Set signal type (mA/V) via DCS software before power-on; calibrate zero point and range.
Operation: Observe module status indicators; monitor analog data stability through upper computer system.
Maintenance: Regularly clean surface dust; check terminal tightness and signal line aging every six months.
4. Important Precautions
Do not install in humid, condensed water and corrosive gas environments.
Keep away from high-power electromagnetic interference equipment to avoid signal fluctuation.
Cut off all power supply before wiring, disassembly and maintenance.
Do not apply signal exceeding the rated voltage or current range to prevent channel burnout.
Avoid severe vibration and mechanical impact during transportation and installation.
Ensure smooth cabinet ventilation to prevent temperature drift of analog acquisition accuracy.
Unauthorized disassembly of internal components is strictly prohibited.
5. General Technical Characteristics
Certification: CE, UL, RoHS
Installation Method: Cabinet Slot Mount
