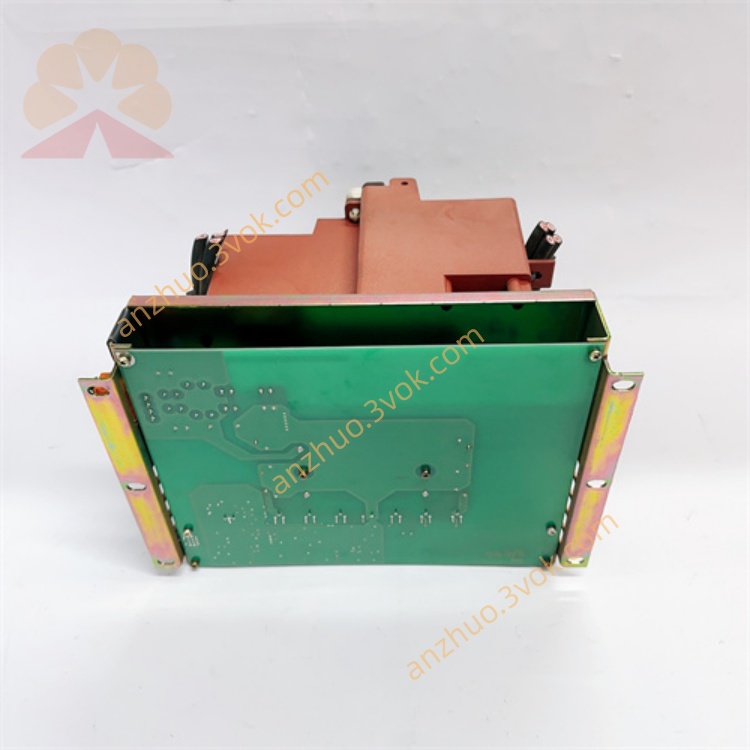

KUC711AE 3BHB004661R0001
KUC711AE / 3BHB004661R0001 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Excitation Control Processor Module (Symphony / ACS6000 Series)
Part Number Combination: KUC711AE (Module Assembly), 3BHB004661R0001 (Main Control Board)
Application: Power plant excitation system, generator voltage regulation, heavy industry frequency conversion drive system, ACS6000 drive unit
Description
KUC711AE / 3BHB004661R0001 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Excitation Control Processor Module (Symphony / ACS6000 Series)
Part Number Combination: KUC711AE (Module Assembly), 3BHB004661R0001 (Main Control Board)
Application: Power plant excitation system, generator voltage regulation, heavy industry frequency conversion drive system, ACS6000 drive unit
1. KUC711AE Processor Control Unit
Memory: 32 MB RAM, 16 MB Flash Memory
Input Voltage: 110~240 VAC, 50/60 Hz
Rated Power Consumption: ≤35 W
Communication Bus: DriveBus, Dual-channel High-speed Industrial Bus
Transmission Rate: 100 Mbps Per Channel
Isolation Voltage: 2500 Vrms Galvanic Isolation
Working Temperature: -25℃ ~ +70℃
Storage Temperature: -40℃ ~ +85℃
Protection Grade: IP20
2. 3BHB004661R0001 Main Control Board
Function: Excitation logic calculation, data acquisition, pulse signal output and system communication
Anti-interference: Industrial EMI&EMC anti-surge and anti-static circuit
Protection Mode: Overvoltage, Overcurrent, Short Circuit, Overheat Protection
Structure: Compact reinforced circuit board, conformal coating treatment
3. Usage Instructions
Installation: Standard cabinet slot mounting; keep horizontal installation inside the control cabinet.
Wiring: Use shielded twisted-pair cables for communication lines; separate strong current and weak current cables.
Debugging: Complete parameter configuration via ABB Control Builder before power-on operation.
Operation: Keep continuous power-on running; avoid frequent power cut and restart.
Maintenance: Regularly remove dust on the surface; check terminal tightness every six months.
4. Important Precautions
Do not install in humid, dusty, corrosive gas and condensed water environment.
Keep away from strong electromagnetic interference sources to avoid signal disorder.
Cut off all power supply before wiring, disassembly and maintenance.
Strictly follow the rated voltage; overvoltage is forbidden to prevent chip damage.
Avoid violent vibration and mechanical impact during transportation and installation.
Ensure good cabinet ventilation to prevent module overheating aging.
Non-professional personnel are prohibited from disassembling internal components.
5. General Technical Characteristics
Certification: CE, UL, RoHS
Installation Method: Cabinet Slot Mount
