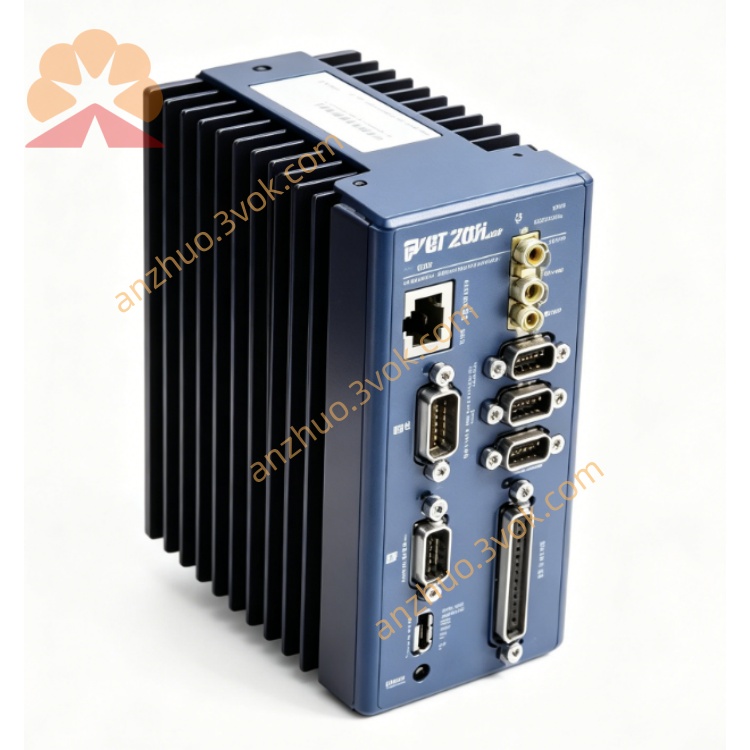

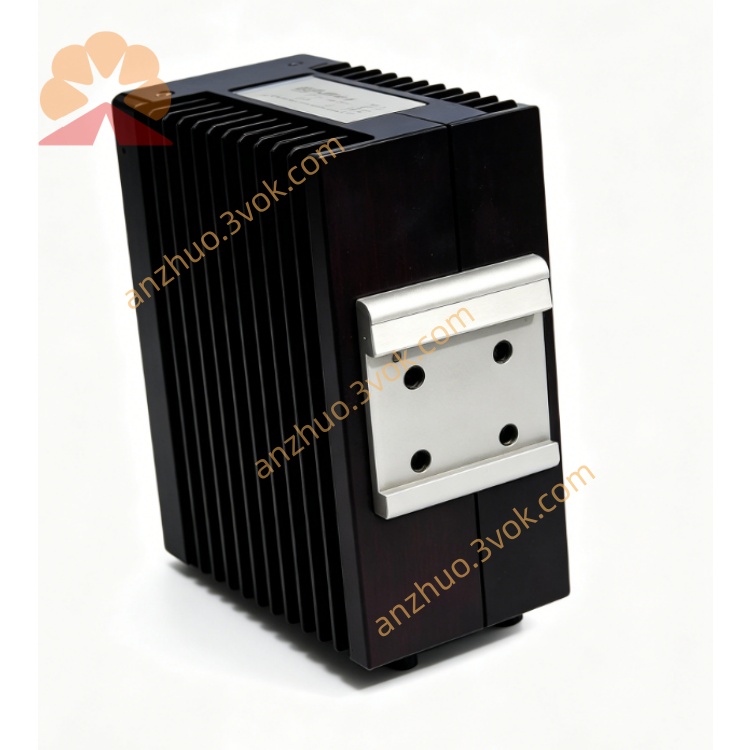

CVS‑1454

National Instruments Compact Vision System (FireWire, 3‑camera)

General Description

Part Numbers

• Model: CVS‑1454

• NI PN: 778638‑01 / 189139x‑02 (revision variants)

Key Specifications

• Processor: High‑performance embedded (≈833–883 MIPS)

• DRAM: 128 MB

• Nonvolatile Storage: 32 MB flash

• Camera Interfaces: 3 × IEEE 1394a (FireWire) (DCAM‑compliant cameras)

• Max Resolution: Up to 2000 × 2000

• Max Frame Rate: Up to 100 fps (camera‑dependent)

• Digital I/O: 29 lines (isolated/TTL)

• Ethernet: 1 × 10/100 Mbps (for programming/networking)

• Video Out: VGA (for local display)

• Power: 9–35 VDC

• Operating Temp: ‑20 °C to +55 °C

• Dimensions: 4 × 5 × 2.5 in (102 × 127 × 64 mm)

• Weight: 2.15 lb (0.98 kg)

Main Features

• Multi‑camera support: Up to 3 FireWire cameras for synchronized acquisition

• Real‑time processing: Deterministic image analysis for high‑speed inspection

• Rugged fanless design: Shock/vibration resistant for industrial floors

• Integrated I/O: 29 digital lines for direct control of actuators/sensors

• VGA output: Onboard display port for monitoring results locally

• LabVIEW/Vision Builder AI: Easy programming for custom vision algorithms

Applications

• Automotive part inspection (dimensions, defects, assembly verification)

• Electronics manufacturing (PCB inspection, component alignment)

• Packaging & logistics (label verification, barcode reading, counting)

• Medical device quality control

• General‑purpose machine vision: gauging, presence/absence, pattern matching
