cFP-DO-403

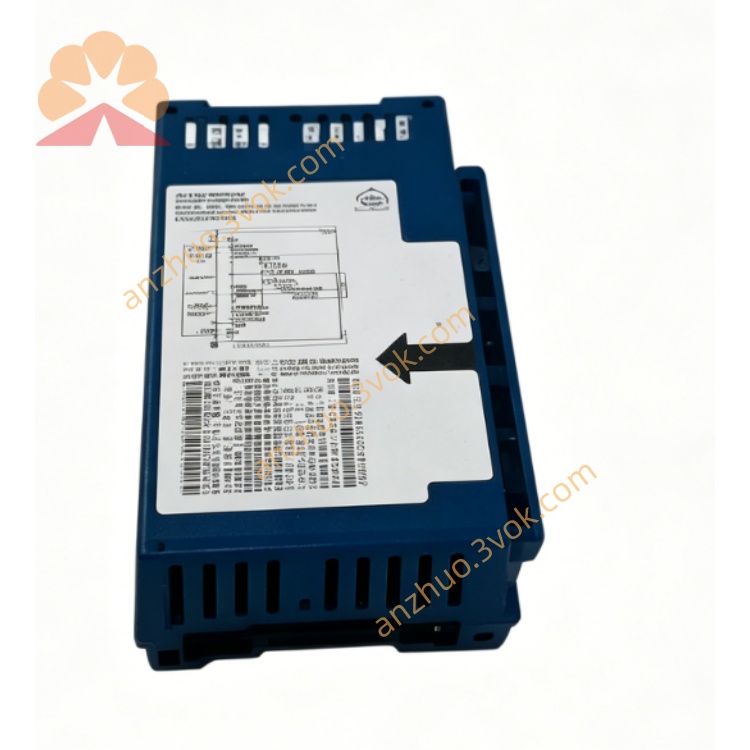

National Instruments Compact FieldPoint Digital Output Module

General Description

Part Number

• Model: cFP‑DO‑403

• NI PN: 777318‑403

Key Specifications

• Channels: 16 sinking digital outputs (NPN)

• Voltage Range: 5–30 VDC (nominal 12/24 VDC)

• Per‑Channel Current: 2 A continuous

• Total Module Current: 16 A max

• Isolation: 250 Vrms CAT II channel‑to‑ground; withstand 2,300 Vrms, 5 s

• Update Rate: 20 kHz all‑channel

• Protection: Per‑channel overcurrent, short‑circuit, thermal shutdown (auto‑reset)

• Connectors: 37‑pin D‑Sub (for cFP‑CB‑1 / CB‑3 terminal bases)

• Indicators: 16 × channel LED, POWER, READY (green)

• Power Consumption: 1.8 W typical (from backplane)

• Operating Temperature: ‑40 °C to +70 °C

• Storage Temperature: ‑55 °C to +85 °C

• Humidity: 10–90% RH, non‑condensing

• Certifications: CE, UL, CSA, FM (hazardous locations)

• Weight: ~193 g (6.81 oz)

Main Features

• 16‑Channel Sinking Output: 2 A per channel, ideal for 24 VDC industrial loads (relays, solenoids, indicators).

• High Isolation: 250 Vrms continuous isolation protects system from transients and ground loops.

• Hot‑Swap & Plug‑and‑Play: Auto‑detected by NI software; hot‑swappable without downtime.

• Robust Protection: Electronic fuses with auto‑reset safeguard against short circuits and overloads.

• Fast Update Rate: 20 kHz all‑channel refresh for high‑speed logic.

• Industrial Ruggedness: Wide temperature range, vibration tolerance, and safety certifications.

Applications

• Control of solenoid valves, contactors, motor starters, and relay coils

• Panel indicator lights, buzzers, and LED arrays

• Driving NPN‑type solid‑state inputs on PLCs and I/O modules

• Factory automation, conveyor systems, and process control discrete outputs

• Legacy Compact FieldPoint system maintenance/expansion

Compatibility

• Terminal Bases: cFP‑CB‑1 (36‑pin) or cFP‑CB‑3 (18‑pin, isothermal)

• Backplanes: cFP‑BP‑x series

• Controllers: All Compact FieldPoint network modules (e.g., cFP‑2000, cFP‑2010)
