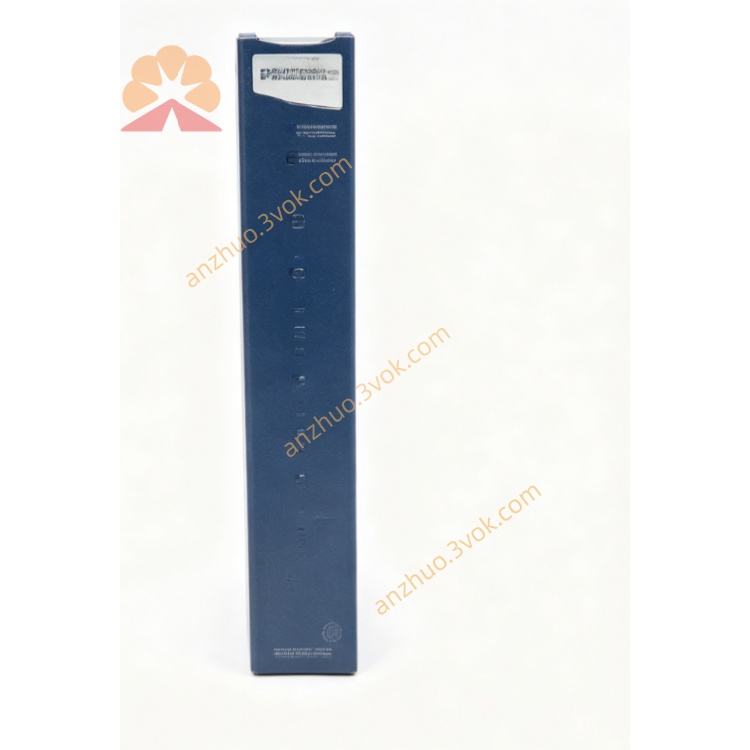

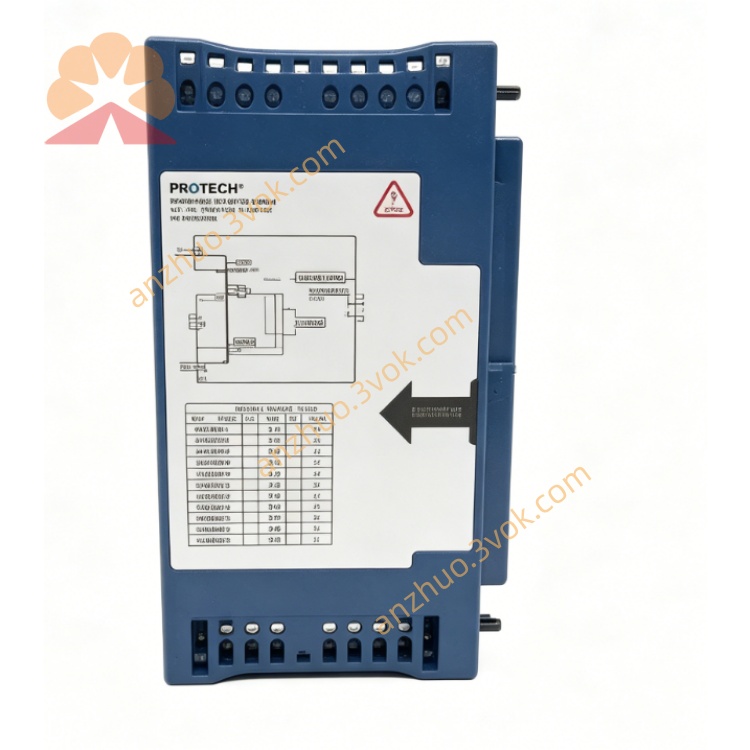

cFP‑AO‑210 (National Instruments)

Compact FieldPoint 8‑Channel 0–10 V Analog Output Module（EOL）

General Description

Part Number

• Model: cFP‑AO‑210

• NI PN: 777318‑210 / 185792F‑02

Key Specifications

• Channels: 8 voltage outputs (single‑ended)

• Resolution: 12‑bit DAC

• Output Range: 0–10 V (with 0.2 V overrange capability)

• Output Drive: up to 1 mA per channel (10 mA with external 15–30 VDC supply)

• Update Rate: 200 Hz total (all channels)

• Accuracy: ±0.1% FS typical

• Isolation: 250 Vrms CAT II channel‑to‑chassis

• Protection:

  • 2,300 V transient overvoltage (bus ↔ I/O)

  • Short‑circuit protection per channel

  • Overcurrent detection (fault indication)

• Diagnostics: Open‑loop detection (LED indicator)

• Power: ~1 W (from cFP backplane)

• Operating Temperature: ‑40 °C to +70 °C

• Certifications: CE, UL, CSA, FM (hazardous areas)

• Dimensions (W×H×D): 81 × 140 × 41 mm

• Weight: ~120 g

Main Features

• 8‑channel 0–10 V: Directly drives industrial voltage‑loop devices

• 12‑bit precision: Stable, accurate voltage output

• Hot‑swap / HotPnP: Online replacement without system downtime; auto‑detected by software

• Onboard diagnostics: Open‑loop, short‑circuit, and overcurrent detection

• Robust isolation/protection: Withstands industrial transients and faults

• NIST‑traceable calibration: Ensures long‑term accuracy

Typical Applications

• Process control: 0–10 V valve/actuator control (flow, pressure, level)

• Factory automation: Analog actuator and transmitter drive

• Building automation: Damper, valve, and HVAC control

• Legacy Compact FieldPoint system maintenance

Replacement

• NI‑9265: 8‑channel, 0–10 V, 16‑bit, C Series voltage output module
