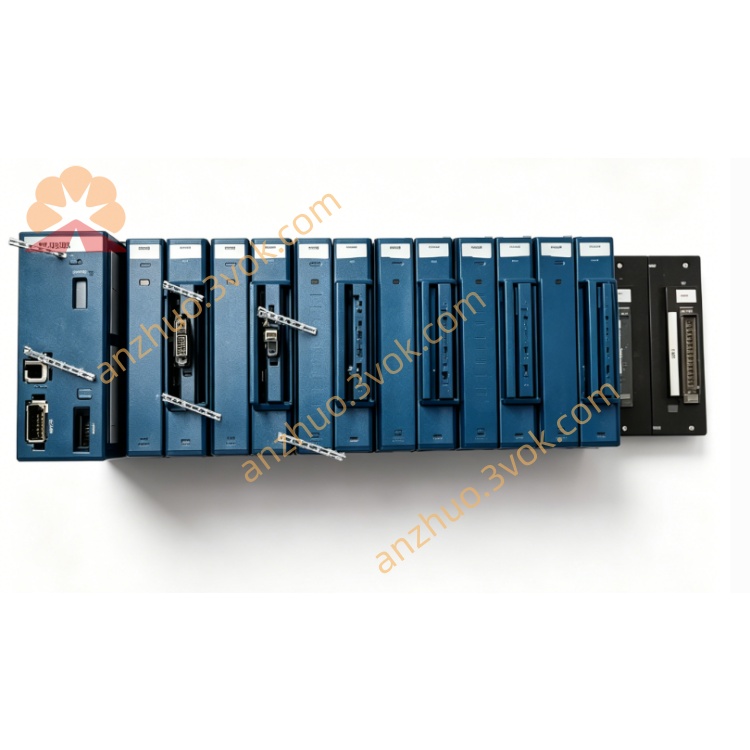

cFP‑2210 (National Instruments)

Compact FieldPoint Real‑Time Controller (EOL, mid‑range in 22xx series)

1. General Description

2. Part Number

• Model: cFP‑2210

• NI PN: 777317‑2210, 197567D‑02L

3. Key Specifications

• Processor: 400 MHz Freescale MPC5200 real‑time CPU (VxWorks)

• Memory:

  • RAM: 256 MB SDRAM

  • Non‑volatile: 128 MB onboard flash

  • Expansion: No CompactFlash/USB

• I/O Slots: 8 hot‑swappable cFP modules

• Communication:

  • Ethernet: 1×10/100 Mbps RJ45 (Modbus TCP, NI protocols)

  • Serial: 2×RS‑232 DB9 (Modbus RTU/ASCII)

• Digital I/O: 2 DI / 2 DO (front‑panel)

• OS: LabVIEW Real‑Time (VxWorks)

• Programming: LabVIEW RT ≥8.5.1, NI‑FieldPoint driver ≥6.0.1, NI MAX

• Power: 11–30 VDC (24 V nominal), dual redundant inputs

• Power Consumption: ~6 W + I/O load

• Operating Temperature: ‑20 °C to +55 °C (standard); ‑40 °C to +70 °C (extended)

• Mounting: DIN rail / panel mount / 19” rack

• Status: Discontinued / EOL

4. Main Features

• More memory: 256 MB RAM (vs 128 MB in cFP‑2200) for larger programs/logs

• Extra serial port: 2×RS‑232 (vs 1× in cFP‑2200) for multi‑serial devices

• 8‑slot all‑in‑one: controller + backplane

• Standalone operation: no host PC required

• Hot‑swap I/O: replace modules online

• Industrial ruggedness: 2300 V transient protection, Class I Div 2 certified, wide temp range

5. Applications

• Mid‑complexity distributed real‑time control

• Factory automation & process monitoring

• Multi‑serial‑device systems (Modbus RTU, scanners, printers)

• Standalone data logging (higher capacity than cFP‑2200)

• Environmental & building automation

• Legacy Compact FieldPoint system upgrades
