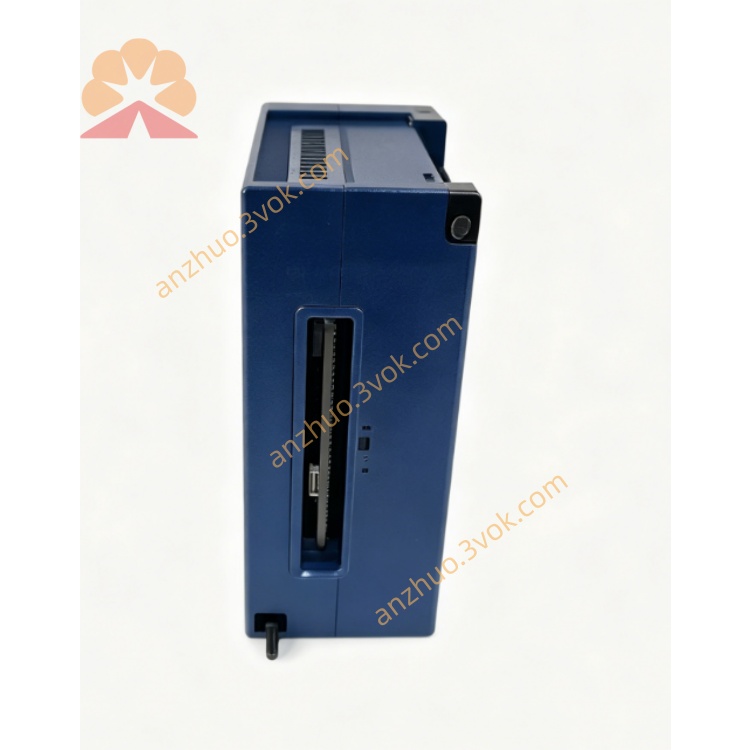

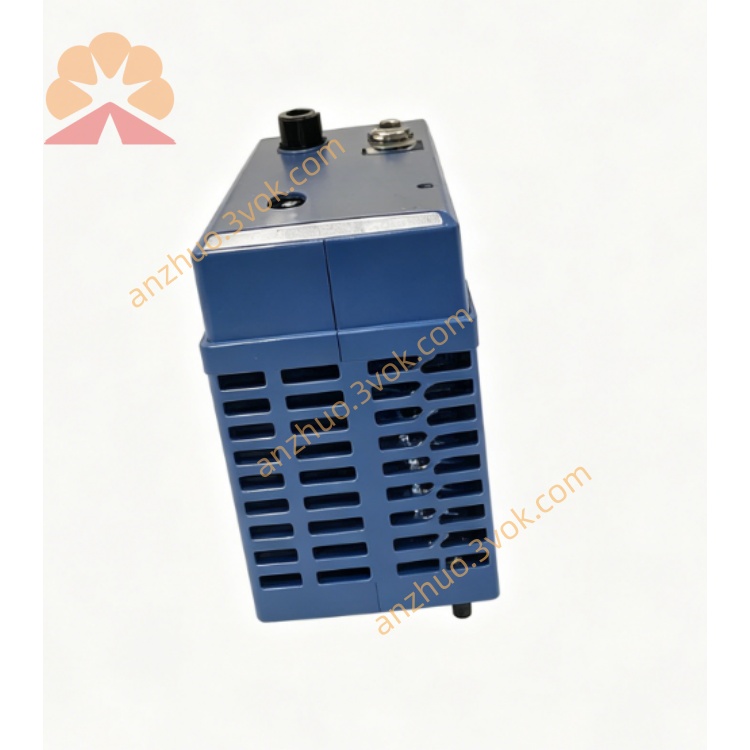

cFP‑2200 (National Instruments)

Compact FieldPoint Real‑Time Controller (EOL, entry‑level in 22xx series)

1. General Description

2. Part Number

• Model: cFP‑2200

• NI PN: 777317‑2200

3. Key Specifications

• Processor: 400 MHz real‑time CPU (VxWorks)

• Memory:

  • RAM: 128 MB SDRAM

  • Non‑volatile: 128 MB onboard flash

  • Expansion: No CompactFlash/USB

• I/O Slots: 8 hot‑swappable cFP modules

• Communication:

  • Ethernet: 1×10/100 Mbps RJ45 (Modbus TCP, NI protocols)

  • Serial: 1×RS‑232 DB9 (Modbus RTU/ASCII)

• OS: LabVIEW Real‑Time (VxWorks)

• Programming: LabVIEW RT, NI MAX

• Power: 11–30 VDC (24 V nominal), dual redundant inputs

• Power Consumption: ~6 W + I/O load

• Operating Temperature: ‑20 °C to +55 °C (standard); ‑40 °C to +70 °C (extended)

• Mounting: DIN rail / panel mount

• Status: Discontinued / EOL

4. Main Features

• Faster CPU: 400 MHz vs. 188 MHz in 21xx, better for signal processing

• 8‑slot all‑in‑one: controller + backplane

• Standalone operation: no host PC required

• Hot‑swap I/O: replace modules online

• Industrial ruggedness: isolation, transient protection, Class I Div 2 certified

5. Applications

• Cost‑optimized distributed real‑time control

• Factory automation & process monitoring

• Basic standalone data logging

• Environmental & building automation

• Legacy Compact FieldPoint system upgrades
