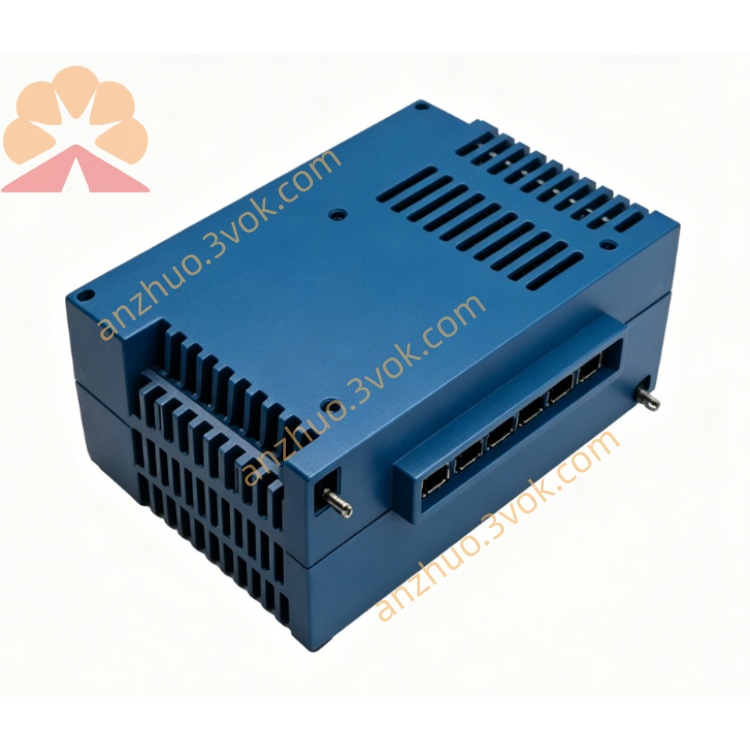

cFP‑2010 (National Instruments)

Compact FieldPoint Real‑Time Controller (EOL)

1. General Description

2. Part Number

• Model: cFP‑2010

• NI PN: 777317‑2010

• Alternate PNs: 188539E‑02 / 188539F‑02

3. Key Specifications

• Processor: 75 MHz real‑time CPU

• Memory:

  • RAM: 32 MB DRAM

  • Non‑volatile: 64 MB onboard

  • Expansion: CompactFlash slot

• I/O Slots: 8 × hot‑swappable cFP modules

• Communication:

  • Ethernet: 10/100 Mbps RJ45 (Modbus TCP, NI protocols)

  • Serial: 2 × RS‑232 DB9 (Modbus RTU/ASCII)

• OS: LabVIEW Real‑Time (preinstalled; supports v8.5.1 or older only)

• Programming: LabVIEW RT, NI MAX

• Power: 24 VDC (11–30 V range), redundant input support

• Operating Temp: ‑20 °C to +55 °C

• Mounting: DIN rail / panel mount

• Status: EOL (deprecated)

4. Main Features

• Integrated controller + 8‑slot backplane: No separate backplane needed

• Dual serial ports: Extra RS‑232 for serial devices/legacy systems (vs. cFP‑2000)

• Standalone real‑time operation: Runs embedded logic without host PC

• Hot‑swap I/O: Replace modules online

• Industrial rugged: Isolated comms, self‑diagnostics, transient overvoltage protection (2,300 V)

• Web‑enabled: Remote monitoring/configuration

5. Compatible Modules

• Analog input/output

• Digital input/output

• Thermocouple/RTD/relay

• Counter/timer

6. Applications

• Industrial distributed real‑time control

• Factory automation & process monitoring

• Remote data acquisition & standalone logging

• Building automation (HVAC, lighting)

• Legacy cFP system upgrades
