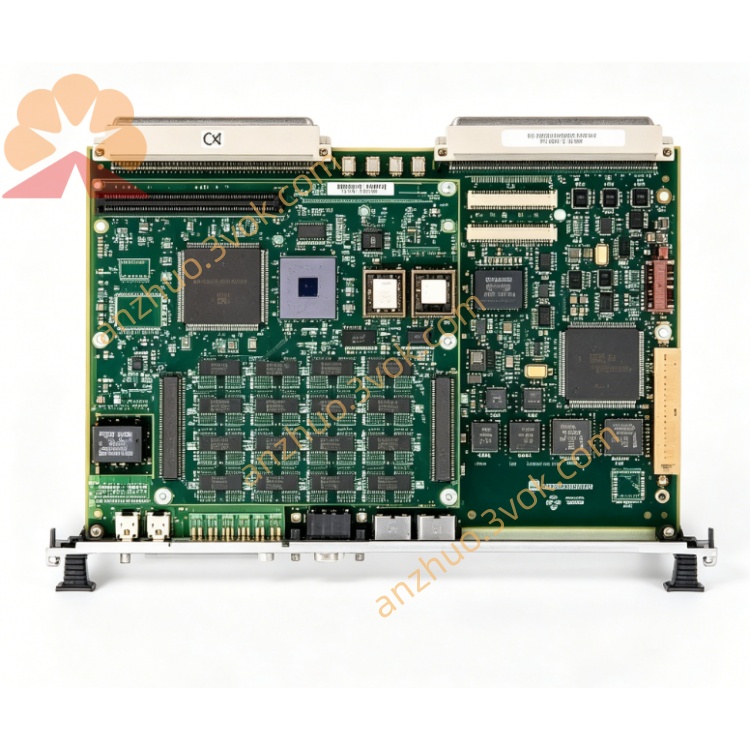

MVME1603-002

MVME1603‑002 6U VME Single‑Board Computer (SBC) Motorola / Emerson / Curtiss‑Wright User Manual (Plain Text, No Images) Part Number: MVME1603‑002 Manufacturer: Motorola, later Emerson / Artesyn / Curtiss‑Wright Form Factor: 6U VMEbus (double‑high, VME64, P1/P2 backplane, VMEbus Rev C compliant) CPU: PowerPC 603 @ 66 MHz Cache: 16 KB instruction / 16 KB data (on‑chip) Memory: 8 MB DRAM (standard), non‑ECC Bus Interface: VMEbus + PCI local bus (132 MB/s) Ethernet: Onboard 10/100 Mbps Ethernet Application: Cost‑sensitive industrial control, basic real‑time embedded systems, VME/PCI hybrid systems, low‑memory footprint applications

Description



MVME1603‑002

6U VME Single‑Board Computer (SBC)

Motorola / Emerson / Curtiss‑Wright

User Manual (Plain Text, No Images)

Part Number: MVME1603‑002
Manufacturer: Motorola, later Emerson / Artesyn / Curtiss‑Wright
Form Factor: 6U VMEbus (double‑high, VME64, P1/P2 backplane, VMEbus Rev C compliant)
CPU: PowerPC 603 @ 66 MHz
Cache: 16 KB instruction / 16 KB data (on‑chip)
Memory: 8 MB DRAM (standard), non‑ECC
Bus Interface: VMEbus + PCI local bus (132 MB/s)
Ethernet: Onboard 10/100 Mbps Ethernet
Application: Cost‑sensitive industrial control, basic real‑time embedded systems, VME/PCI hybrid systems, low‑memory footprint applications
Key Identification:
MVME1603‑002 = PowerPC 603 @66 MHz, 8 MB non‑ECC DRAM, VME64, PCI local bus, onboard 10/100 Ethernet, PMC expansion capable, standard MVME1600‑001 baseboard + PM603 processor mezzanine + low‑density RAM module
The “‑002” suffix denotes lower memory configuration (8 MB vs 64 MB in ‑001), non‑ECC DRAM, standard firmware, Class 2 conformal coating, no special options.

1. General Description

The MVME1603‑002 is a cost‑optimized, double‑high 6U VMEbus single‑board computer based on the PowerPC 603 RISC microprocessor, designed for embedded applications requiring VMEbus and PCI local bus performance but with reduced memory requirements. It uses the same 66 MHz PowerPC 603 CPU as the MVME1603‑001, with 16 KB instruction and 16 KB data on‑chip caches.
The board follows a modular construction: MVME1600‑001 baseboard + PM603 processor mezzanine + 8 MB non‑ECC DRAM module (vs 64 MB ECC in ‑001). It includes 2 KB battery‑backed CMOS SRAM and a battery‑backed real‑time clock (RTC). Four 32‑pin ROM/EPROM/EEPROM sockets support up to 4 MB of boot/firmware storage; the MVME1603‑002 ships with standard PPCBug firmware preinstalled.
Peripheral interfaces match the MVME1603‑001: four EIA‑232‑D serial ports, a Centronics‑compatible parallel port, onboard 10/100 Mbps Ethernet, PCI local bus (32‑bit, 33 MHz, 132 MB/s), and one PMC expansion slot.
The VMEbus interface supports A16/A24/A32 addressing and D08/D16/D32/D64 data widths, with master/slave operation and system controller functions. The MVME1603‑002 complies with VMEbus Rev C and is VME64 compatible.

2. Features

Processor and Memory

  • Processor: PowerPC 603 at 66 MHz, RISC architecture

  • On‑chip cache: 16 KB instruction, 16 KB data

  • DRAM: 8 MB standard, non‑ECC, not expandable to 64 MB without module change

  • Battery‑backed SRAM: 2 KB, non‑volatile data storage

  • Real‑time clock: Time‑of‑day clock/calendar with battery backup

  • ROM sockets: four 32‑pin sockets, up to 4 MB total firmware

  • Firmware: PPCBug debugger/monitor preinstalled (‑002 standard)

Onboard I/O Interfaces

  • Serial ports: four EIA‑232‑D asynchronous/synchronous (Z8530 SCC)

  • Parallel port: Centronics‑compatible printer port

  • Ethernet: 10/100 Mbps, onboard, PCI‑based

  • PCI local bus: 32‑bit, 33 MHz, 132 MB/s, one PMC slot

  • VMEbus: VME64, Rev C compliant, master/slave/system controller

System Functions

  • Timers: two 16‑bit programmable tick timers

  • Watchdog: hardware watchdog timer with system reset

  • Front panel LEDs: SCON, RUN, FAIL, STATUS, PCI ACT

  • Switches: RESET, ABORT

  • Configuration: factory default (‑002 = low‑memory standard configuration)

3. Electrical Specifications

  • Power supply: +5 VDC, ±12 VDC (VMEbus standard)

  • +5 V current: 5.5 A typical, 7.0 A maximum

  • +12 V: 150 mA maximum

  • -12 V: 150 mA maximum

  • Logic levels: 3.3 V / 5 V TTL compatible

  • Power dissipation: approximately 11 W typical

4. Mechanical Specifications

  • Form factor: 6U VME, double‑high

  • Dimensions: 233.4 mm height × 160 mm depth

  • Weight: approximately 850 g (lighter than ‑001 due to smaller memory module)

  • Conformal coating: Class 2 (industrial standard)

5. Environmental Specifications

  • Operating temperature: 0 °C to +55 °C

  • Storage temperature: −20 °C to +70 °C

  • Relative humidity: 5%–95% non‑condensing

  • Shock: 30 g, 11 ms pulse

  • Vibration: 5 g, 5 Hz–200 Hz

6. Supported Operating Systems

  • VxWorks (PowerPC versions, fully supported)

  • LynxOS

  • OS‑9

  • pSOS+

  • Motorola VMEexec

  • NetBSD/mvmeppc

  • Custom embedded RTOS

7. Compatibility and Ordering Notes

  • MVME1603‑002 is pin‑compatible with MVME1603‑001 and MVME1604 series baseboards

  • ‑002 = low‑memory production unit: 8 MB non‑ECC DRAM (vs 64 MB ECC in ‑001)

  • Software‑compatible with MVME1600 family (PowerPC 603/604)

  • Not compatible with MVME147/148 (68k architecture, different pinout)

8. MVME1603‑001 vs ‑002 (Plain Text Summary)

  • CPU / speed / cache: identical (PowerPC 603 @66 MHz, 16K+16K cache)

  • I/O / PCI / VME / firmware: identical

  • DRAM: ‑001 = 64 MB ECC; ‑002 = 8 MB non‑ECC

  • Power draw: ‑002 slightly lower

  • Weight: ‑002 lighter

  • Price: ‑002 lower (cost‑optimized)
