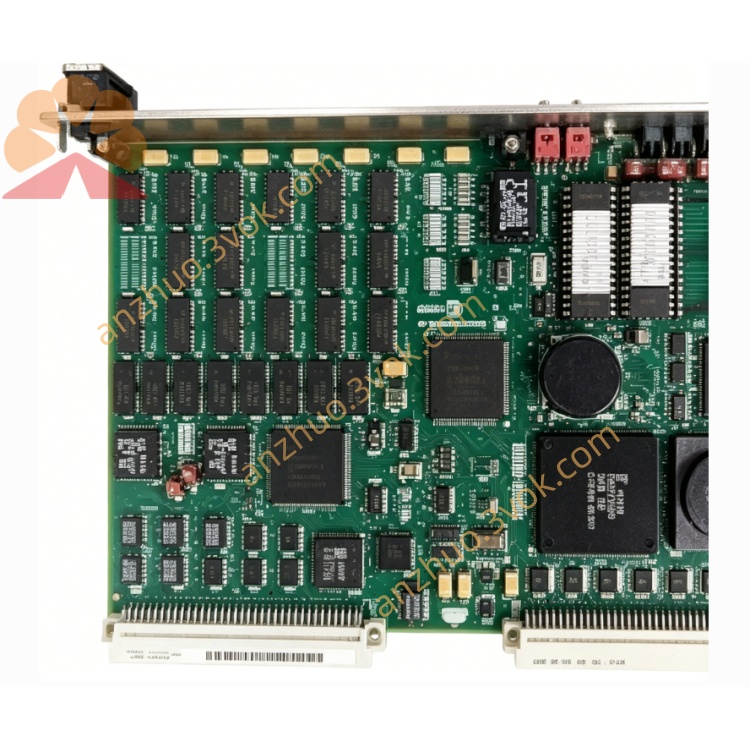

MVME147‑024 6U VME64 Single Board Computer (SBC) Motorola / Emerson / Curtiss‑Wright Datasheet (Plain Text, No Images) – 2026 Manufacturer: Motorola (later Emerson / Curtiss‑Wright) Part Number: MVME147‑024 Form Factor: 6U VMEbus, VME64 Compliant CPU: Motorola MC68030 @ 33.33 MHz FPU: MC68882 @ 33.33 MHz Memory: 32 MB DRAM, programmable parity Revision: Base model (no “A” suffix; later released as MVME147‑024A) Application: Industrial control, DCS/SIS, VMEbus master, factory automation, high‑memory 33 MHz systems requiring parity protection Summary: MVME147‑024 = 33.33 MHz + 32 MB DRAM (parity capable) + ETH+SCSI + Base Rev

Description





MVME147‑024

6U VME64 Single Board Computer (SBC)

Motorola / Emerson / Curtiss‑Wright

Datasheet (Plain Text, No Images) – 2026

Manufacturer: Motorola (later Emerson / Curtiss‑Wright)
Part Number: MVME147‑024
Form Factor: 6U VMEbus, VME64 Compliant
CPU: Motorola MC68030 @ 33.33 MHz
FPU: MC68882 @ 33.33 MHz
Memory: 32 MB DRAM, programmable parity
Revision: Base model (no “A” suffix; later released as MVME147‑024A)
Application: Industrial control, DCS/SIS, VMEbus master, factory automation, high‑memory 33 MHz systems requiring parity protection
Summary:
MVME147‑024 = 33.33 MHz + 32 MB DRAM (parity capable) + ETH+SCSI + Base Rev

1. General Description

The MVME147‑024 is a high‑performance 6U VME64 single‑board computer, pin‑compatible with MVME147‑024A. It features the MC68030 32‑bit CPU @ 33.33 MHz (integrated MMU, 256‑byte unified cache) plus an MC68882 FPU @ 33.33 MHz for floating‑point intensive tasks. Onboard 32 MB DRAM with programmable parity (jumper‑selectable error detection for high‑reliability applications). Peripherals include AUI Ethernet, asynchronous SCSI (WD33C93, DMA), four EIA‑232‑D serial ports, Centronics parallel port, and battery‑backed 4 KB SRAM/RTC. Designed for 33 MHz industrial embedded systems requiring large memory and parity protection.

2. Key Features

  • Processor: MC68030 @ 33.33 MHz, integrated MMU, 256‑byte unified cache

  • FPU: MC68882 @ 33.33 MHz, IEEE 754 compliant

  • DRAM: 32 MB, programmable parity (enable/disable via jumper)

  • EPROM: 4 sockets, up to 4 MB total (16‑bit wide)

  • Battery‑Backed SRAM: 4 KB for non‑volatile data storage

  • RTC: Battery‑backed real‑time clock (calendar/clock)

  • Onboard I/O:

    • 4 × EIA‑232‑D serial ports (Z8530)

    • 1 × Centronics‑compatible parallel port

    • 1 × asynchronous SCSI (WD33C93, DMA capable)

    • 1 × AUI 10 Mbps Ethernet (Lance AM7990)

  • VMEbus Interface:

    • Address: A16/A24/A32

    • Data: D08/D16/D32

    • Master/slave operation, system controller function

  • Timers & Watchdog: Dual 16‑bit timers, watchdog timer

  • Status LEDs: SCON, RUN, FAIL, STATUS

  • Switches: RESET, ABORT

3. Electrical Specifications

  • Power Supply: +5 VDC, ±12 VDC

  • Logic Levels: 5 V TTL compatible

  • VME Standard: ANSI/VITA 1‑1994, VME64 (IEEE 1014)

4. Mechanical Specifications

  • Form Factor: 6U VME

  • Dimensions: 233.4 mm × 160 mm

  • Mounting: Standard VME chassis slot

5. Environmental Specifications

  • Operating Temperature: 0 °C to +55 °C

  • Storage Temperature: −20 °C to +70 °C

  • Relative Humidity: 5%–95% RH, non‑condensing

6. Supported Operating Systems

  • VxWorks

  • Motorola VERSAdos

  • NetBSD/mvme68k

  • Custom embedded RTOS

  • Bare‑metal programs

7. MVME147‑024 vs 024A

  • MVME147‑024: Original PCB/component revision (33 MHz, 32 MB, parity)

  • MVME147‑024A: Rev A (hardware update, minor fixes; 100% compatible in function, pinout, electricals)

  • Software, configuration, cabling, chassis: fully interchangeable

8. MVME147 33 MHz Series (02x) Quick Reference

  • MVME147‑021: 33.33 MHz, 4 MB, ETH+SCSI, no parity

  • MVME147‑022: 33.33 MHz, 8 MB, ETH+SCSI, no parity

  • MVME147‑022A: 33.33 MHz, 8 MB, ETH+SCSI, no parity (Rev A)

  • MVME147‑023: 33.33 MHz, 16 MB, ETH+SCSI, parity

  • MVME147‑023A: 33.33 MHz, 16 MB, ETH+SCSI, parity (Rev A)

  • MVME147‑024: 33.33 MHz, 32 MB, ETH+SCSI, parity

  • MVME147‑024A: 33.33 MHz, 32 MB, ETH+SCSI, parity (Rev A)

1. General Description

The MVME147‑024 is a high‑performance 6U VME64 single‑board computer, pin‑compatible with MVME147‑024A. It features the MC68030 32‑bit CPU @ 33.33 MHz (integrated MMU, 256‑byte unified cache) plus an MC68882 FPU @ 33.33 MHz for floating‑point intensive tasks. Onboard 32 MB DRAM with programmable parity (jumper‑selectable error detection for high‑reliability applications). Peripherals include AUI Ethernet, asynchronous SCSI (WD33C93, DMA), four EIA‑232‑D serial ports, Centronics parallel port, and battery‑backed 4 KB SRAM/RTC. Designed for 33 MHz industrial embedded systems requiring large memory and parity protection.

2. Key Features

  • Processor: MC68030 @ 33.33 MHz, integrated MMU, 256‑byte unified cache

  • FPU: MC68882 @ 33.33 MHz, IEEE 754 compliant

  • DRAM: 32 MB, programmable parity (enable/disable via jumper)

  • EPROM: 4 sockets, up to 4 MB total (16‑bit wide)

  • Battery‑Backed SRAM: 4 KB for non‑volatile data storage

  • RTC: Battery‑backed real‑time clock (calendar/clock)

  • Onboard I/O:

    • 4 × EIA‑232‑D serial ports (Z8530)

    • 1 × Centronics‑compatible parallel port

    • 1 × asynchronous SCSI (WD33C93, DMA capable)

    • 1 × AUI 10 Mbps Ethernet (Lance AM7990)

  • VMEbus Interface:

    • Address: A16/A24/A32

    • Data: D08/D16/D32

    • Master/slave operation, system controller function

  • Timers & Watchdog: Dual 16‑bit timers, watchdog timer

  • Status LEDs: SCON, RUN, FAIL, STATUS

  • Switches: RESET, ABORT

3. Electrical Specifications

  • Power Supply: +5 VDC, ±12 VDC

  • Logic Levels: 5 V TTL compatible

  • VME Standard: ANSI/VITA 1‑1994, VME64 (IEEE 1014)

4. Mechanical Specifications

  • Form Factor: 6U VME

  • Dimensions: 233.4 mm × 160 mm

  • Mounting: Standard VME chassis slot

5. Environmental Specifications

  • Operating Temperature: 0 °C to +55 °C

  • Storage Temperature: −20 °C to +70 °C

  • Relative Humidity: 5%–95% RH, non‑condensing

6. Supported Operating Systems

  • VxWorks

  • Motorola VERSAdos

  • NetBSD/mvme68k

  • Custom embedded RTOS

  • Bare‑metal programs

7. MVME147‑024 vs 024A

  • MVME147‑024: Original PCB/component revision (33 MHz, 32 MB, parity)

  • MVME147‑024A: Rev A (hardware update, minor fixes; 100% compatible in function, pinout, electricals)

  • Software, configuration, cabling, chassis: fully interchangeable

8. MVME147 33 MHz Series (02x) Quick Reference

  • MVME147‑021: 33.33 MHz, 4 MB, ETH+SCSI, no parity

  • MVME147‑022: 33.33 MHz, 8 MB, ETH+SCSI, no parity

  • MVME147‑022A: 33.33 MHz, 8 MB, ETH+SCSI, no parity (Rev A)

  • MVME147‑023: 33.33 MHz, 16 MB, ETH+SCSI, parity

  • MVME147‑023A: 33.33 MHz, 16 MB, ETH+SCSI, parity (Rev A)

  • MVME147‑024: 33.33 MHz, 32 MB, ETH+SCSI, parity

  • MVME147‑024A: 33.33 MHz, 32 MB, ETH+SCSI, parity (Rev A)
