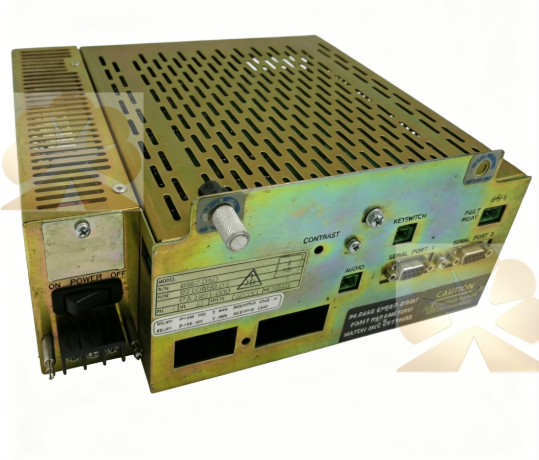

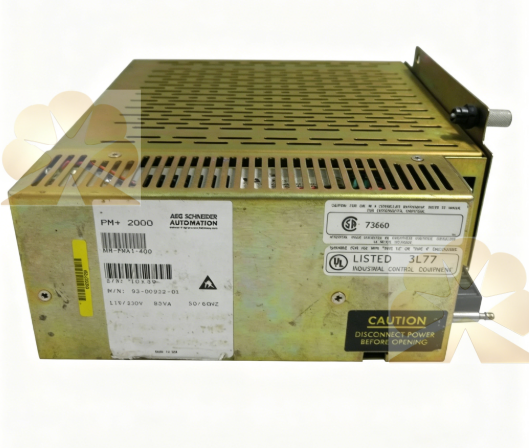

MODICON 92-00688-01 Servo Drive

MODICON 92-00688-01, also marked as MM-PMA1-400, is a high-performance servo drive for AEG Modicon legacy motion control automation systems. This servo drive accepts 110/230VAC input power and supports resolver feedback servo motors. The servo drive adopts integrated power circuit and overcurrent, overvoltage, overheat protection design. This servo drive supports stable continuous operation in CNC machine tools, automated assembly lines, packaging and material handling production lines.

It serves as a core motion amplifier to receive position and speed command signals from motion control modules. The motion amplifier outputs regulated power to brushless servo motors and processes resolver feedback signals for closed-loop control. This motion amplifier features LED indicators for ready, run, fault and diagnostic status. The motion amplifier is fully matched with Modicon Gettys series servo motors.

The unit delivers dependable motor drive control for indexing, feeding and synchronous positioning applications. Accurate motor drive control ensures fast response and low speed fluctuation. Stable motor drive control suppresses motor vibration and extends the service life of mechanical transmission parts. The motor drive control of this model meets strict industrial motion control standards.
