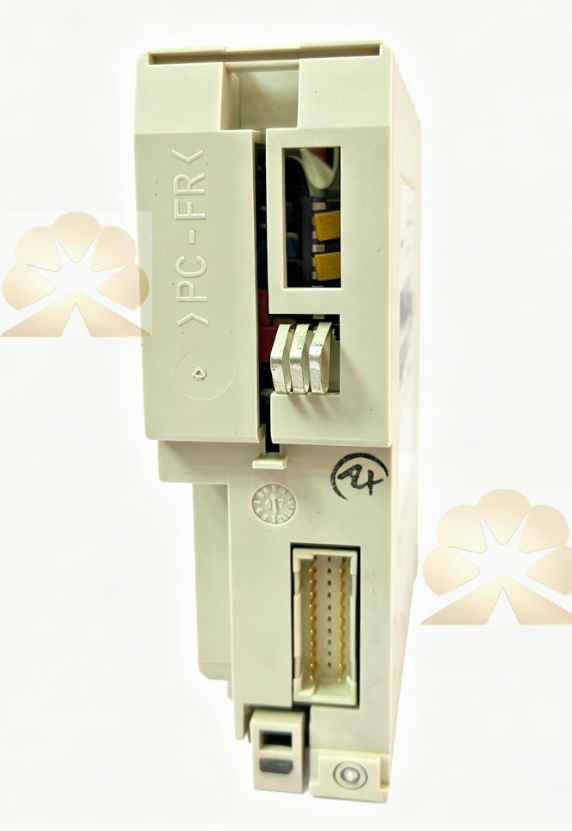

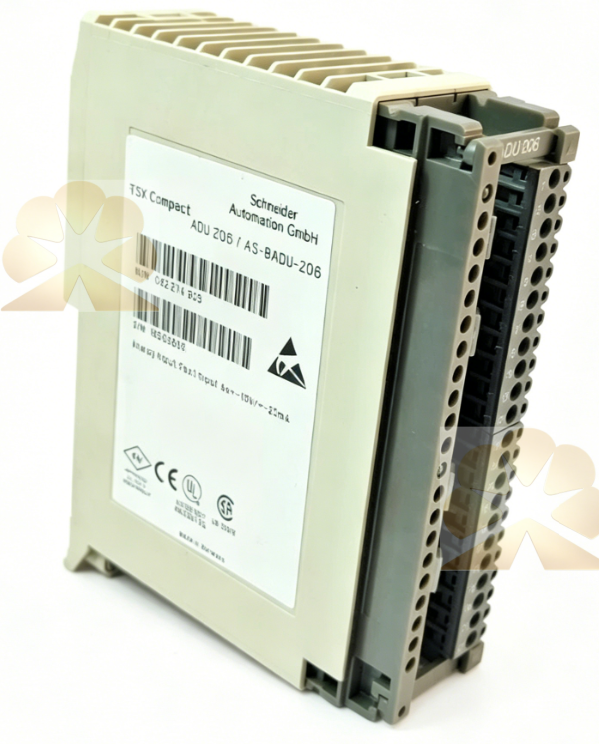

MODICON AS-BADU-206 Analog Input Module

MODICON AS-BADU-206 is a high-performance input module for Modicon A120 series Compact PLC automation systems. This input module is a 4-channel isolated analog input card, supporting ±10V voltage and 0-20mA current signal input. The input module adopts channel isolation circuit and anti-interference PCB layout. This input module supports stable continuous operation in chemical, heat treatment, packaging and general process control production lines.

It serves as a core signal collector to convert analog signals from transmitters, pressure and temperature sensors into digital data for the PLC backplane. The signal collector delivers high-precision conversion and supports on-site signal scaling configuration. This signal collector detects open circuit and over-range faults for quick troubleshooting. The signal collector is fully compatible with Modicon A120 rack PLC systems.

The unit delivers dependable analog signal acquisition for flow, pressure, temperature and liquid level monitoring loops. Accurate analog signal acquisition ensures reliable process value feedback for closed-loop regulation. Stable analog signal acquisition suppresses field noise interference and improves measurement repeatability. The analog signal acquisition of this model meets strict industrial process automation standards.
