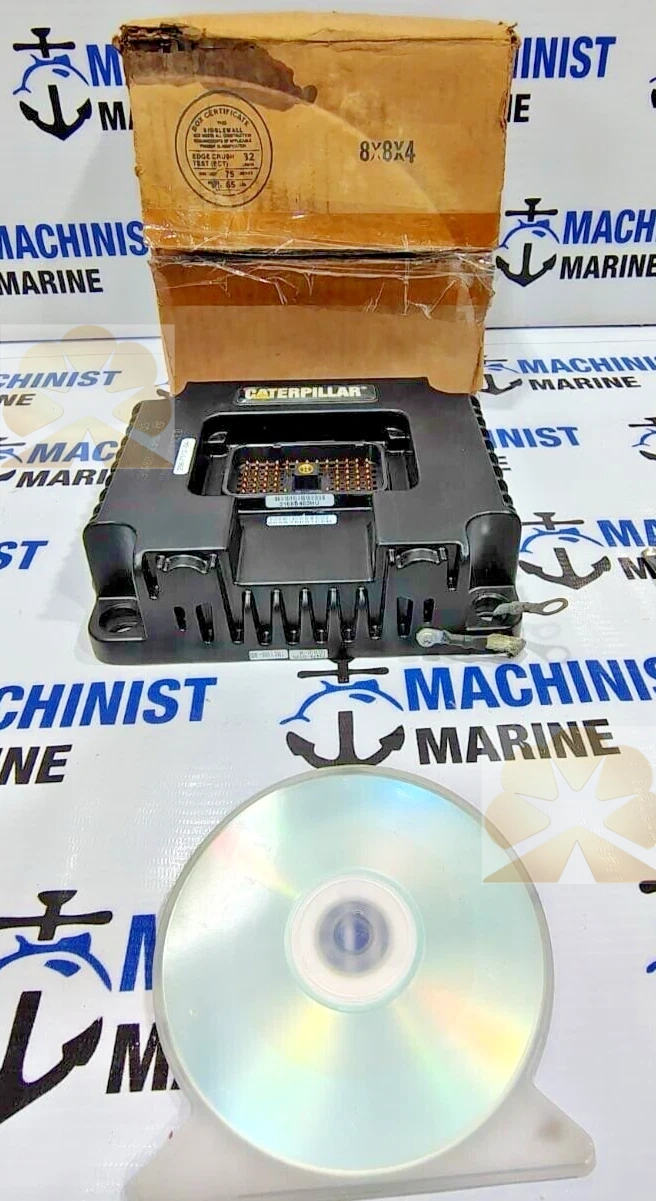

CATERPILLAR 285‑1138 Engine Electronic Control Module

CATERPILLAR 285‑1138 is an engine-mounted engine electronic control module (ECM) built for Caterpillar industrial diesel engines and stationary genset power systems. This engine electronic control module (ECM) serves as the core engine processing unit governing fuel injection, speed control and exhaust aftertreatment regulation. The engine electronic control module (ECM) acquires real-time sensor signals for crank position, temperature, pressure and other engine operating parameters. The engine electronic control module (ECM) stores factory engine calibration data, fault diagnostic codes and runtime history, supporting programming and diagnosis via Cat ET service tool.

Diesel engine closed-loop power regulation & protective fault diagnostics is the core function of CATERPILLAR 285‑1138 Engine Electronic Control Module. Diesel engine closed-loop power regulation & protective fault diagnostics dynamically adjusts fuel injection quantity and timing to stabilise engine speed and power output under variable load conditions. Reliable Diesel engine closed-loop power regulation & protective fault diagnostics continuously monitors all engine sensors and actuators, triggering derating or protective shutdown when dangerous operating conditions arise. Configurable Diesel engine closed-loop power regulation & protective fault diagnostics enables technicians to retrieve active and logged DTCs, perform parameter tuning and flash reprogramming through Cat ET service software.

This unit delivers outstanding heavy-duty engine compartment ruggedized electronic performance for engine-mounted installation environments. heavy-duty engine compartment ruggedized electronic performance features sealed cast aluminium housing and conformal coated internal PCB to withstand vibration, dust, humidity and wide temperature fluctuations inside engine compartments. Robust heavy-duty engine compartment ruggedized electronic performance provides waterproof multi-pin connectors for sensors, actuators and SAE J1939 CAN bus communication interfaces. Complete heavy-duty engine compartment ruggedized electronic performance supports drop-in spare replacement after matching and flashing the correct engine calibration.

CATERPILLAR 285‑1138 runs on 12/24 VDC nominal power supply and communicates over SAE J1939 CAN bus with genset controllers, operator displays and service tools. It requires Cat ET for firmware flashing and configuration setup. Widely applied on Caterpillar industrial diesel generator sets, marine auxiliary engines and heavy-duty stationary power equipment. It acts as an original critical engine control spare unit for Caterpillar diesel power system solutions.
