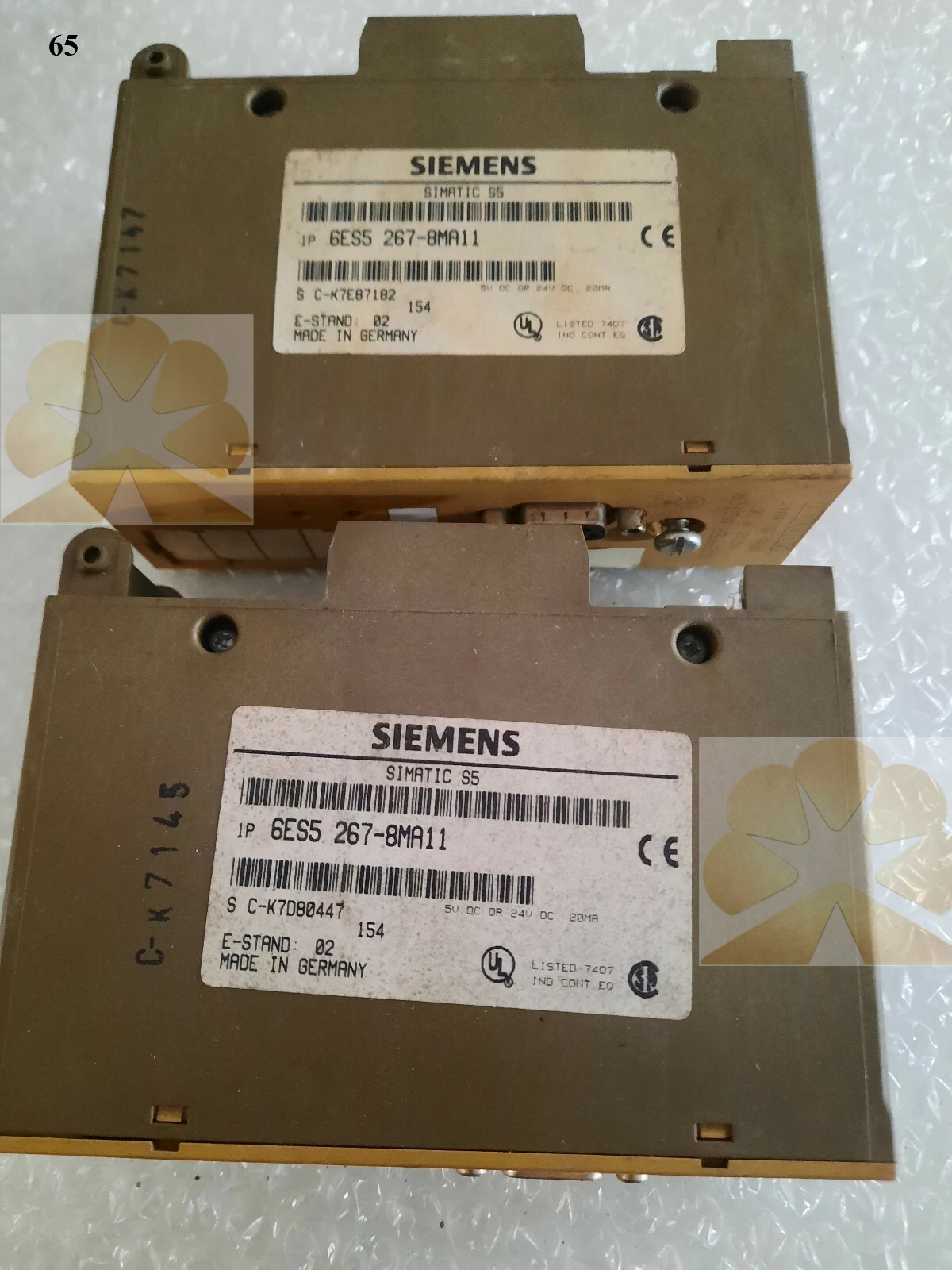

SIEMENS 6ES5 267-8MA11 Product Description

SIEMENS 6ES5 267-8MA11, also named IP267, is an intelligent single-axis positioning and stepper motor control module for SIMATIC S5 PLC series. It is designed to generate programmable pulse signals to drive stepper motor drives, supporting closed-loop positioning with incremental encoder feedback for old automation equipment renovation.

This module delivers precise axis positioning for single-axis motion tasks. The axis positioning supports linear acceleration and deceleration ramp control. The axis positioning realizes programmable target position and speed setting. Reliable axis positioning completes accurate point-to-point movement for mechanical axes.

The built-in signal processing achieves stable pulse output. The pulse output provides step/direction or CW/CCW pulse signals for stepper drivers. The pulse output has adjustable pulse frequency up to 4kHz. Accurate pulse output ensures synchronous motion execution according to positioning programs.

Backplane plug-in structure brings convenient system integration. System integration can be directly inserted into S5 series PLC rack. System integration exchanges positioning data with S5 CPU via backplane bus. Flexible system integration is widely used for legacy S5 system spare replacement.

SIEMENS 6ES5 267-8MA11 supports backlash compensation and position monitoring function, equipped with DB9 connector for encoder and driver wiring. It has LED status indicators for motion and fault diagnosis. Widely applied in old cutting machines, material positioning equipment and traditional assembly lines. This product is discontinued by Siemens, mainly supplied as industrial spare parts, complying with SIMATIC S5 industrial control standards.
