1. General Description

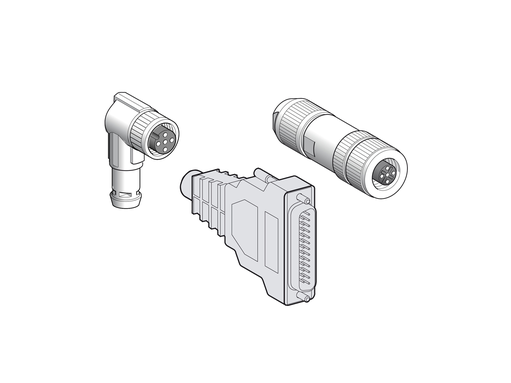

2. Product Identification

• Model: 170XTS00900

• Manufacturer: Schneider Electric (Modicon)

• Series: Modicon Momentum (170 Series)

• Type: Interbus communication connector kit

• Connector Type: SUB‑D 9 (9‑pin)

• Kit Contents: 1 × SUB‑D 9 male, 1 × SUB‑D 9 female

• Compatibility: Momentum, Quantum, Premium PLCs

• Weight: ≈ 0.045 kg (0.10 lb)

• Dimensions: 30 × 100 × 138 mm (1.18 × 3.94 × 5.43 in)

• Protection: IP20 (mated)

• Status: Active (not discontinued)

• Certifications: CE, UL, CSA, CA Prop 65 (contains lead)

• RoHS: Non‑compliant (legacy design)

3. Technical Specifications

3.1 Electrical

• Interface: Interbus‑S (remote bus)

• Connector: SUB‑D 9 (pinout per Interbus standard)

• Termination: Screw‑clamp (field‑wirable)

• Wire Range: 0.5–1.5 mm² (AWG 20–16)

• Rated Voltage: 300 VAC

• Rated Current: 5 A per pin

• Isolation: Basic insulation

3.2 Environmental

• Operating Temp: 0 °C to +60 °C

• Storage Temp: −40 °C to +85 °C

• Humidity: 5%–95% RH, non‑condensing

• Vibration: IEC 60068‑2‑6 (5–200 Hz, 1 g)

• Altitude: Up to 1,000 m (no derating)

• Material: Thermoplastic housing, tin‑plated brass contacts

4. Key Features

• Complete Kit: Includes both male and female SUB‑D 9 connectors for bus cable termination.

• Interbus‑S Compliant: Matches standard pinout for seamless integration with Momentum/Quantum I/O networks.

• Screw‑Clamp Termination: Secure, field‑serviceable wiring without special tools.

• Robust Industrial Design: Withstands vibration, humidity, and wide temperature ranges.

• Cross‑Platform Compatibility: Works with Modicon Momentum, Quantum, and Premium controllers.

5. Applications

• Interbus‑S Remote Bus: Connecting Momentum distributed I/O to PLCs.

• Industrial Communication: Process automation, material handling, packaging machinery.

• Retrofit Projects: Replacing worn connectors in legacy Modicon systems.

• Multi‑Drop Networks: Expanding I/O racks in factory automation lines.

6. Installation Instructions

1. Power Off: De‑energize the Interbus network before wiring.

2. Strip Wires: 6–7 mm insulation for screw‑clamp terminals.

3. Open Connector: Separate housing halves.

4. Terminate Wires: Follow Interbus‑S pinout; tighten screws firmly.

5. Reassemble Housing: Close and latch securely.

6. Mate Connector: Align SUB‑D pins; push until fully seated.

7. Secure: Use locking screws (if available) for vibration resistance.

7. Compatibility List

• Momentum: 170 series I/O bases, processors, and communication modules.

• Quantum: 140 series PLCs and Interbus modules.

• Premium: TSX series PLCs and Interbus adapters.

• Software: Unity Pro, Concept, PL7 Pro.

8. Maintenance

• Quarterly Inspection: Check connector seating, screw tightness, and housing damage.

• Cleaning: Use dry cloth only; avoid solvents.

• Annual Check: In high‑vibration areas, verify screw torque.

• Replacement: Replace if contacts are corroded or housing is cracked.

9. Safety Instructions

• Install/service only by qualified electrical personnel.

• De‑energize the network before wiring or replacement.

• Use copper wire only; do not mix wire sizes in one terminal.

• Do not exceed rated voltage/current.

• Keep connectors dry and free of conductive debris.

• CA Prop 65 Warning: Contains lead; may cause cancer/reproductive harm.

10. Troubleshooting

Communication Errors

• Check connector seating; ensure full mating of SUB‑D pins.

• Verify wire termination and screw tightness.

• Confirm correct Interbus‑S pinout (no reversed wires).

Loose Connection

• Retighten screw‑clamp terminals.

• Check for damaged or bent SUB‑D pins.

• Inspect housing for cracks or broken latches.

No Signal

• Check network power supply.

• Verify bus cable integrity (no breaks or shorts).

• Confirm compatibility with PLC/I/O modules.
