1. General Description

2. Product Identification

• Model: 170XTS00501

• Manufacturer: Schneider Electric (Modicon)

• Series: Modicon Momentum (170 Series)

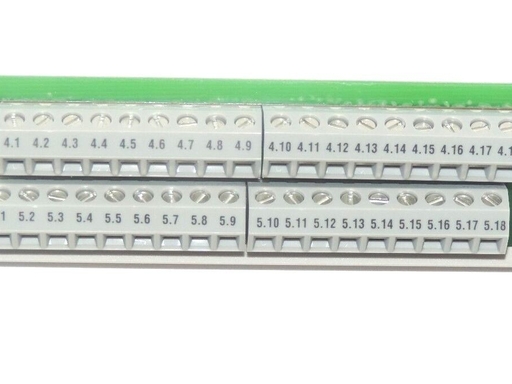

• Type: 2‑row screw terminal busbar (connection accessory)

• Termination: Screw clamp (tool required)

• Rows: 2 horizontal rows

• Compatibility: Momentum discrete/analog I/O bases

• Color: Gray

• Weight: ≈ 0.14 kg

• Protection: IP20 (installed)

• Status: Discontinued (Oct 9, 2023)

• Replacement: 170XTS00100

3. Technical Specifications

3.1 Electrical

• Rated Voltage: 300 VAC

• Rated Current: 15 A

• Wire Range: 1 × 2.5 mm² / 2 × 1.5 mm² (solid copper)

• Wire Gauge: AWG 14–18

• Tightening Torque: 0.5–0.6 N·m

3.2 Environmental

• Operating Temp: 0 °C to +60 °C

• Storage Temp: −40 °C to +85 °C

• Humidity: 5%–80% RH, non‑condensing

• Vibration: IEC 60068‑2‑6 (5–200 Hz, 1 g)

• Certifications: CE, UL, CSA, RoHS

• Material: Flame retardant thermoplastic (UL 94 V‑0), tin‑plated brass contacts

4. Key Features

• 2‑Row Screw Clamp: Compact, cost‑effective, vibration‑resistant connections.

• Common Distribution: Centralizes power/ground for I/O bases.

• Snap‑On Mounting: Attaches firmly without tools; easy removal.

• Terminal Markings: Clear numbering for fast, error‑free wiring.

• Robust Construction: Withstands industrial chemicals, oils, and temperature swings.

5. Applications

• Common power/ground distribution for Momentum distributed I/O

• Analog/digital I/O field device connection

• Control panels, machine skids, process automation

• Material handling, packaging, textile machinery

• Space‑constrained industrial enclosures

• Retrofit/replacement of older Momentum systems

6. Installation Instructions

1. Power Off: Disconnect all power to the I/O base.

2. Align Busbar: Match 170XTS00501 to base slots.

3. Snap On: Press firmly until fully seated and locked.

4. Prepare Wires: Strip 6–7 mm insulation; use solid copper only.

5. Open Terminal: Rotate screw counterclockwise to open clamp.

6. Insert Wire: Push wire fully into terminal hole.

7. Tighten Screw: Clockwise to 0.5–0.6 N·m torque.

8. Verify: Gently tug wire to confirm secure clamping.

9. Label: Mark terminals per wiring diagram.

7. Compatibility List

• Discrete I/O Bases: 170ADI34000, 170ADI35000, 170ADO34000, etc.

• Analog I/O Bases: 170ANR12000, 170ANR22000, etc.

• Software: Unity Pro, Concept

8. Maintenance

• Quarterly Inspection: Check screw tightness, discoloration, or cracks.

• Cleaning: Use dry cloth only; avoid solvents.

• Retighten: In high‑vibration areas, retorque screws annually.

• Replacement: Replace if damaged, corroded, or aged.

9. Safety Instructions

• Install/service only by qualified electrical personnel.

• De‑energize I/O base before wiring or replacement.

• Use solid copper wire only; do not mix wire sizes in one clamp.

• Do not exceed rated voltage/current.

• Keep terminals dry and free of conductive debris.

• CA Prop 65 Warning: Contains lead; may cause cancer/reproductive harm.

10. Troubleshooting

Intermittent Signal / Loose Connection

• Retighten screw to specified torque.

• Check wire strip length (6–7 mm) and no stray strands.

• Verify full wire insertion into clamp.

Cannot Insert Wire

• Fully loosen screw; check for debris/damage in terminal.

• Confirm wire gauge is AWG14–18 (1.5–2.5 mm²).

Busbar Will Not Snap On

• Align with base slots correctly.

• Remove debris from base connectors or busbar.
