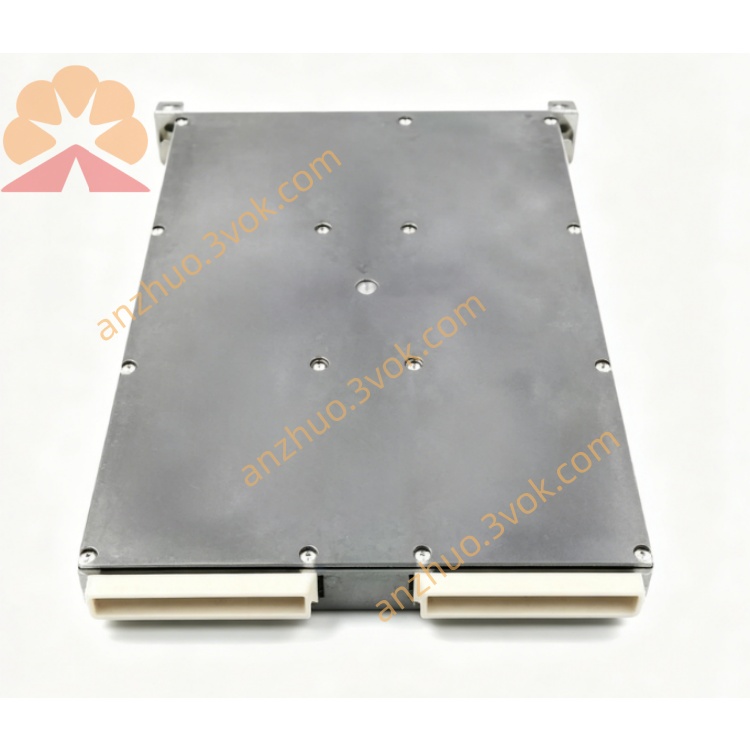

Part Number: 5437-081Manufacturer: WoodwardProduct Type: NetCon Analog Input Terminal ModuleCompatible System: 505, 505E, 505H turbine governor control systemMain function: Collect and isolate field analog signals, convert standard process signals and transmit to main control CPU, realize stable acquisition of various operating parameters of turbines and prime movers.

Working Power: 24VDC ±10%Installation Method: DIN rail mounting or panel mountingProtection Level: IP20Operating Temperature Range: -40℃ ~ +70℃Storage Temperature Range: -45℃ ~ +85℃Ambient Humidity: 5%~95%RH, non-condensingVibration Resistance: 10Hz~150Hz, 2G continuous workingWeight: Approximately 0.22kgCertification Standard: CE, UL, Class 1 Division 2Standard Warranty: 12 months

Insulation Strength: 1500VDC isolation between field side and control sideChannel Quantity: 8 channels analog inputSignal Type: 4-20mA and 0-10VDC switchable by jumperSignal Resolution: 12 bitMeasurement Accuracy: ±0.1% full scale at normal temperatureBuilt-in signal filtering and lightning surge protection circuitAdopt 37-pin backplane bus interface for internal system communication

Complete electrical isolation design to effectively eliminate on-site electromagnetic interferenceDual standard analog signal mode meets various sensor access requirementsHigh precision signal acquisition ensures stable and reliable turbine parameter monitoringCompact structure, easy wiring, convenient on-site installation and later maintenancePerfect matching with the whole series of NetCon system modulesStrong environmental adaptability, suitable for thermal power, petrochemical and other harsh industrial sites

Signal collection of turbine pressure, temperature, flow and liquid level sensorsAccess and sorting of 4-20mA remote given control signalsField analog signal centralized terminal processing in governor control cabinetParameter monitoring signal docking between on-site equipment and DCS systemSupport various steam turbine, gas turbine and generator set automatic control system
