3500/05-02-05-00-00-01
Description
1. General Information
Manufacturer: Bently Nevada (Baker Hughes)
Full Part Number: 3500/05-02-05-00-00-01

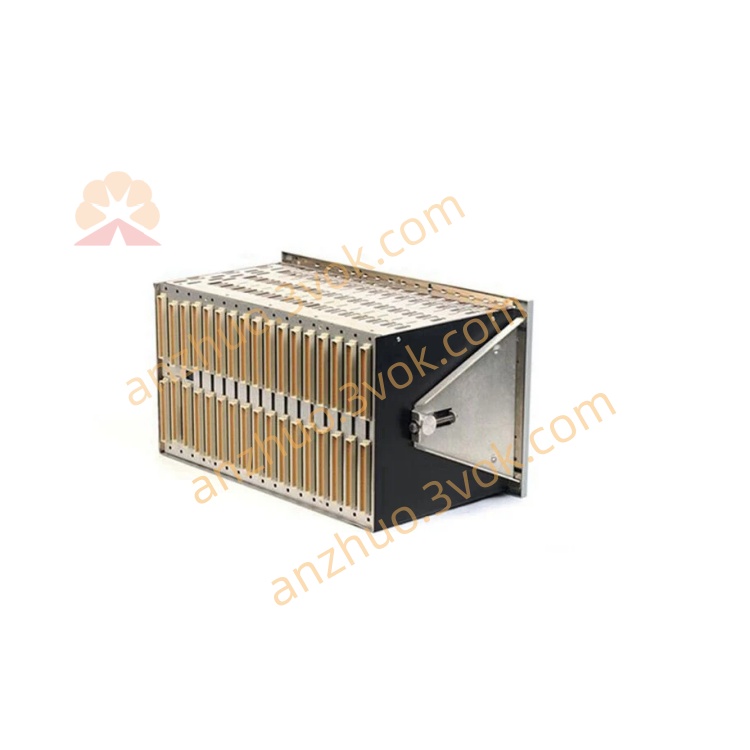

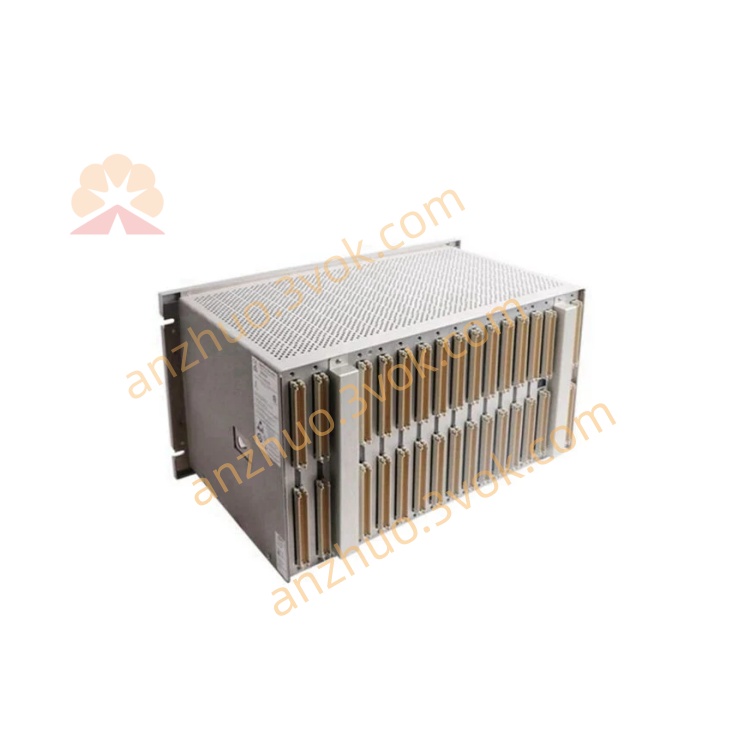

Product Name: 3500 System Rack Assembly
Slot Configuration: 5 Full‑Height Slots
Application: Mechanical mounting base and backplane for 3500 machinery protection system. Used for turbine, compressor, fan and critical rotating machinery monitoring.
Compliance: API 670 Industrial Machinery Protection Standard
2. Model Code Definition
Code Segment | Value | Description |
|---|---|---|
1 | 02 | Mixed full-height & half-height rack structure |
2 | 05 | 5 full-height slot quantity |
3 | 00 | Standard backplane (no customization) |
4 | 00 | No special coating / hazardous area modification |
5 | 01 | Standard industrial factory configuration |
3. Electrical Specifications
Backplane Voltage: +5 VDC system bus
Communication Bus: High-speed internal 3500 system bus
Power Module Compatibility: 3500/15 AC Power Supply
Insulation Strength: Industrial grade isolation for anti-interference
Hot Swap Support: All modules support hot-swap replacement
4. Environmental Specifications
Operating Temperature: -30 °C ~ +65 °C (-22 °F ~ +149 °F)
Storage Temperature: -40 °C ~ +85 °C (-40 °F ~ +185 °F)
Relative Humidity: 5% ~ 95% (Non-condensing)
Vibration Resistance: Compliant with API 670
5. Mechanical Specifications
Total Slots: 5 Full-height slots
Mounting Type: 19-inch standard cabinet mounting
Material: High-strength metal with electromagnetic shielding
Rack Weight: Approximately 4.8 kg
6. Compatible Modules
7. Key Features
Stable internal backplane power and data transmission
Industrial electromagnetic shielding design
Easy module installation and maintenance
Suitable for heavy‑duty industrial TSI monitoring system
