140DAO84210C
Description

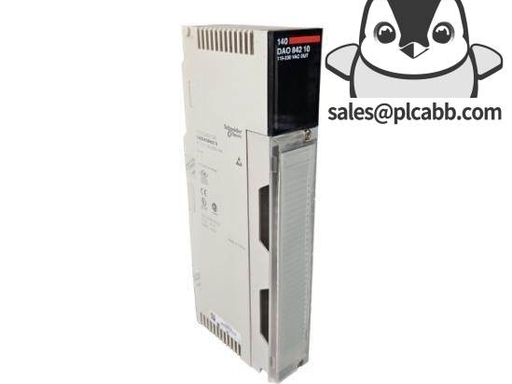

140DAO84210C
Modicon Quantum AC Discrete Output Module
16 Outputs, 85–253 V AC, 47–63 Hz, Triac, Conformal Coated, Fused, With Diagnostic
English Specification Manual (Full Text)
1. General Description
Outputs: 4 groups × 4 channels (4×4 grouping, group‑to‑group isolation)
Manufacturer: Schneider Electric
Series: Modicon Quantum (140 Series)
Module Type: AC Discrete Output Module, Triac, 16‑Ch (4×4), Conformal Coated, Fused, With Diagnostic
Total Outputs: 16 points (4 groups × 4 ch)
Output Grouping: 4 groups × 4 ch (group isolated, common per group)
Form Factor: 1 slot, hot‑swappable
Coating: Conformal coated (Humiseal 1A33, IPC‑CC‑830 qualified)
Weight: ~0.45 kg
Key Feature: 16×Triac Out, 85–253V AC, 47–63Hz, 4×4 Group Isolation, Conformal Coated, Fused, With Diagnostic
Application: 115/230V AC loads, motors, heaters, lighting, offshore, chemical, pulp & paper, high humidity, salt mist, corrosive atmosphere
2. Electrical Specifications
Outputs (16 × Triac, 85–253 V AC, 4×4 Groups)
Output Type: Solid‑state (triac), zero‑crossing
Operating Voltage: 85–253 V AC
Nominal Voltage: 115 / 230 V AC
Frequency: 47–63 Hz
Load Current (per channel):
85–132 V AC: 4 A RMS max
170–253 V AC: 3 A RMS max
Total Module Current: 16 A RMS max (continuous)
Surge Current (per channel):
10 A (3 cycles)
Off‑State Leakage Current:
115 V AC: < 2 mA RMS
230 V AC: < 2.5 mA RMS
On‑State Voltage Drop: ≤ 1.5 V RMS
dv/dt Rating: 400 V/μs
Isolation: 2500 Vrms, 1 min (group‑to‑group & group‑to‑bus)
Absolute Maximum Output:
300 Vrms (10 s AC)
400 Vrms (1 cycle AC)
Backplane & Power
Backplane Current: 350 mA
Power Dissipation: ~8.0 W max (formula: 1.85 + 1.1 × total load current)
Internal Power: Powered by Quantum backplane
Fusing & Diagnostics
Fused: 5 A per group (on‑board, replaceable)
Diagnostics: Blown fuse / loss of field power
Fault LED: Red “F” (fuse/field power fault)
3. I/O & LED Indicators (Front)
OUT0 … OUT15 (Green LEDs) – Individual output status (ON = lit)
ACTIVE (Green LED) – Bus communication OK
F (Red LED) – Fault (blown fuse / field power loss)
4. Environmental Specifications (Coating Enhanced)
Operating Temperature: 0 °C … +60 °C
Storage Temperature: −40 °C … +85 °C
Relative Humidity: 5% … 95% non‑condensing
Altitude: ≤ 2,000 m (standard); up to 5,000 m derated
ESD: 4 kV contact / 8 kV air
EMI: 10 V/m (80–2000 MHz)
Protection Class: IP20
Coating Protection: Resists moisture, dust, salt mist, and common industrial contaminants
5. Physical & Mechanical
Dimensions (W × H × D): 35 × 122 × 52 mm (1 slot)
Mounting: Any single slot, hot‑swap compatible
Wiring: Screw terminals (field side)
Output Grouping: 4 groups × 4 ch (common per group)
Field Wire Size: 0.5 … 2.5 mm² (20–14 AWG)
6. Wiring & Connection
Outputs
Common: Common per group (4 groups)
Output: Switch 85–253 V AC between common and output terminal (per channel)
Fuse: 5 A / group (internal, replaceable)
Shielding: Recommended for long cables; ground at one end only
Polarity: AC, no polarity sensitivity
7. Software Configuration
Unity Pro (recommended)
Concept v2.2+
ProWORX 32
Add 140DAO84210C (1 slot) to I/O map
Default output address: %Q0 … %Q15 (1 word)
Enable fault diagnostics (fuse/field power)
Download to CPU
8. Troubleshooting
All OUT LEDs OFF: Check backplane, module seating, or ACTIVE LED
ACTIVE OFF: Module not recognized; reseat or check backplane
F (Red) ON: Blown group fuse or loss of field power
OUT LED ON but load not energized: Check field wiring, load, or group fuse
Erratic Operation: Poor grounding, noise, or overvoltage
Coating Note: Do not apply additional conformal coating; factory coating is sufficient
9. Certifications
CE (EN 55011, EN 61131‑2)
UL 508 / CSA C22.2 No. 142
CUL, FM Class I Div 2
RoHS compliant
Coating: IPC‑CC‑830 qualified
10. Ordering Information
140DAO84210: Standard non‑coated, 16×Triac 85–253V AC, 4×4 Group, Fused / With Diagnostic (general environment)
140DAO84210C: Conformal coated, 16×Triac 85–253V AC, 4×4 Group, Fused / With Diagnostic (harsh environment)
