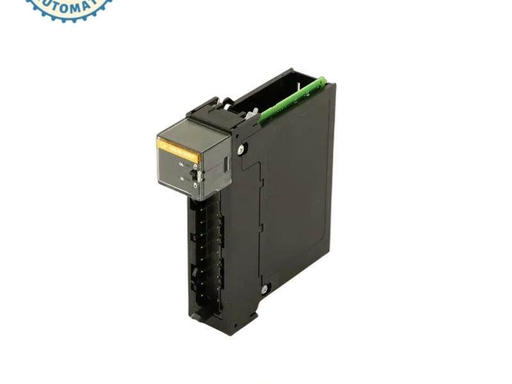

140DAM59000C

Modicon Quantum Mixed Discrete I/O Module

16 Inputs / 8 Outputs, 115 V AC, 47–63 Hz, Conformal Coated, Fused, No Diagnostic

English Specification Manual (Full Text, No Images)

1. General Description

• Inputs: 2 isolated groups × 8 channels

• Outputs: 2 groups × 4 solid‑state channels

• Manufacturer: Schneider Electric

• Series: Modicon Quantum (140 Series)

• Module Type: Mixed AC Discrete I/O Module, Conformal Coated, Fused, Non‑Diagnostic

• Total I/O: 24 points (16 In / 8 Out)

• Input Grouping: 2 isolated groups × 8 ch

• Output Grouping: 2 groups × 4 ch (solid‑state)

• Form Factor: 1 slot, hot‑swappable

• Coating: Conformal coated (IPC‑CC‑830 qualified)

• Weight: ~0.45 kg

• Key Feature: 16×115V AC In / 8×115V AC Out, 2‑way input isolation, fused outputs, conformal coated, no diagnostic

• Application: Offshore, chemical, pulp & paper, high humidity, salt mist, corrosive atmosphere, general‑purpose 115 V AC mixed I/O

2. Electrical Specifications

Inputs (16 × 115 V AC)

• Nominal Voltage: 115 V AC

• Frequency: 47–63 Hz

• Logic 1 (ON): 79–132 V AC

• Logic 0 (OFF): 0–20 V AC

• Response Time:

  • OFF → ON: 0.75–4.9 ms

  • ON → OFF: 7.3–12.3 ms

• Isolation: 1780 Vrms, 1 min (channel‑to‑bus)

• Input Current: typical 6 mA @ 115 V AC

• Absolute Max Input:

  • 200 V AC (1 cycle)

  • 156 V AC (10 s)

  • 132 V AC (continuous)

Outputs (8 × 115 V AC Solid‑State)

• Output Type: Solid‑state (triac)

• Nominal Voltage: 115 V AC (85–132 V AC operating)

• Current Rating:

  • Per channel: 4 A max

  • Per group: 8 A max

  • Per module: 8 A max

• Response Time: ≤ 0.5 ms (both directions)

• On‑State Voltage Drop: ~1.5 V

• Protection: 5 A internal fuse per output group (2 fuses total, replaceable)

• RC Filter: Yes (noise suppression)

Backplane & Power

• Backplane Current: 250 mA

• Power Dissipation: ~6.0 W max

• Internal Power: Powered by Quantum backplane

3. I/O & LED Indicators (Front)

• IN0 … IN15 (Green LEDs) – Individual input status (ON = lit)

• OUT0 … OUT7 (Green LEDs) – Individual output status (ON = lit)

• ACTIVE (Green LED) – Bus communication OK

• FUSE (Red LED) – Output fuse blown (per group)

• No F‑LED / No Diagnostic LEDs

4. Environmental Specifications (Coating Enhanced)

• Operating Temperature: −25 °C … +60 °C

• Storage Temperature: −40 °C … +85 °C

• Relative Humidity: 5% … 95% non‑condensing

• Altitude: ≤ 2,000 m (standard); up to 5,000 m derated

• ESD: 4 kV contact / 8 kV air

• EMI: 10 V/m (80–2000 MHz)

• Protection Class: IP20

• Coating Protection: Resists moisture, dust, salt mist, and common industrial contaminants

5. Physical & Mechanical

• Dimensions (W × H × D): 35 × 122 × 52 mm (1 slot)

• Mounting: Any single slot, hot‑swap compatible

• Wiring: Screw terminals (field side)

• Input Grouping: 2 isolated groups × 8 ch (1 common per group)

• Output Grouping: 2 groups × 4 ch (1 common per group)

• Field Wire Size: 0.5 … 2.5 mm²

6. Wiring & Connection

Inputs

• Common: 1 common per input group (2 commons total)

• Input: Apply 115 V AC between group common and input terminal

Outputs

• Common: 1 common per output group (2 commons total)

• Output: Switch 115 V AC from common to load

• Fuse: Internal 5 A fuse per output group (replaceable via front cover)

• Shielding: Recommended for long cables; ground at one end only

7. Software Configuration

• Unity Pro (recommended)

• Concept v2.2+

• ProWORX 32

1. Add 140DAM59000C (1 slot) to I/O map

2. Default input address: %I0 … %I15 (1 word)

3. Default output address: %Q0 … %Q7 (1 word)

4. Set output filter (optional)

5. Download to CPU

8. Troubleshooting

• All IN LEDs OFF: Check 115 V AC supply and input group common wiring

• ACTIVE OFF: Module not recognized; reseat or check backplane

• OUT LEDs ON but no load power: Check output common, wiring, or blown group fuse

• FUSE LED ON: Replace internal 5 A fuse for affected output group

• Erratic Inputs: Poor grounding, noise, or loose terminals

• Coating Note: Do not apply additional conformal coating; factory coating is sufficient

9. Certifications

• CE (EN 55011, EN 61131‑2)

• UL 508 / CSA C22.2 No. 142

• CUL, FM Class I Div 2

• RoHS compliant

• Coating: IPC‑CC‑830 qualified

10. Ordering Information

• 140DAM59000: Standard non‑coated, Fused / Non‑Diagnostic (general environment)

• 140DAM59000C: Conformal coated, Fused / Non‑Diagnostic (harsh environment)
