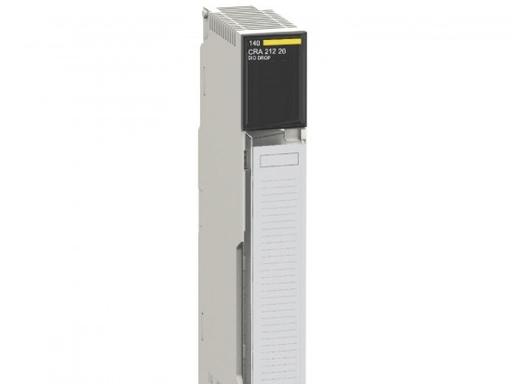

140CRA21220C

Modicon Quantum DIO Drop Interface Module

24 VDC, 2 Redundant Ports, Conformal Coated

English User Manual / Datasheet (Full Version)

1. General Description

• C suffix: Conformal coating for humid, dusty, corrosive environments (coated PCB).

• Function: Connects Quantum backplane to remote DIO stations via serial link; supports redundant ring communication.

• Key Difference from 140CRA21220: Conformal coated (harsh environment version).

• Key Difference from 140CRA21210C: 24 VDC (not AC) + 2 DIO ports (not 1).

2. Electrical Specifications (DC Power)

• Rated Voltage: 24 VDC

• Operating Range: 20 … 30 VDC

• Input Current (max): 1.6 A @ 24 VDC

• Inrush Current: 30 A @ 24 VDC

• Power Rating: 50 VA

• Power Dissipation: ~11 W

• Backplane Output: 5.1 VDC / 3 A nominal

• Min. Load Current: 0 A

• Fuse Rating (Recommended): 2.5 A

• Protection:

  • Short‑circuit protection

  • Output overvoltage protection

• Buffer Time: ≤ 1 ms

3. I/O Capacity

• Input Words: 30

• Output Words: 32

• Isolation Voltage: 500 VDC (channel‑to‑backplane)

4. Communication

• Protocol: Modbus‑compatible DIO (Distributed I/O)

• Ports: 2 × redundant DIO ports (7‑pole terminal blocks)

• Topology: Point‑to‑point / multidrop / redundant ring (dual‑port)

• Cable: Shielded twisted pair

• Termination: Software‑selectable TERM (per port)

5. Environmental (Coated Version Enhanced)

• Operating Temperature: 0 °C … +60 °C

• Storage Temperature: −40 °C … +85 °C

• Relative Humidity: 5% … 95% non‑condensing

• Altitude: ≤ 5,000 m

• Shock/Vibration: Industrial standard (15 g, 11 ms, 3 shocks/axis)

• ESD Immunity: 4 kV contact / 8 kV air

• EM Field Immunity: 10 V/m (80–2000 MHz)

• Conformal Coating: Yes (140CRA21220C only) – protection against moisture, dust, chemicals, and corrosion.

6. Physical & Mechanical

• Dimensions: Standard Quantum single slot (105 × 180 × 265 mm)

• Mounting: Quantum backplane (hot‑swap capable)

• LED Indicators:

  • PWR: Green = Power OK

  • COM: Green blinking = Communication active

  • ERR: Red = Fault (comm loss / config error)

  • PORT1 / PORT2: Green = Link up (per port)

7. Installation & Wiring

7.1 Mounting

1. Power OFF the Quantum rack.

2. Insert module into any single‑slot position.

3. Latch and tighten screw.

7.2 DC Power Wiring (24 VDC)

• +24 V: Positive

• 0 V: Ground

• Wire size: 0.75–2.5 mm²

• Warning: Verify polarity and voltage before powering ON.

7.3 DIO Communication Wiring (Dual Ports)

• Connect shielded twisted pair to PORT1 and PORT2 (7‑pole terminal blocks).

• Shield: Ground at one end only (PE).

• Redundant mode: Dual‑port ring for fault‑tolerant communication.

8. Configuration (Unity Pro)

1. Add 140CRA21220C in hardware catalog.

2. Set DIO address (1–63).

3. Enable redundancy (dual‑port ring).

4. Assign I/O map: 30 In / 32 Out words.

5. Download configuration to PLC.

9. Operation & LED Status

• PWR ON: Module powered.

• COM Blinking: Data exchange active.

• ERR Steady Red: Communication loss / remote drop fault.

• ERR Flashing: Address conflict / config mismatch.

• PORT1 / PORT2 Green: Link up on respective port.

10. Certifications

• CE

• UL 508

• CSA C22.2 No.142 / Class 1 Div 2

• C‑Tick, DNV, GOST

• RoHS compliant

11. Ordering Information

• 140CRA21220: Standard (non‑coated), 24 VDC, 2 redundant DIO ports

• 140CRA21220C: Conformal coated (harsh environment), 24 VDC, 2 redundant DIO ports
