140CRA21210C

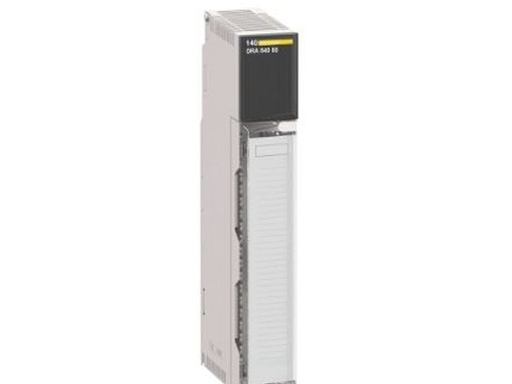

Modicon Quantum DIO Drop Interface Module

115/230 VAC, 1 Redundant Port, Conformal Coated

English User Manual / Datasheet (Full Version)

1. General Description

• C suffix: Conformal coating for humid, dusty, corrosive environments (coated PCB).

• Function: Connects Quantum backplane to remote DIO stations via serial link; supports redundant ring communication.

• Key Difference from 140CRA21210: Conformal coated (harsh environment version).

2. Electrical Specifications (AC Power)

• Rated Voltage: 115 / 230 VAC (auto‑sensing)

• Operating Range: 85 … 276 VAC

• Frequency: 47 … 63 Hz

• Input Current (max):

  • 0.2 A @ 115 VAC

  • 0.4 A @ 230 VAC

• Inrush Current:

  • 10 A @ 115 VAC

  • 20 A @ 230 VAC

• Power Rating: 50 VA

• Power Dissipation: ~11 W

• Backplane Output: 5.1 VDC / 3 A nominal

• Min. Load Current: 0 A

• Fuse Rating (Recommended): 1.5 A

• Protection:

  • Short‑circuit protection

  • Output overvoltage protection

• Buffer Time: ≤ 1 ms

3. I/O Capacity

• Input Words: 30

• Output Words: 32

• Isolation Voltage: 500 VDC (channel‑to‑backplane)

4. Communication

• Protocol: Modbus‑compatible DIO (Distributed I/O)

• Ports: 1 × redundant DIO port (7‑pole terminal block)

• Topology: Point‑to‑point / multidrop / redundant ring

• Cable: Shielded twisted pair

• Termination: Software‑selectable TERM

5. Environmental (Coated Version Enhanced)

• Operating Temperature: 0 °C … +60 °C

• Storage Temperature: −40 °C … +85 °C

• Relative Humidity: 5% … 95% non‑condensing

• Altitude: ≤ 5,000 m

• Shock/Vibration: Industrial standard

• ESD Immunity: 4 kV contact / 8 kV air

• EM Field Immunity: 10 V/m (80–2000 MHz)

• Conformal Coating: Yes (140CRA21210C only) – protection against moisture, dust, chemicals, and corrosion.

6. Physical & Mechanical

• Dimensions: Standard Quantum single slot

• Mounting: Quantum backplane (hot‑swap capable)

• LED Indicators:

  • PWR: Green = Power OK

  • COM: Green blinking = Communication active

  • ERR: Red = Fault (comm loss / config error)

  • PORT: Green = Link up

7. Installation & Wiring

7.1 Mounting

1. Power OFF the Quantum rack.

2. Insert module into any single‑slot position.

3. Latch and tighten screw.

7.2 AC Power Wiring (115/230 VAC)

• L: Line (Live)

• N: Neutral

• PE: Protective Earth

• Wire size: 0.75–2.5 mm²

• Warning: Verify voltage before powering ON.

7.3 DIO Communication Wiring

• Connect shielded twisted pair to the DIO port (7‑pole terminal block).

• Shield: Ground at one end only (PE).

• Redundant mode: Single port with redundant ring topology.

8. Configuration (Unity Pro)

1. Add 140CRA21210C in hardware catalog.

2. Set DIO address (1–63).

3. Enable redundancy (single port ring).

4. Assign I/O map: 30 In / 32 Out words.

5. Download configuration to PLC.

9. Operation & LED Status

• PWR ON: Module powered.

• COM Blinking: Data exchange active.

• ERR Steady Red: Communication loss / remote drop fault.

• ERR Flashing: Address conflict / config mismatch.

• PORT Green: Link up.

10. Certifications

• CE

• UL 508

• CSA C22.2 No.142 / Class 1 Div 2

• C‑Tick, DNV, GOST

• RoHS compliant

11. Ordering Information

• 140CRA21210: Standard (non‑coated), 115/230 VAC, 1 redundant DIO port

• 140CRA21210C: Conformal coated (harsh environment), 115/230 VAC, 1 redundant DIO port
