General Information

• Manufacturer: Schneider Electric

• Model: 140CHS32000

• Series: Modicon Quantum PLC

• Type: Hot Standby Coaxial Splitter Kit (for coax-based redundancy)

• Function: Coaxial signal splitting kit for Quantum hot‑standby systems (copper media instead of fiber)

Description

Specifications

• Kit Type: Coaxial Splitter Kit (hot standby)

• Media: 50Ω coaxial cable (520402000 trunk cable)

• Connector: BNC coaxial

• Frequency Range: 0–100 MHz

• Insertion Loss: < 3 dB (typical)

• Operating Voltage: 5 V DC (nominal)

• Mounting: DIN rail or panel mount

• Operating Temp: −40 °C to +85 °C

• Weight: ~0.5 kg

• Compatibility: Quantum hot‑standby CPUs; replaces fiber sync kits (CHS11000/21000 series)

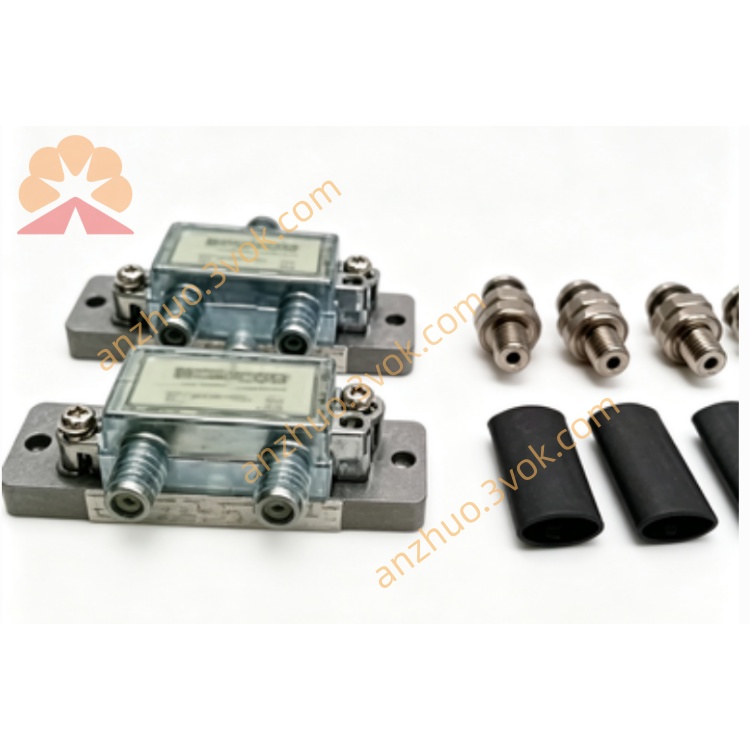

Kit Contents

• 2 × Splitter boxes (MA0186100)

• 4 × Line impedances (520720000)

• Mounting hardware

• Installation manual

Key Features

1. Copper‑Based Redundancy: Uses coaxial cable instead of fiber for CPU sync

2. High‑Frequency Performance: 0–100 MHz bandwidth, low insertion loss

3. Noise Immunity: BNC/coax design resists EMI/RFI in harsh environments

4. Bumpless Switchover: Works with Quantum hot‑standby CPUs for fast failover

5. Easy Installation: DIN rail/panel mount, pre‑configured splitters

Applications

• Quantum redundant systems where fiber is unavailable or not preferred

• Industrial environments with high electrical noise (EMI/RFI)

• Retrofits of older coaxial‑based redundant PLC systems

Differences from Fiber Kits

• 140CHS11000/21000: Fiber‑optic sync (10 Mbps, 3 m cable)

• 140CHS32000: Coaxial sync (BNC, 50Ω trunk cable, high frequency)
