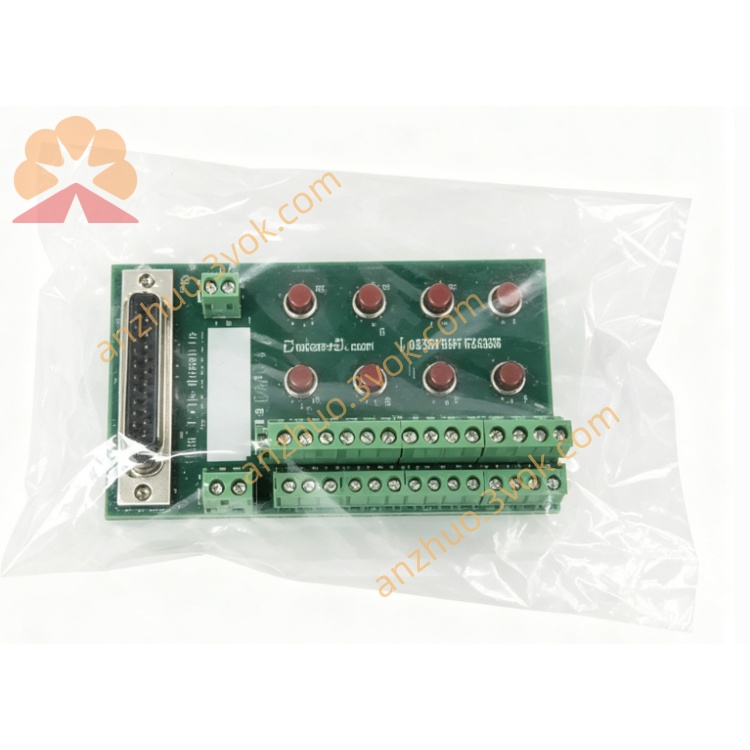

140CFH00800
Modicon Quantum CableFast Terminal Block
General Information
Manufacturer: Schneider Electric
Model: 140CFH00800
Product Type: 8 Channels Analog Signal Terminal Block
Applicable System: Modicon Quantum 140 Series PLC
Product Description
140CFH00800 is DIN rail mounted dedicated analog wiring terminal block. It connects Quantum analog modules by D-Sub 50 cable, providing easy field wiring for 8-channel analog signals. It adopts optimized signal layout, ensures low interference and stable analog signal transmission, ideal for precision industrial signal collection and control.
Main Technical Specifications
Channel Quantity: 8 analog signal points
Connection Interface: D-Sub 50 pin connector
Field Terminal: Captive screw terminal
Supported Signal: Standard voltage and current analog signals
Mounting Method: Standard 35mm DIN rail installation
Operating Temperature: 0℃ ~ +60℃
Storage Temperature: -40℃ ~ +85℃
Protection Class: IP20
Suitable Wire Range: 0.2~4mm²
Built-in signal isolation design
Core Features
Mini 8-channel design, save more cabinet space
Professional analog signal layout, effectively reduce signal drift
Firm anti-vibration terminal, reliable long-term connection
Simple structure, easy installation, wiring and maintenance
Excellent shielding performance, strong anti-electromagnetic interference
Perfect matching with all kinds of 8-point Quantum analog modules
Application Scope
Mainly used together with 8-channel analog input, output and temperature modules, applied in electric power, chemical industry, water treatment, machinery manufacturing and other fields for temperature, pressure, flow and liquid level signal connection.
Compatibility
Compatible with Modicon Quantum 140 series 8-channel analog modules, including universal analog module, thermal resistance and thermocouple temperature modules, not suitable for digital I/O modules.
